Modular home MG2
The MG2 modular home is a small house in modern architecture, composed of two modules joined into a single building — each module is delivered to the plot fully finished and assembly into a single whole takes one day.
We offer MG2 in 14 variants of different sizes — from the basic one with an area over 30 m² and dimensions of 6.6 × 5.1 m up to the largest with a total area of 63.5 m² and dimensions of 10.4 × 6.7 m. We supply the house in a year-round (energy-efficient, fully insulated) and a summer variant.
Price on request
Exterior

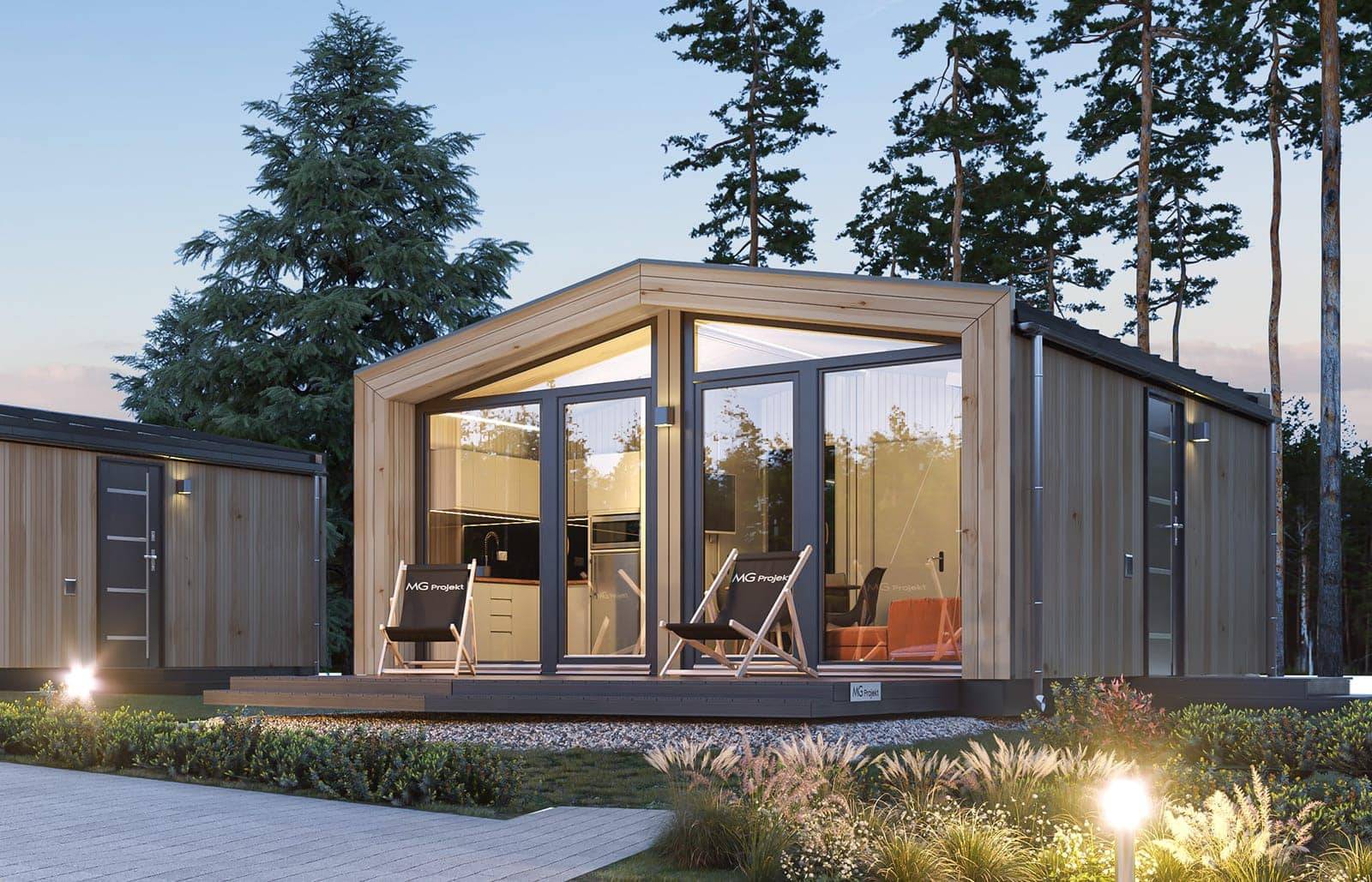

The exterior walls of MG2 are clad in natural wood; alternatively a combination of wood and standing-seam sheet metal, Vox panels (Vifront/Kerrafront) or Vinylit. The roof is of standing-seam sheet metal. The colour scheme is freely changeable (e.g. natural wood, whitewashed wood, wood-graphite, black).

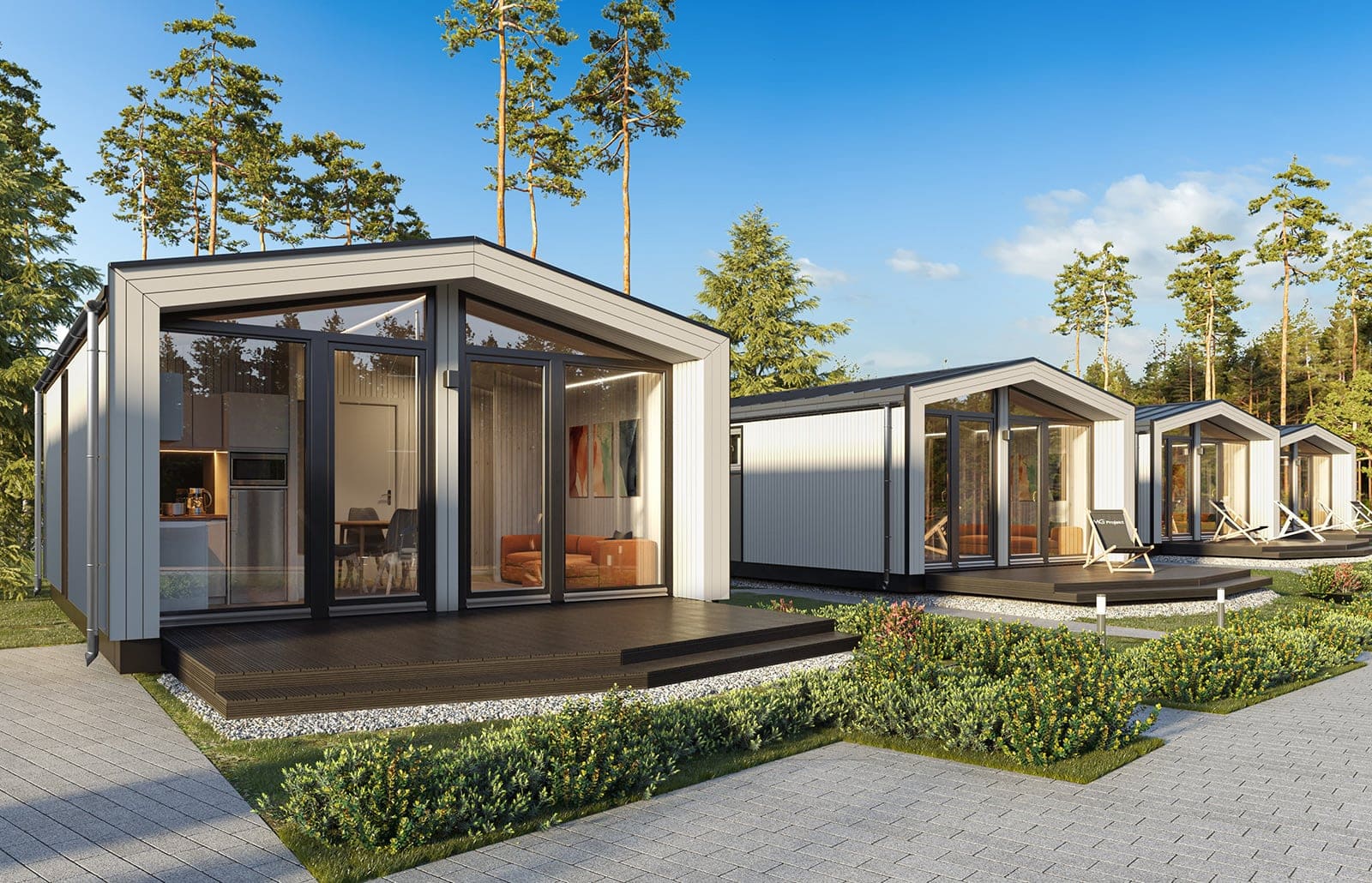

MG2 has a compact rectangular body with a slightly overhanging canopy above the glazed wall, which opens the interior onto the terrace. A possible variant is an enclosable terrace protecting the glazed wall — suitable especially for recreational houses.
Interior

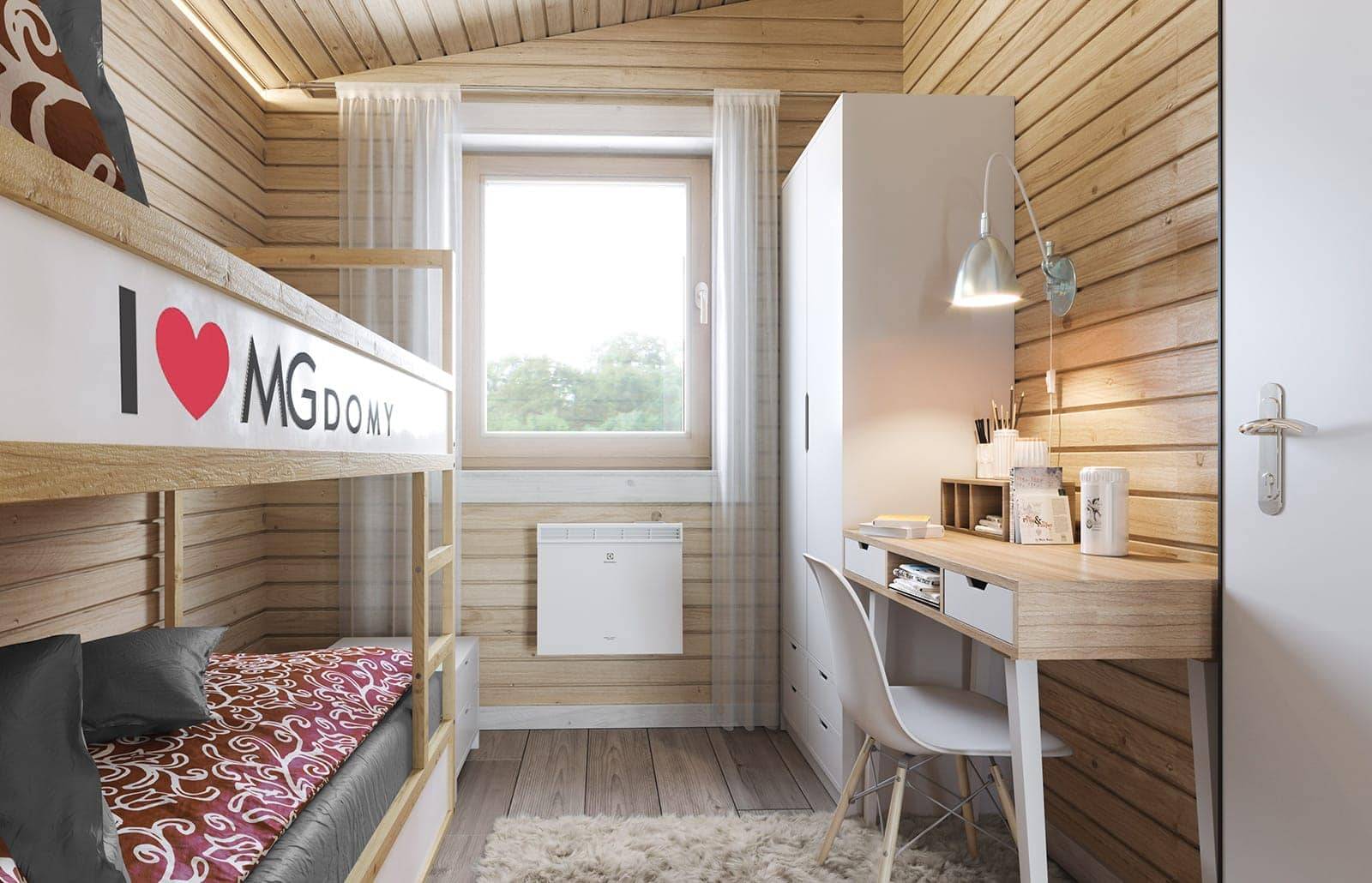

The basic version contains a living room with a kitchenette, two bedrooms and a bathroom — comfortably for 2 to 4 people. The largest variants have three bedrooms + a living room and a separate entrance hallway.

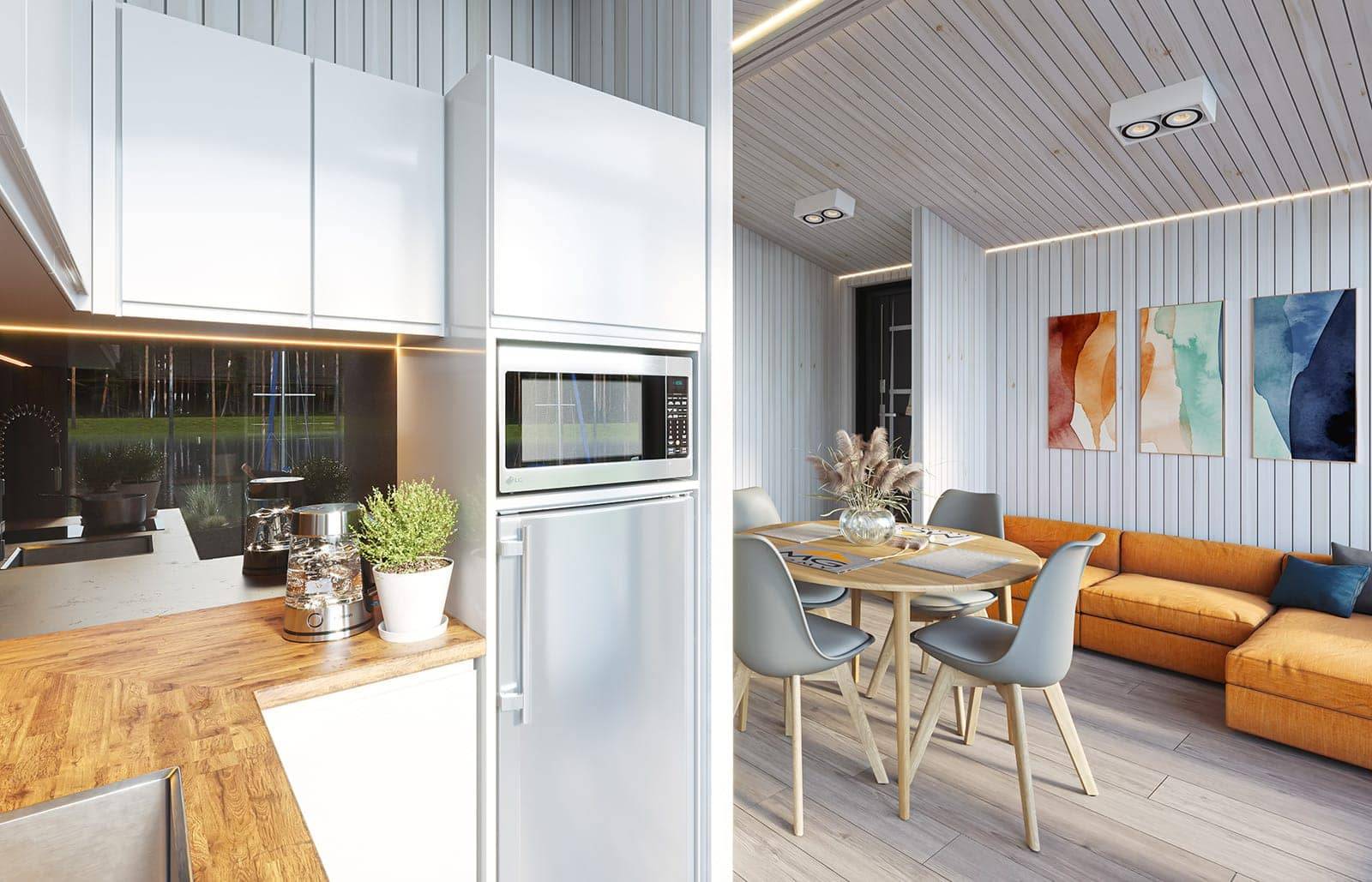

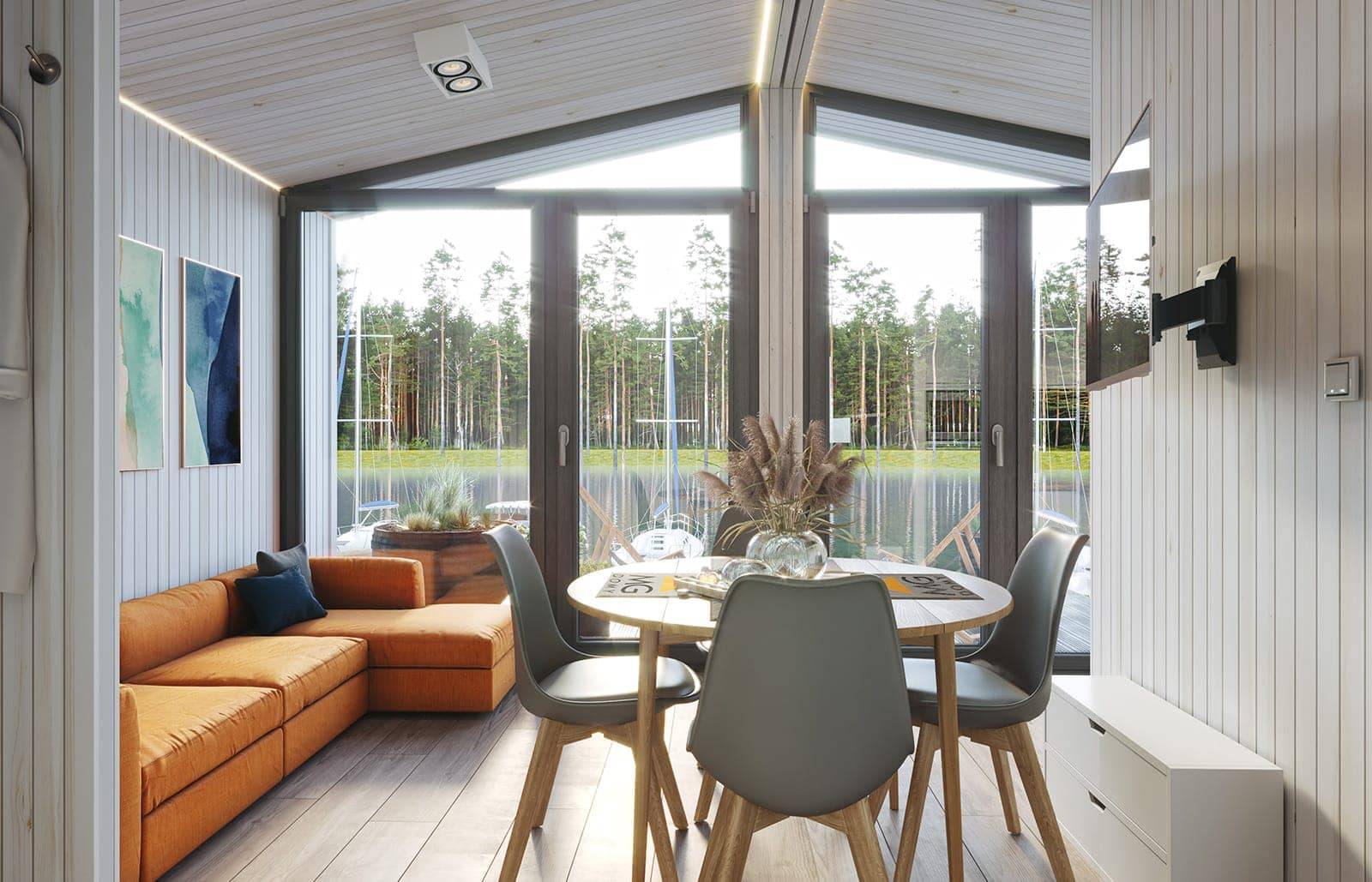

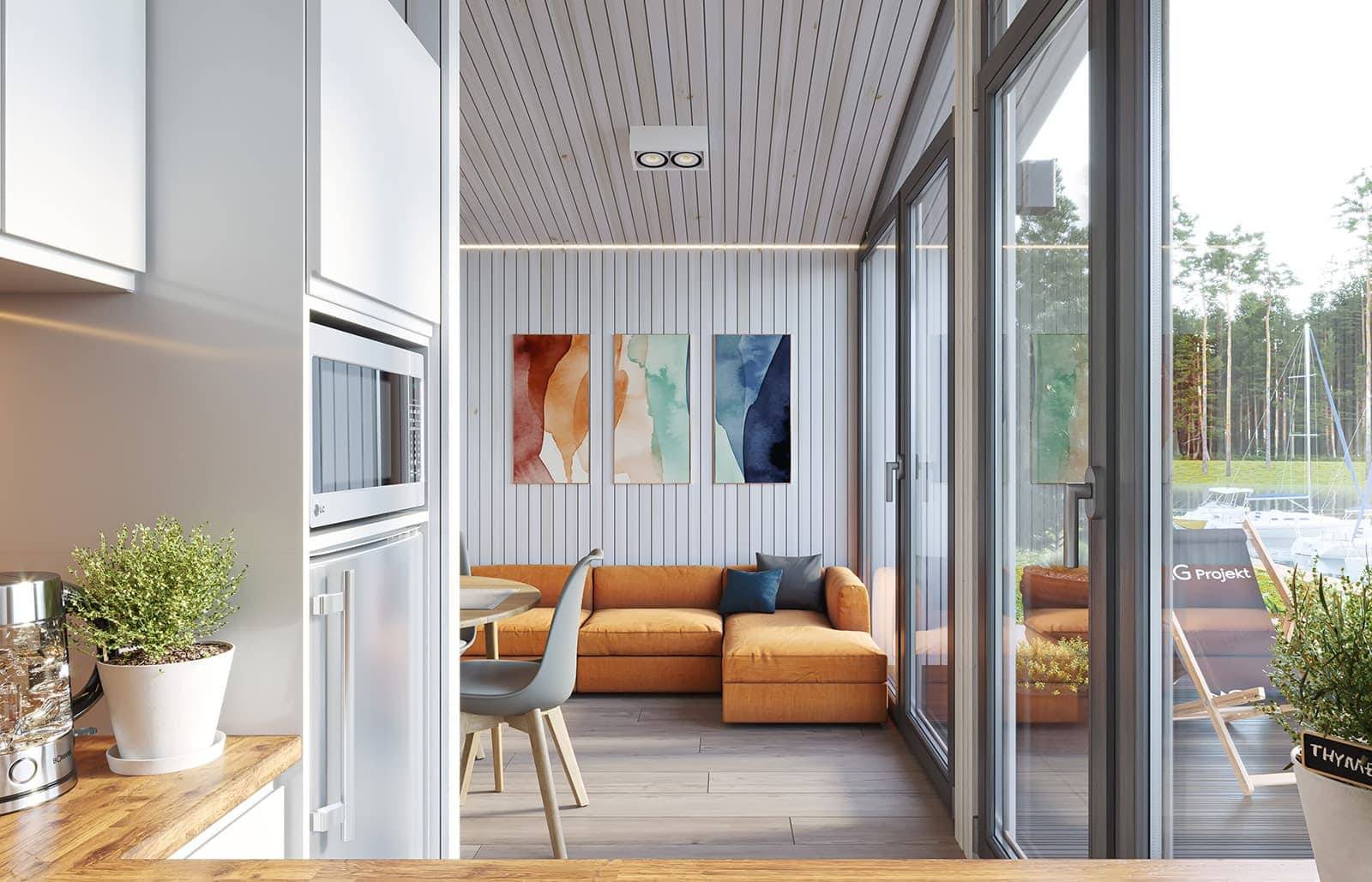

The L-shaped kitchenette has lower and upper cabinets with a fridge, a hob and a sink. The large glazed living-room wall opens the house onto the terrace and garden and brings plenty of light inside. The interior is fully finished; on request fully furnished.
Specifications
| External dimensions | 5.1 × 6.6 m (basic) |
|---|---|
| Built-up area | 33.76 m² |
| Total area | 30.65 m² |
| Usable area | 25.25 m² |
| Volume gross / net | 93 m³ / 66 m³ |
| Persons / beds | 4 |
| Height to ridge (with frame) | 2.99 / 3.35 m |
| Room height | 2.3 – 2.77 m |
| Roof pitch | 12° |
| House weight | 8 tonnes |
| Structure | steel-timber (C24 timber) |

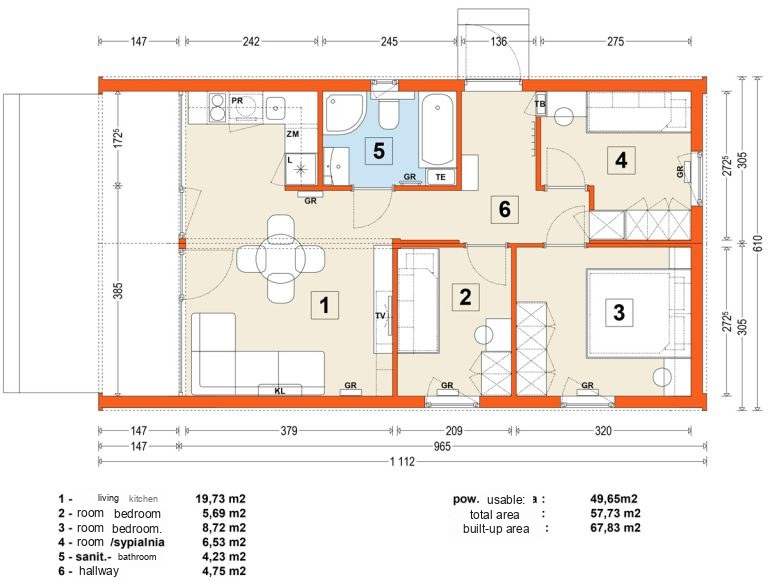

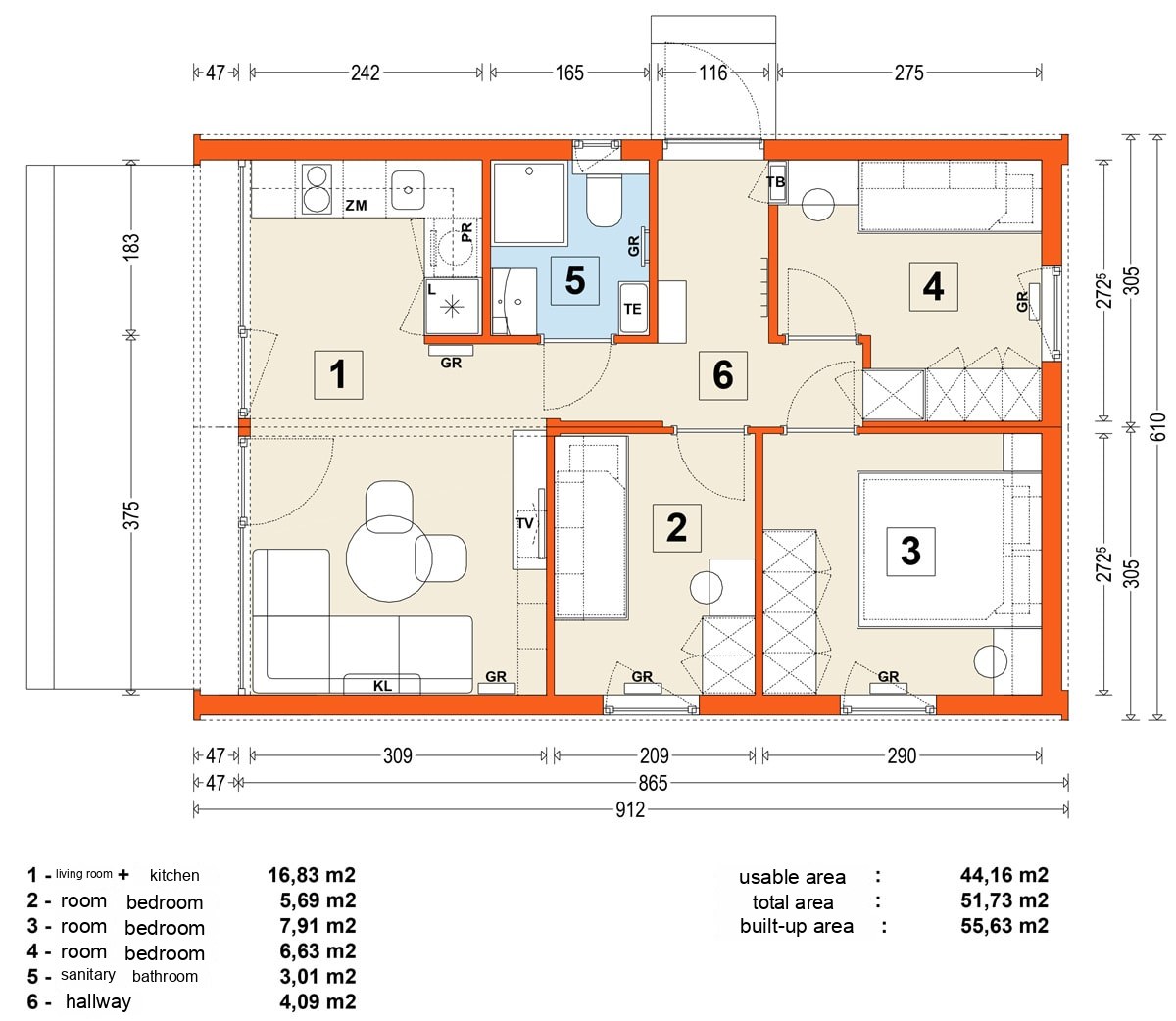

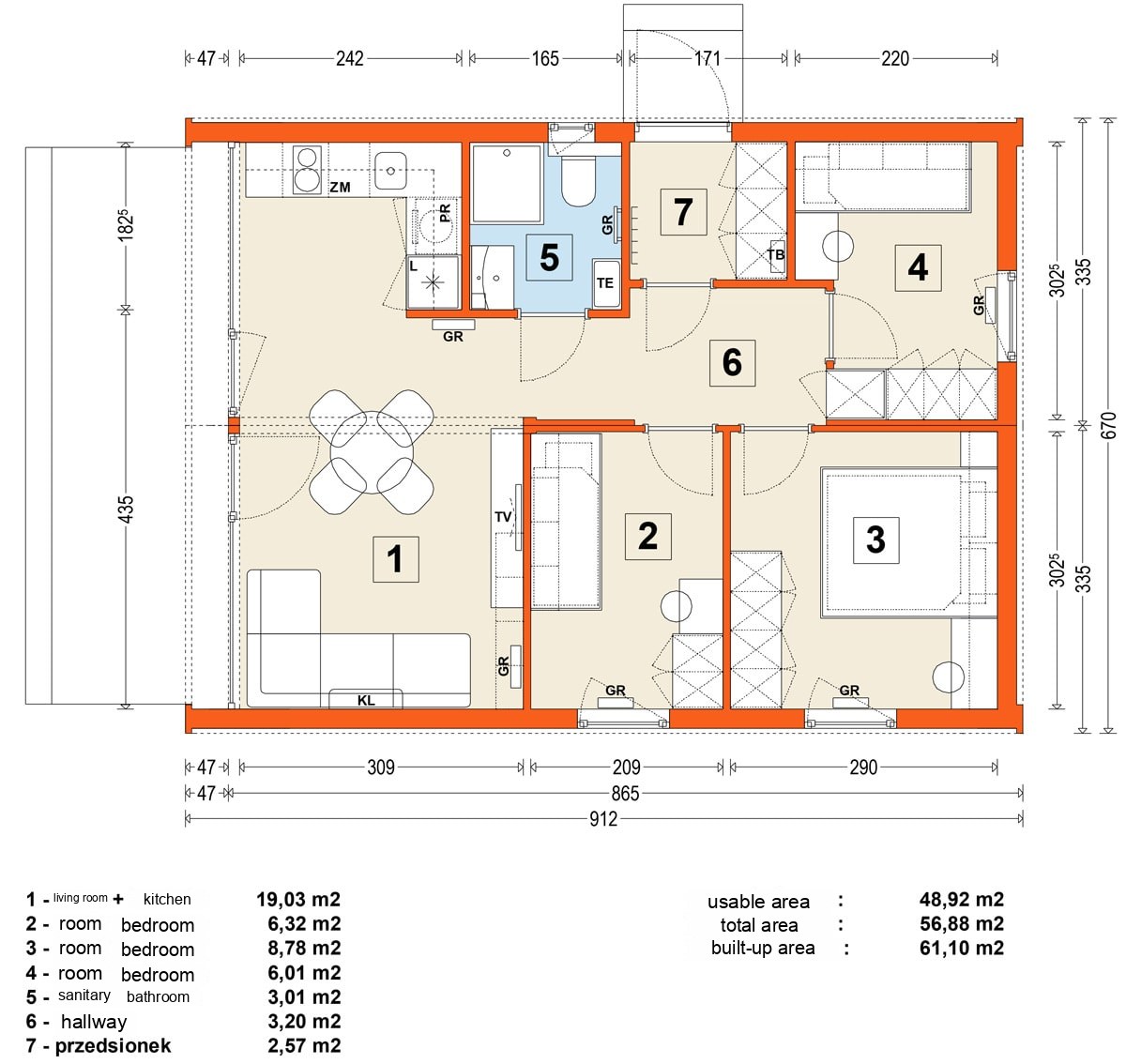

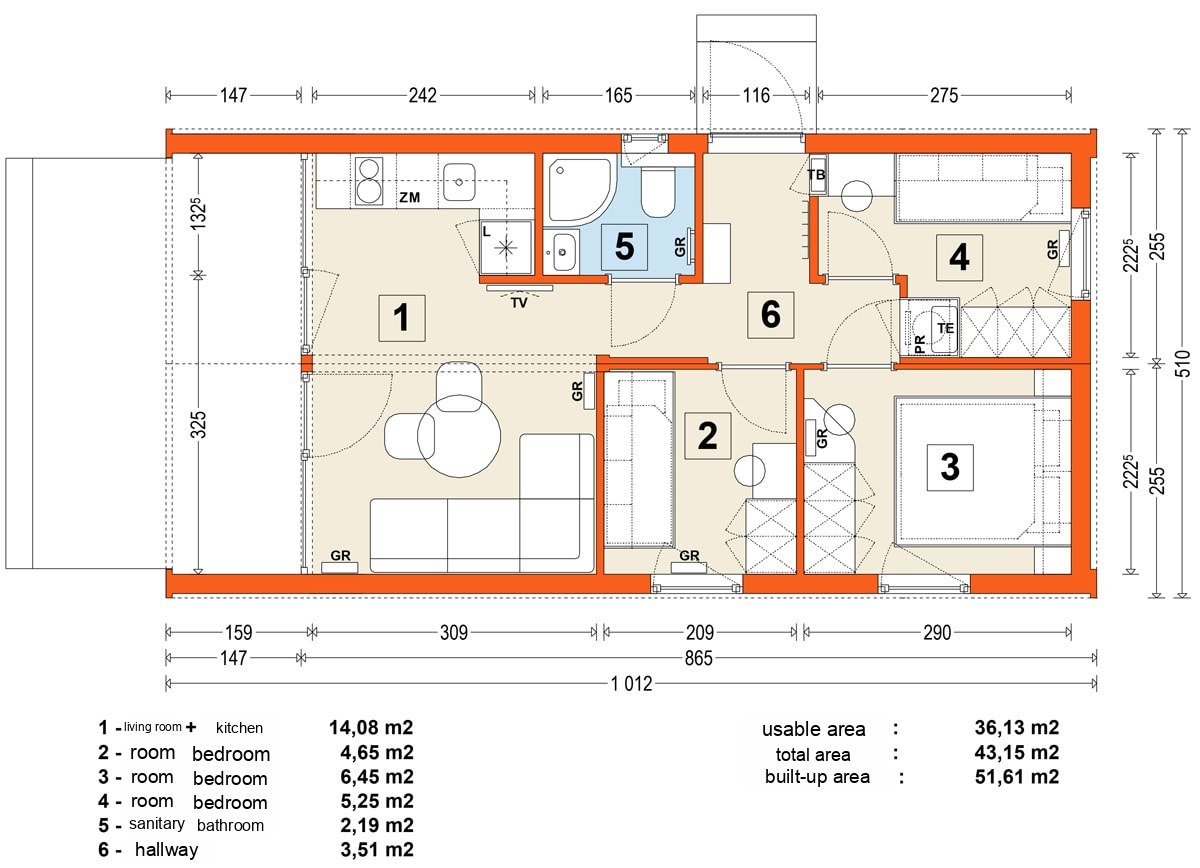

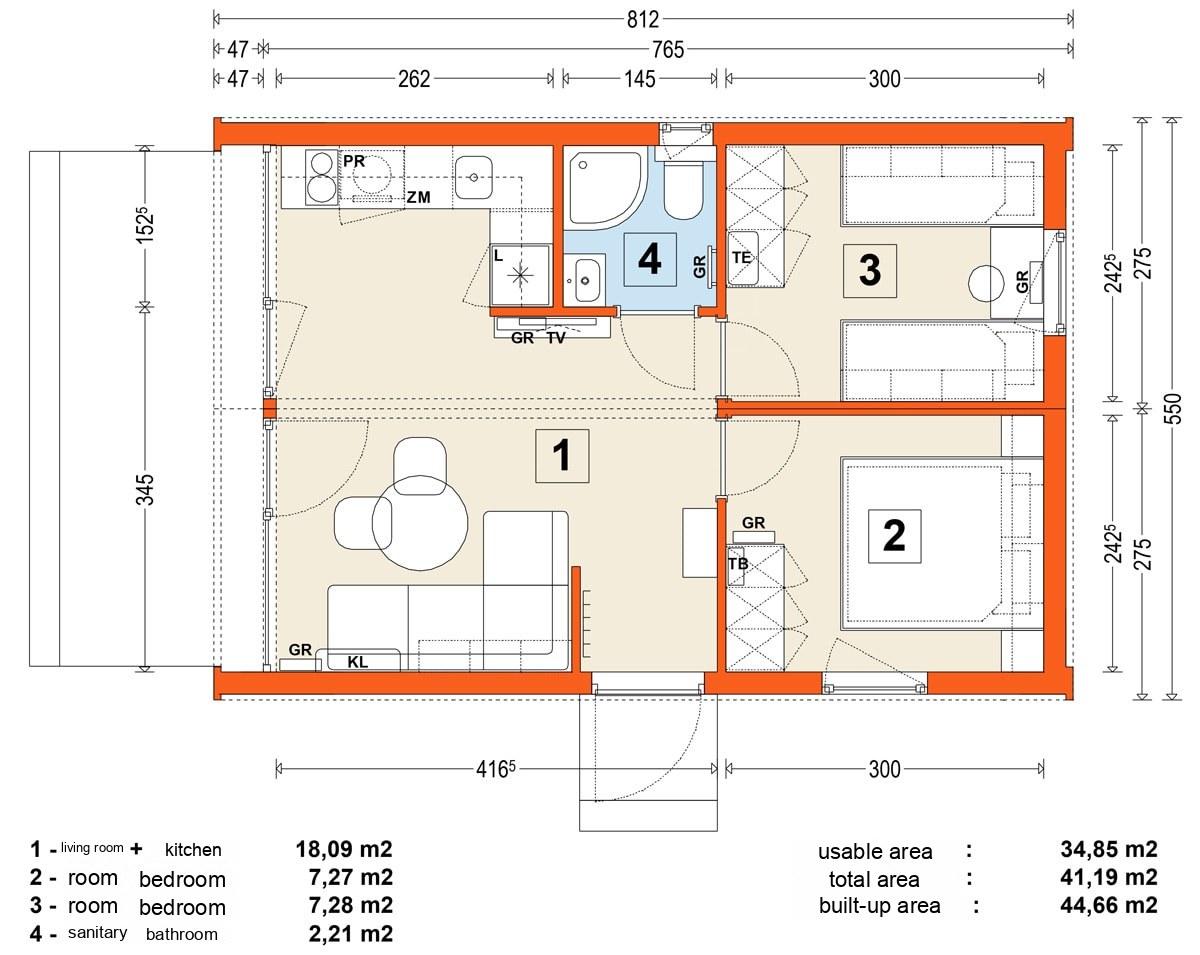

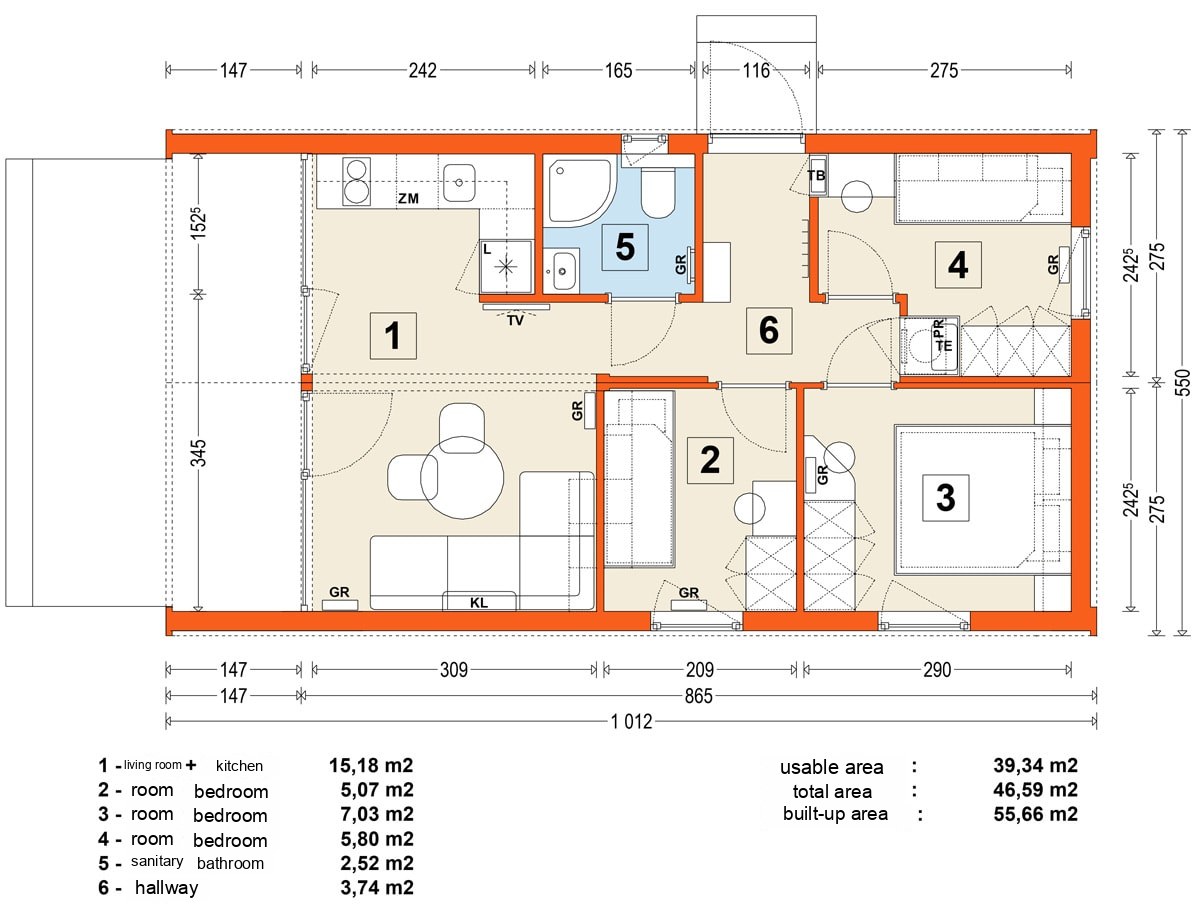

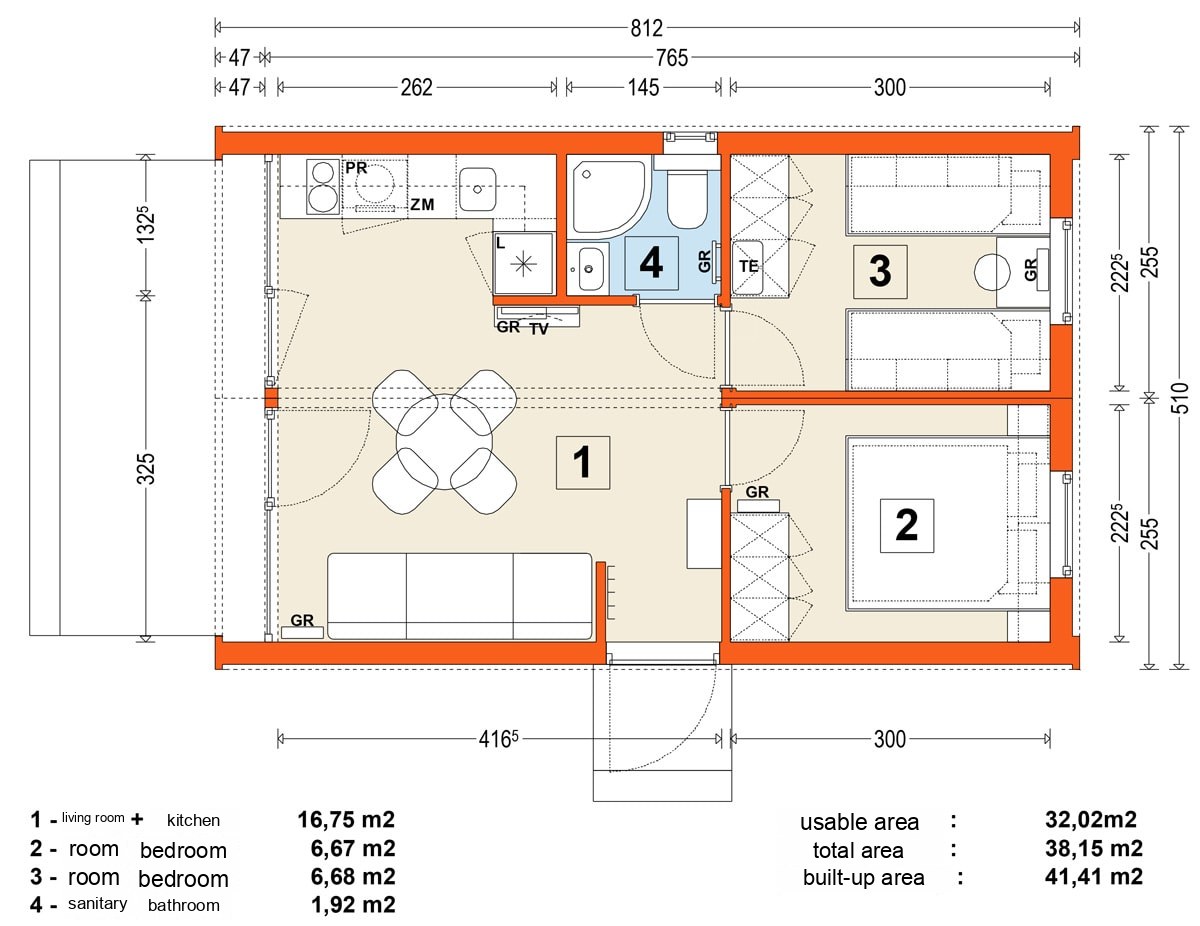

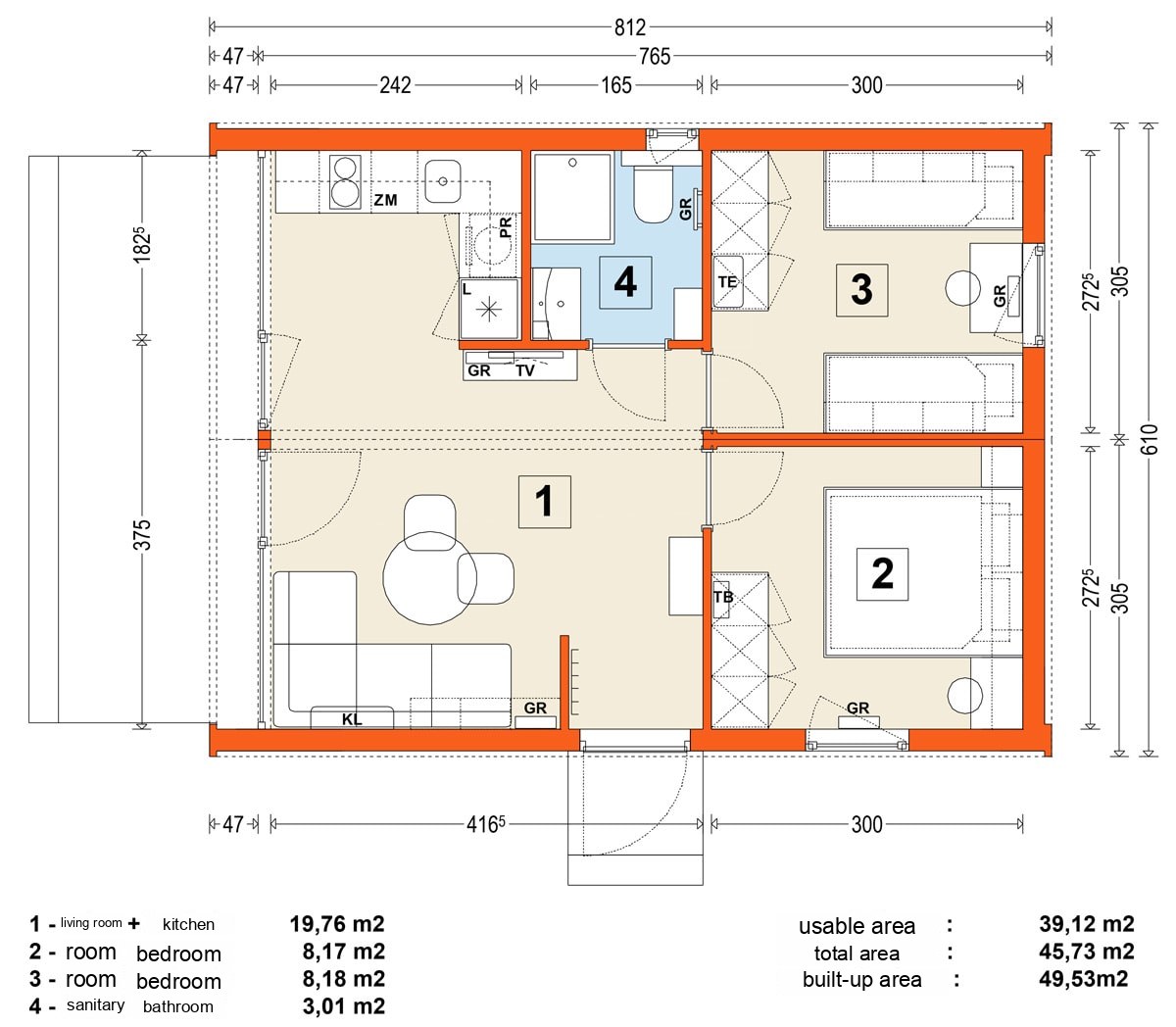

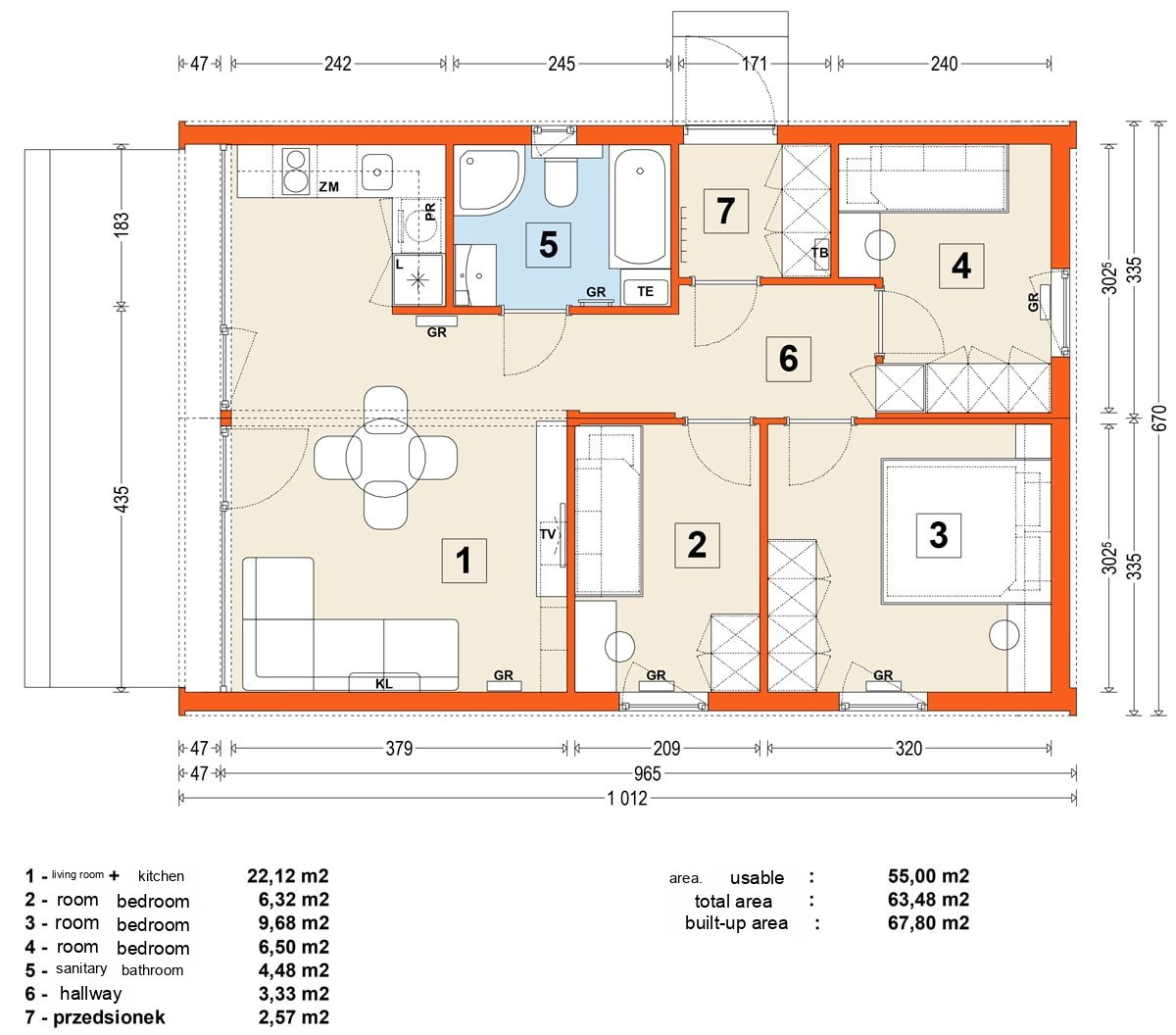

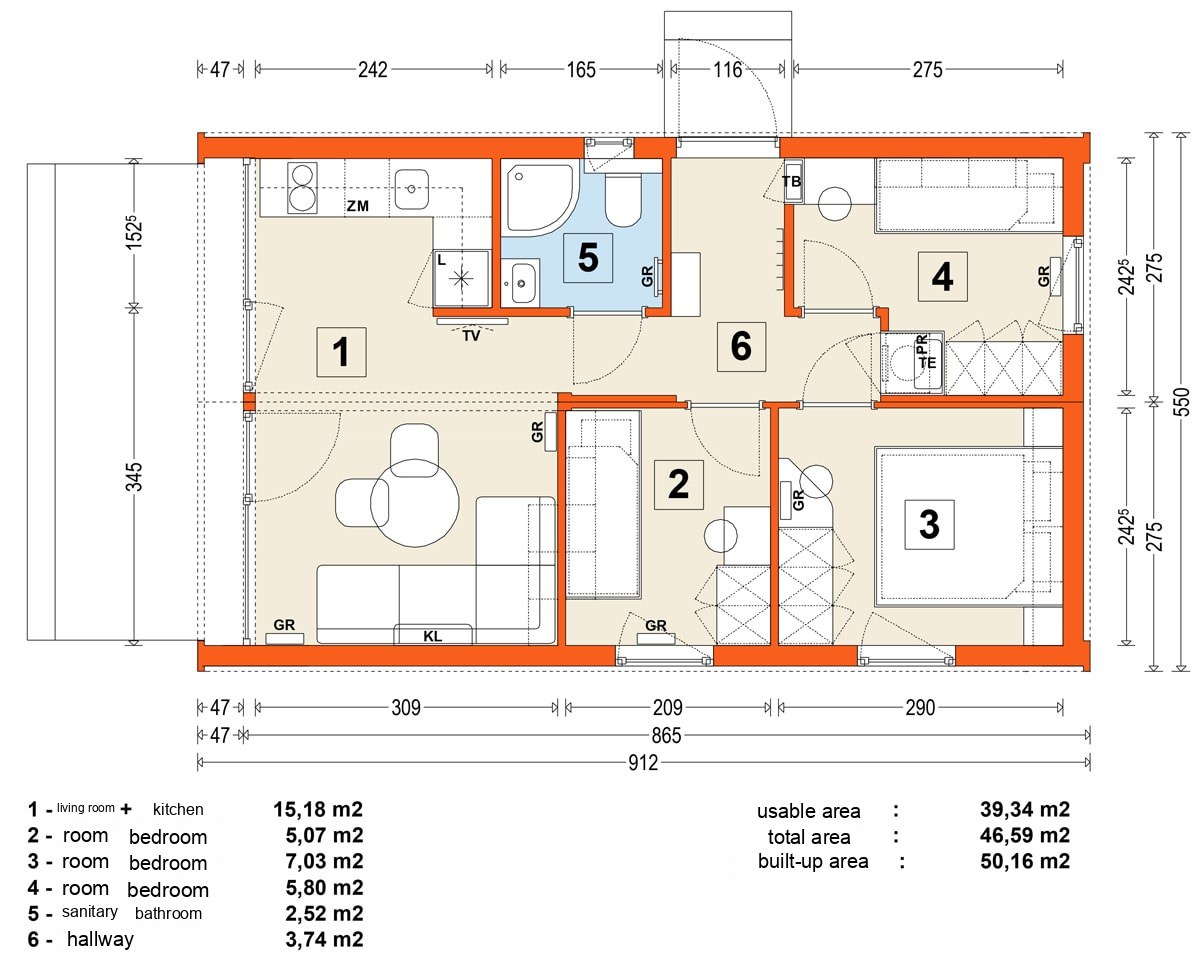

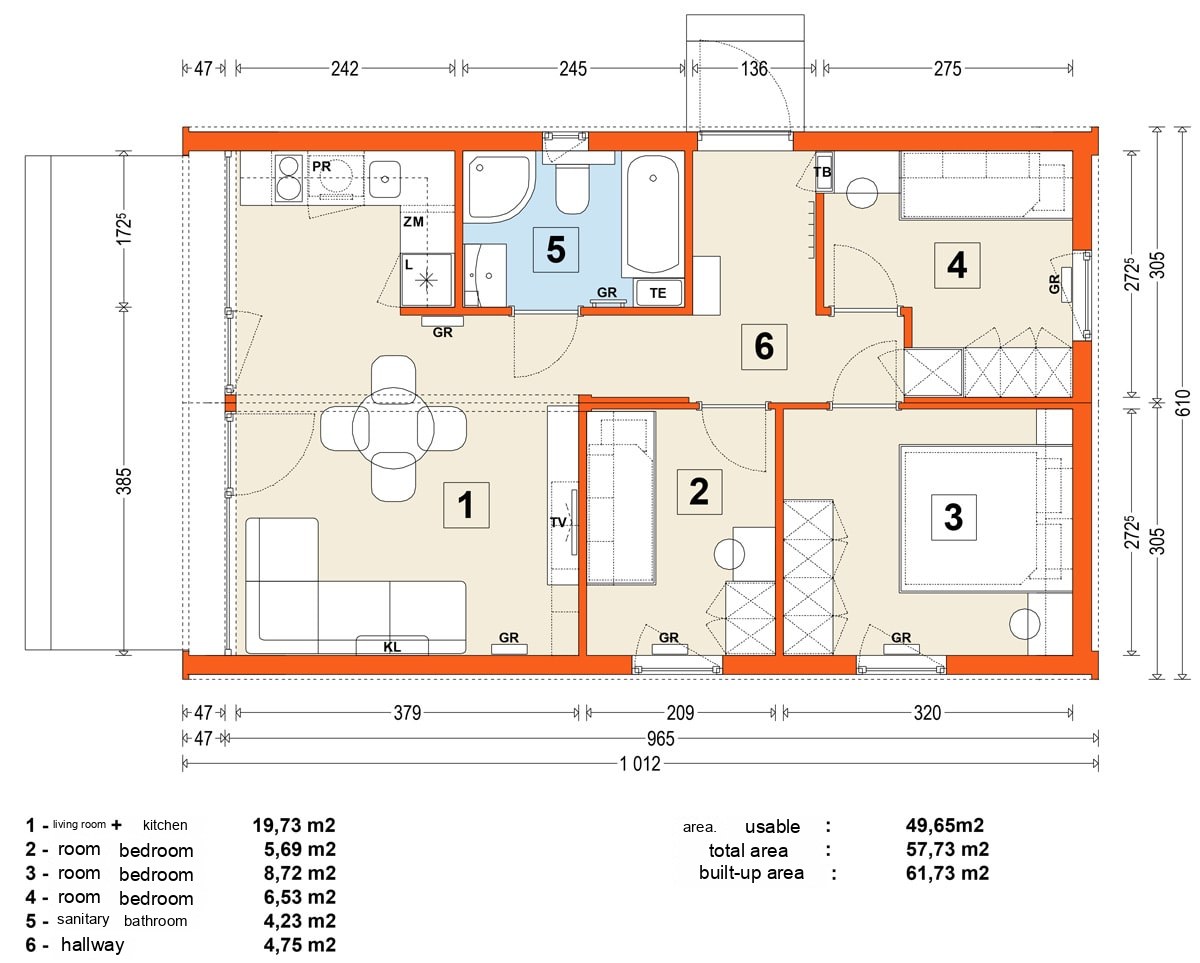

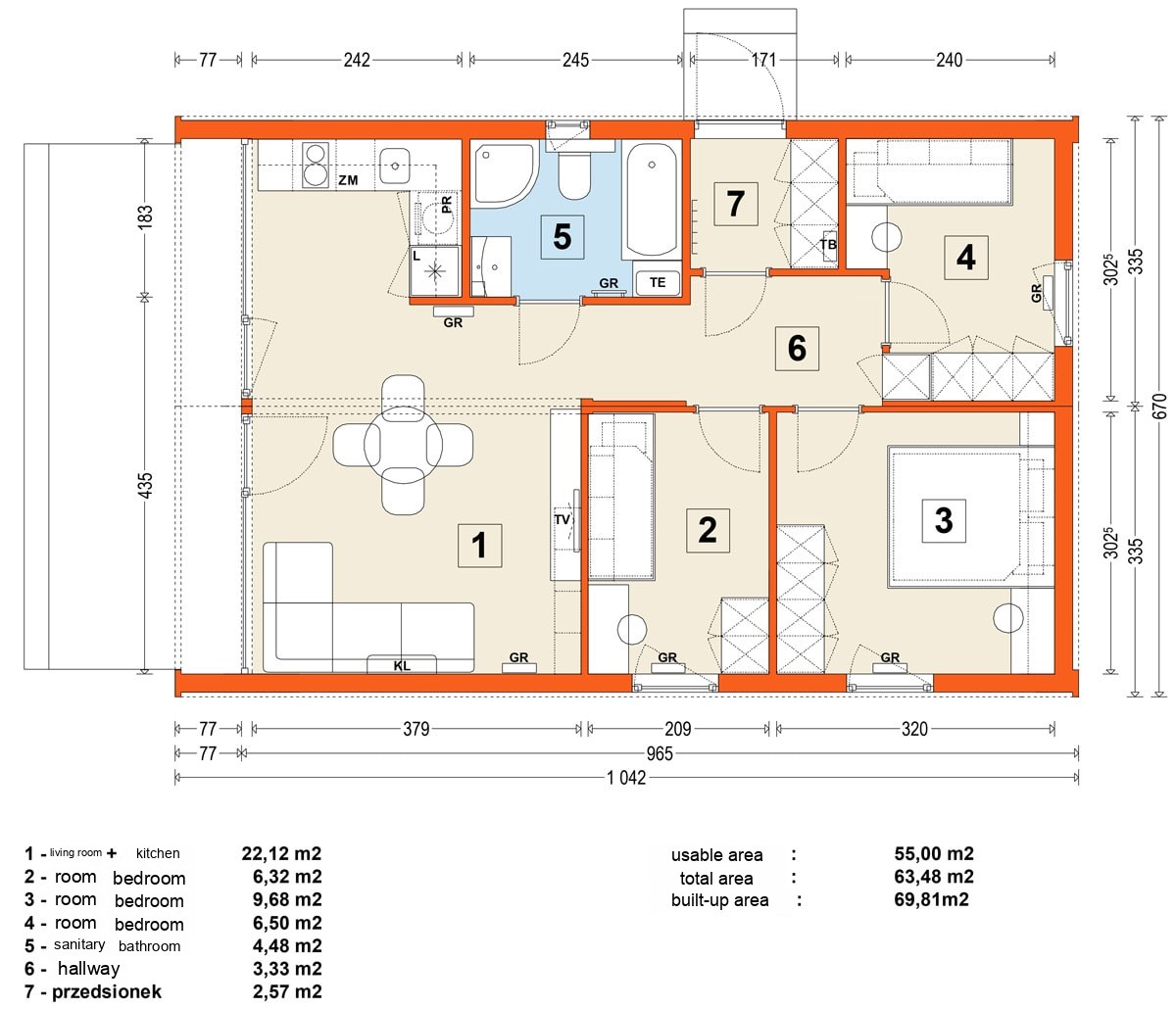

Floor plans
We enter the house through a wide door in the side wall via a separate hallway into the day zone — at the entrance there are hooks and a shoe cabinet. The living room has a comfortable sofa, a dining table and a TV wall. In larger variants the interior is extended by additional bedrooms and a hallway.
Equipment variants
We offer our mobile homes in three finish standards:
- Basic — the base variant with complete utilities, but no furniture.
- Comfort — a variant with a fitted bathroom and kitchen (kitchen units, sanitary ware, appliances), but no furniture in the rooms.
- Premium — a completely finished and furnished house — full furniture and appliances in every room.
BASIC
Basic house finish and equipment standard
- Steel-and-timber house structure — a welded, hot-dip galvanised steel floor frame; floor, walls and roof from kiln-dried Scandinavian C24 timber
- Two-layer MFP 22+15 mm tongue-and-groove floor
- Axle(s) and wheels for transport
- Waterproofing, vapour barrier and vapour-permeable membrane in the walls, roof and floor
- Thermal insulation: summer variant — 15 cm of mineral wool in floor and roof, 10 cm in walls; year-round variant — 20 cm in floor, 20/25 cm in roof, 20 cm in walls
- Roofing from metal tiles or standing-seam sheet (depending on model), sheet-metal trim from plastic-coated sheet, PVC gutters and downpipes
- Double-glazed PVC windows (optionally triple), 6-chamber frames, with micro-ventilation for air circulation
- Sliding terrace door with a mobile post
- Entrance door — glazed PVC with double locking or insulated steel with double locking
- Internal window and door trims with PVC strips
- Internal MDF veneer doors with an adjustable frame
- Highly abrasion-resistant vinyl flooring — contract grade (optionally vinyl planks)
- PVC skirting boards
- Ceiling cornices from lacquered MDF or timber
- Internal wall cladding with PVC panels (optionally Strama / Forestia)
- Exterior façade Vox Vifront siding (optionally Vinylit, Vox Kerafront, Cedral, timber or sheet-metal façade)
- Electrical preparation for electric radiators and an electric water heater
- Compact-type toilet (optionally wall-hung — Geberit), shower tray, connections for sanitary ware and fittings
- Distribution board with circuit breakers
- External inlets for water, sewerage and the house's electrical supply, with preparation for draining water
- Mechanical ventilation in the bathroom and kitchen — ducting and wiring
- Internal LED lighting
- Outlets for external wall lighting
- TV antenna cable led outside the house
- Preparation for connecting a heating cable for the water pipe
COMFORT
Basic standard plus:
- Shower enclosure — size according to house model
- Washbasin with tap, lower cabinet, mirror and LED backlighting
- Extractor fan in the bathroom
- 50 l electric water heater in cabinet cladding (optionally 80/100 l)
- Electric ladder radiator / towel dryer in the bathroom
- Upper kitchen cabinets in standard veneer
- Kitchen sink with tap
- Built-in under-counter fridge with freezer
- Two-plate electric hob
- Built-in extractor hood in the upper cabinets
PREMIUM
Comfort standard plus:
- Dining table with chairs
- TV cabinet in the living room
- Bed in the master bedroom with a mattress and a storage chest for bed linen
- Beds in the children's bedroom with mattresses
- Wardrobe in the master bedroom
- Wardrobe in the children's bedroom
- Bedside tables and chairs in the bedrooms
Additional equipment
- Changing the summer variant to year-round (thicker insulation)
- Changing the façade to Vinylit, Cedral or sheet-metal panels
- Changing the internal cladding to Strama or Fibo
- Changing the floor to vinyl or timber planks (engineered board)
- Changing windows to triple glazing
- Changing heating from electric radiators to underfloor infrared film
- Fireplace with a double stainless-steel Poujoulat flue
- Upgrading kitchen / bathroom equipment: dishwasher, larger fridge, oven, larger induction hob, washing machine
- Curtain rails, curtains, pleated blinds, insect screens
- Air conditioning with a heating function (air-to-air heat pump)
- Integration of the house with a photovoltaic power plant
- Mechanical ventilation with point heat recovery
- Corner sofa set in the living room (depending on house model)
- Many more accessories can be found on the Tatradomy website
Thanks to an extensive list of optional equipment you choose and design the house yourself in comfort — picking colours, materials and solutions to your own taste. Configuring the house is a simple and pleasant process that results in a tailor-made home. Our designers and advisors will guide you through the whole process and advise you.
Construction and installations

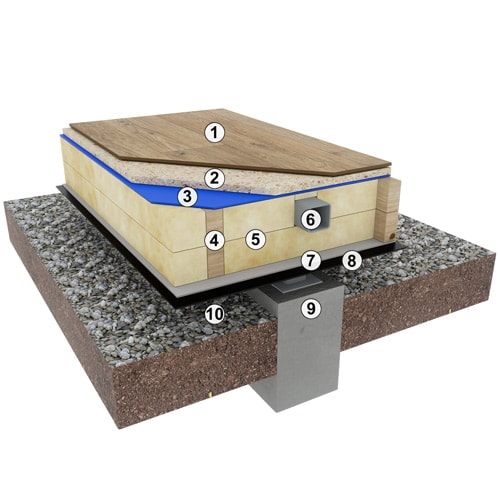

Floor construction
- Final floor: vinyl covering / vinyl panels / MDF-wood panels
- MFP structural board 22 mm + PE foil
- Wooden floor frame of C24 timber (2× 95×45 / 195×45 mm)
- Thermal insulation: mineral wool 20 cm
- Steel frame of closed profiles (if included)
- Steel anti-rodent protective mesh 6×6 mm + wind membrane
- Concrete point foundation + ventilated gap between floor and ground

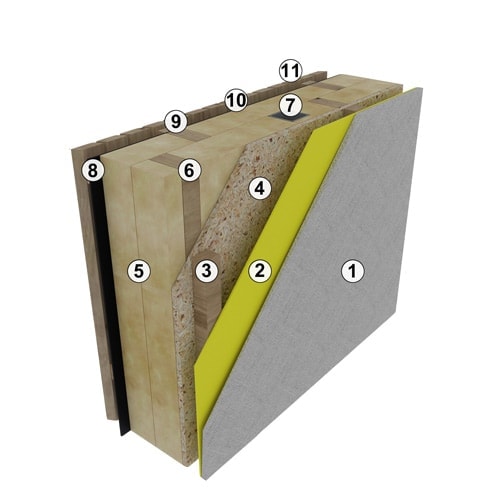

Wall construction
- Interior lining: plasterboard / wooden cladding / Strama panels
- Vapour barrier, optionally an installation pre-wall, OSB board (if a substrate is needed)
- Thermal insulation mineral wool 20 cm
- Wooden double frame 2× 95×45 mm + steel frame (if present)
- Wind membrane, battens 5×5 cm, ventilated gap
- Exterior cladding: Rhombus wood / facade board / standing-seam sheet metal / Vinylit
Ceiling construction
- Final upper-floor flooring + MFP structural board 22 mm + PE foil
- Acoustic insulation mineral wool 120/150 mm
- Wooden C24 ceiling joists + steel module frame (if present)
- Decorative C24 ceiling beams, vapour barrier
- Ground-floor ceiling lining: wooden cladding

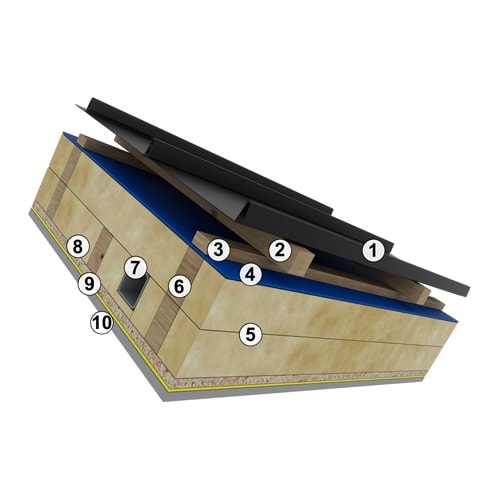

Roof construction
- Covering: standing-seam sheet metal / modular sheet metal
- Battens 5×5 cm, counter-battens 2.5×5 cm, wind membrane
- Thermal insulation mineral wool 20–25 cm
- Wooden C24 structure (2× 95×45 mm) + steel frame (if present)
- OSB board, vapour barrier
- Soffit lining: plasterboard / Fermacell / wooden cladding / Strama
Installations
- Complete electrical installation 230/380 V with a circuit-breaker distribution board, sockets, switches and ceiling lighting points
- Plumbing with supply and waste drainage under the floor, with water drain-down for winter (in the summer variant)
- Heating to choose from: electric convectors with thermostats, electric underfloor, a gas bottle boiler, or an air-to-water heat pump with radiators or underfloor heating
- Hot water: electric boiler 50/80 l, flow heating in a gas boiler, or a heat pump
- Ventilation: summer variant – venting via grilles + window intakes; year-round – mechanical ventilation with heat recovery (central or wall-mounted recuperators)
- Air conditioning: split with an indoor unit in the living room (optional)
- Smart home: alarm and control of heating, hot water and ventilation via a mobile app (optional)
Model variants
14 variants
Dimensions from 6.6 × 5.1 m (basic) to 10.4 × 6.7 m. Total area 30.5–63.5 m². Larger versions have 2–3 bedrooms, a living room and a separate hallway.
FAQ
What area does the MG2 modular home have?
Depending on the variant, from 30.5 to 63.5 m² of total area.
How many people is MG2 intended for?
Comfortably for 2–4 people.
