Modular home MG1
The MG1 modular home is a single-storey house in traditional architecture, composed of two modules (each forming half of the house), which we join on the customer’s plot into a single building. We supply the house in a year-round variant (with very good insulation and installations for comfortable living all year round) as well as in a summer variant.
We offer MG1 in 10 variants — from the basic size of 6.5 × 5 m up to the largest 10 × 6.6 m, with a total area from 32 to 66 m². Each subsequent variant is a little larger and more spacious.
Price on request

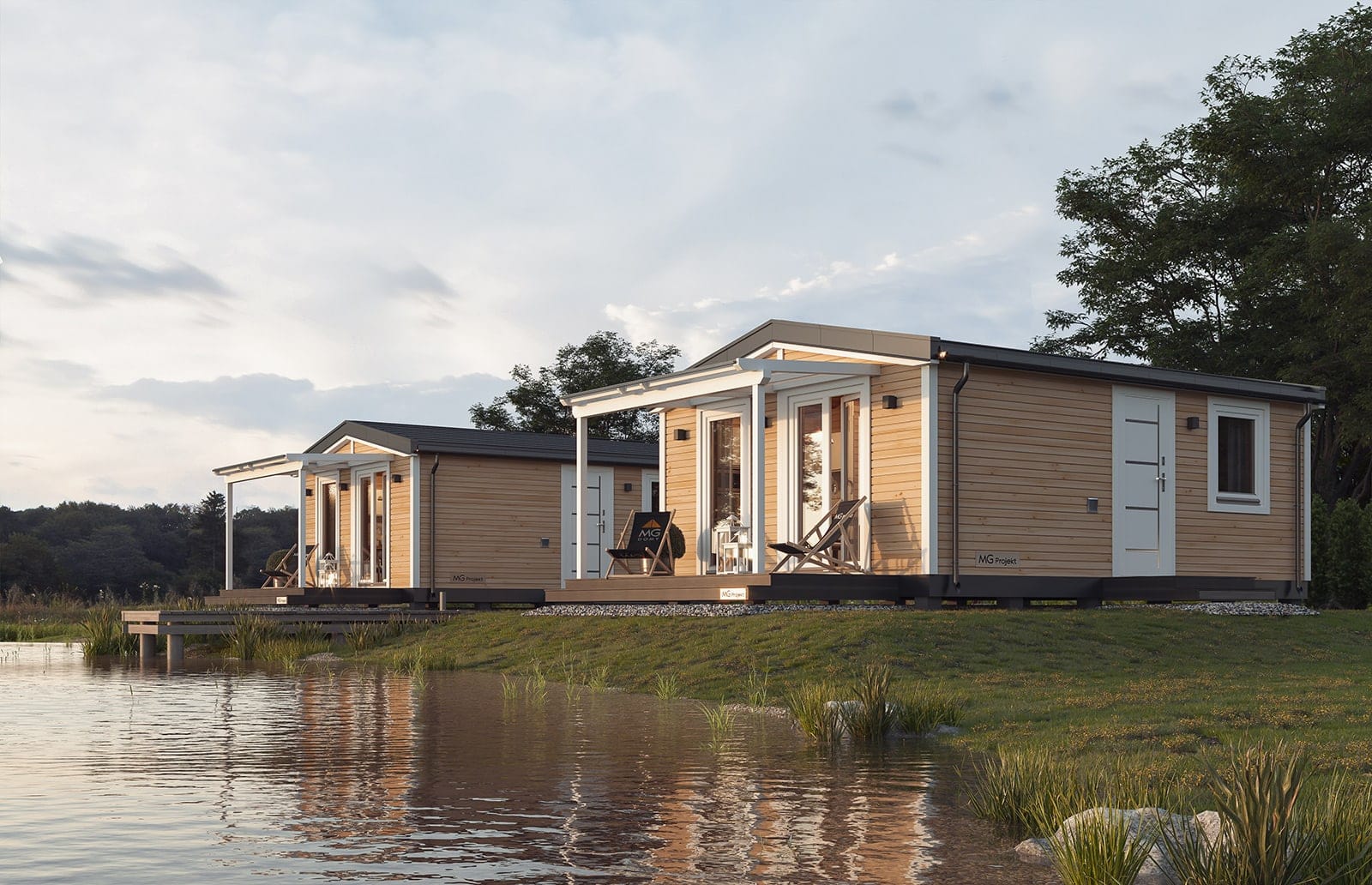

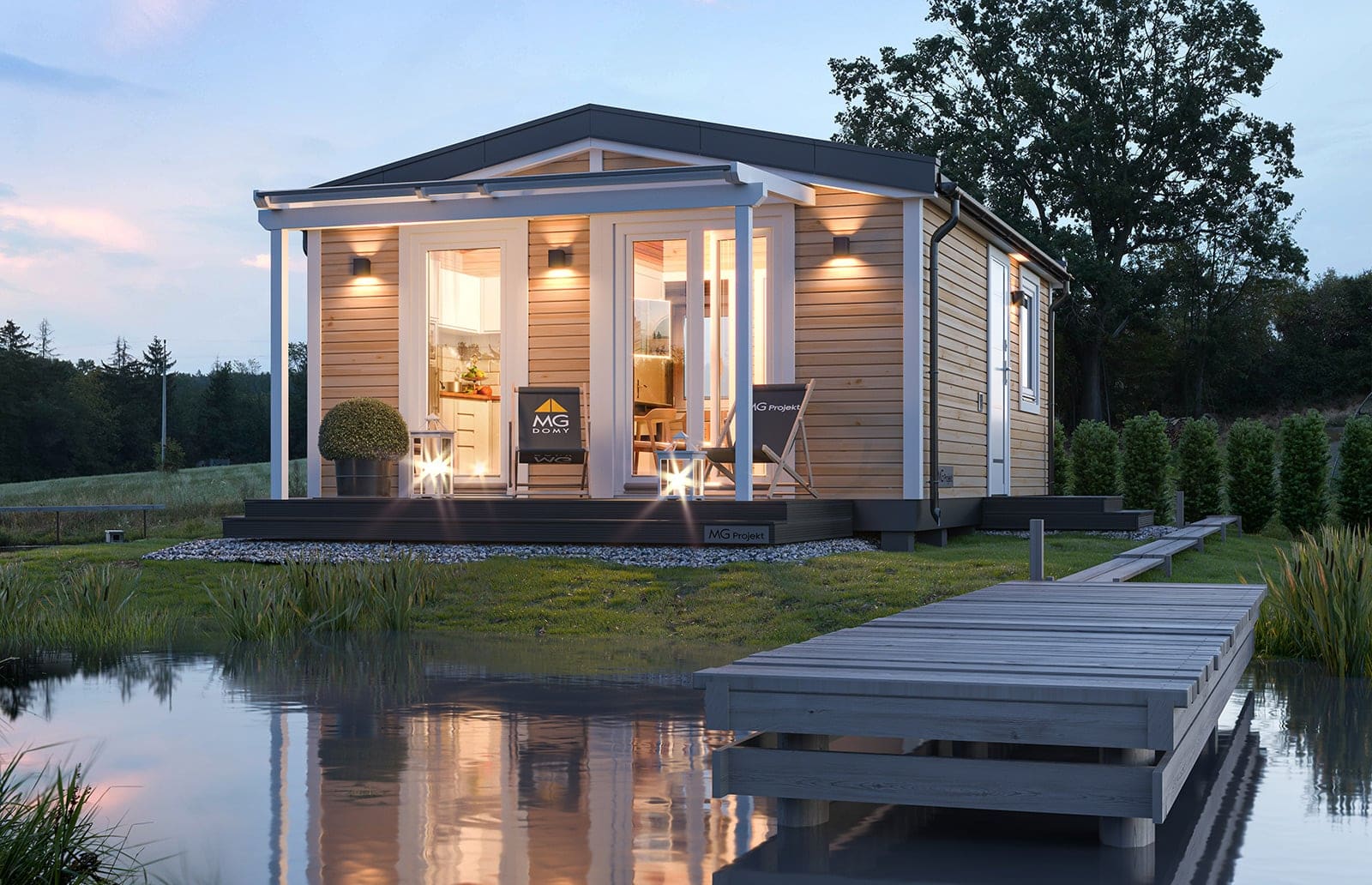

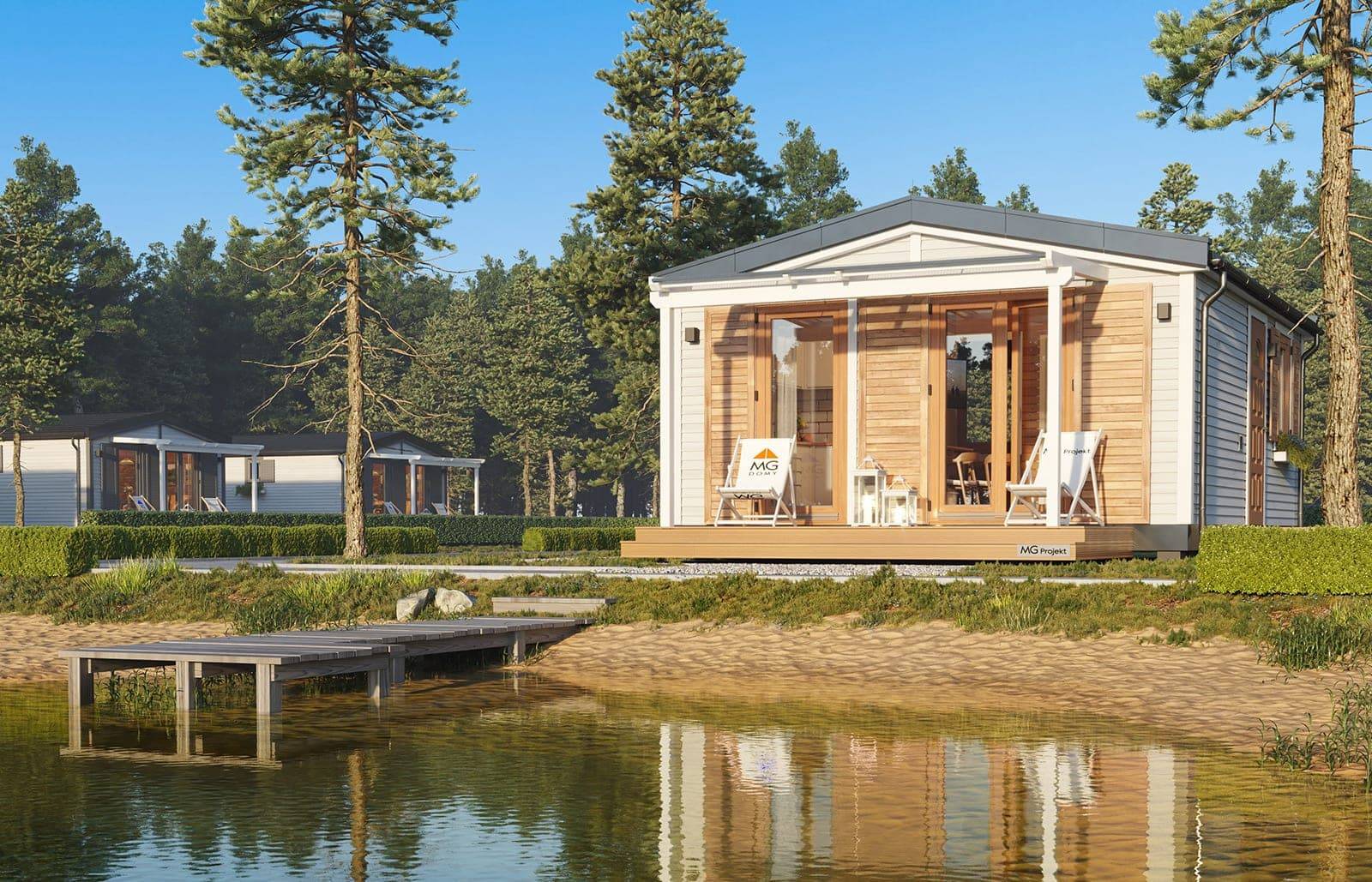

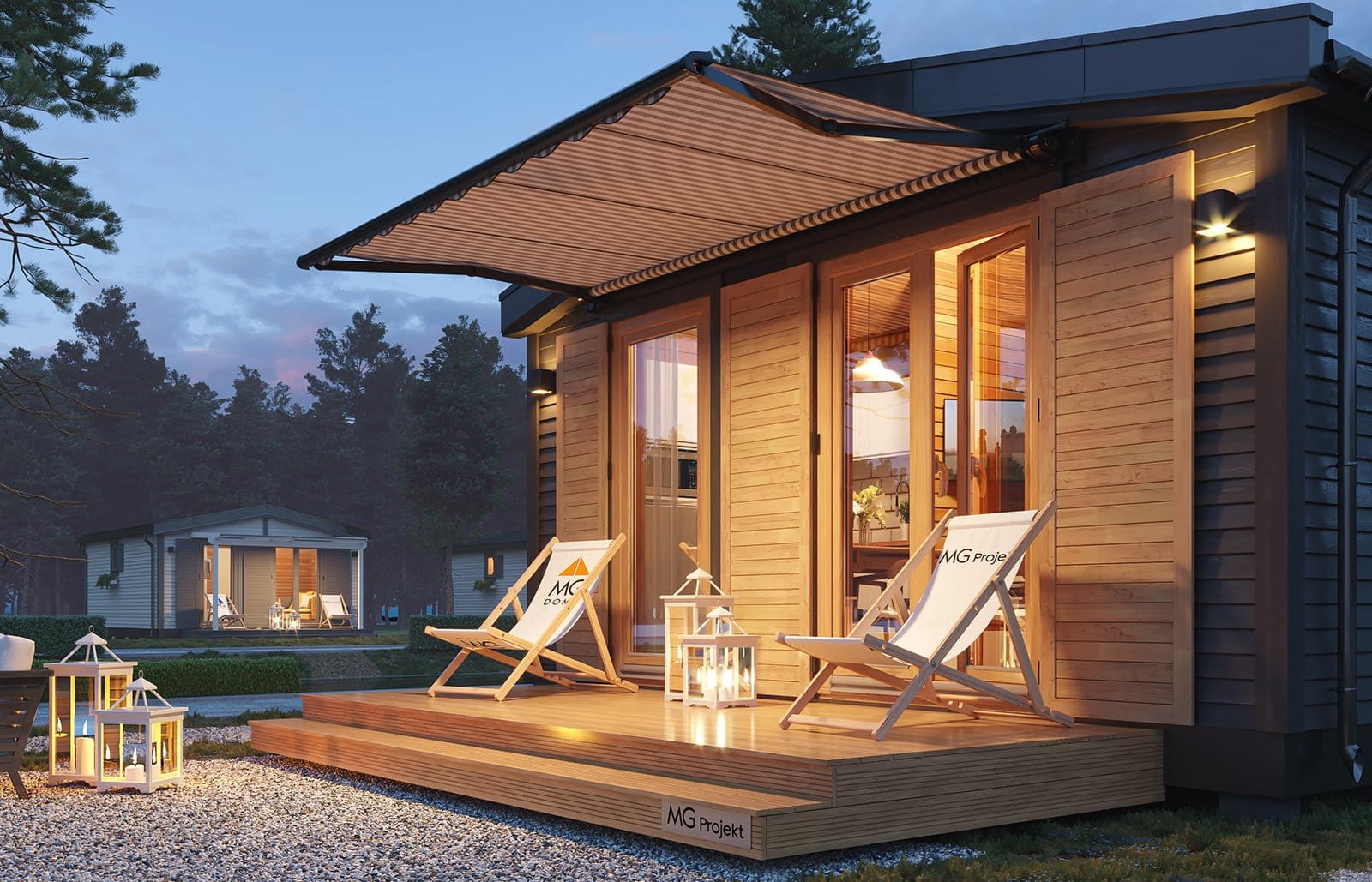

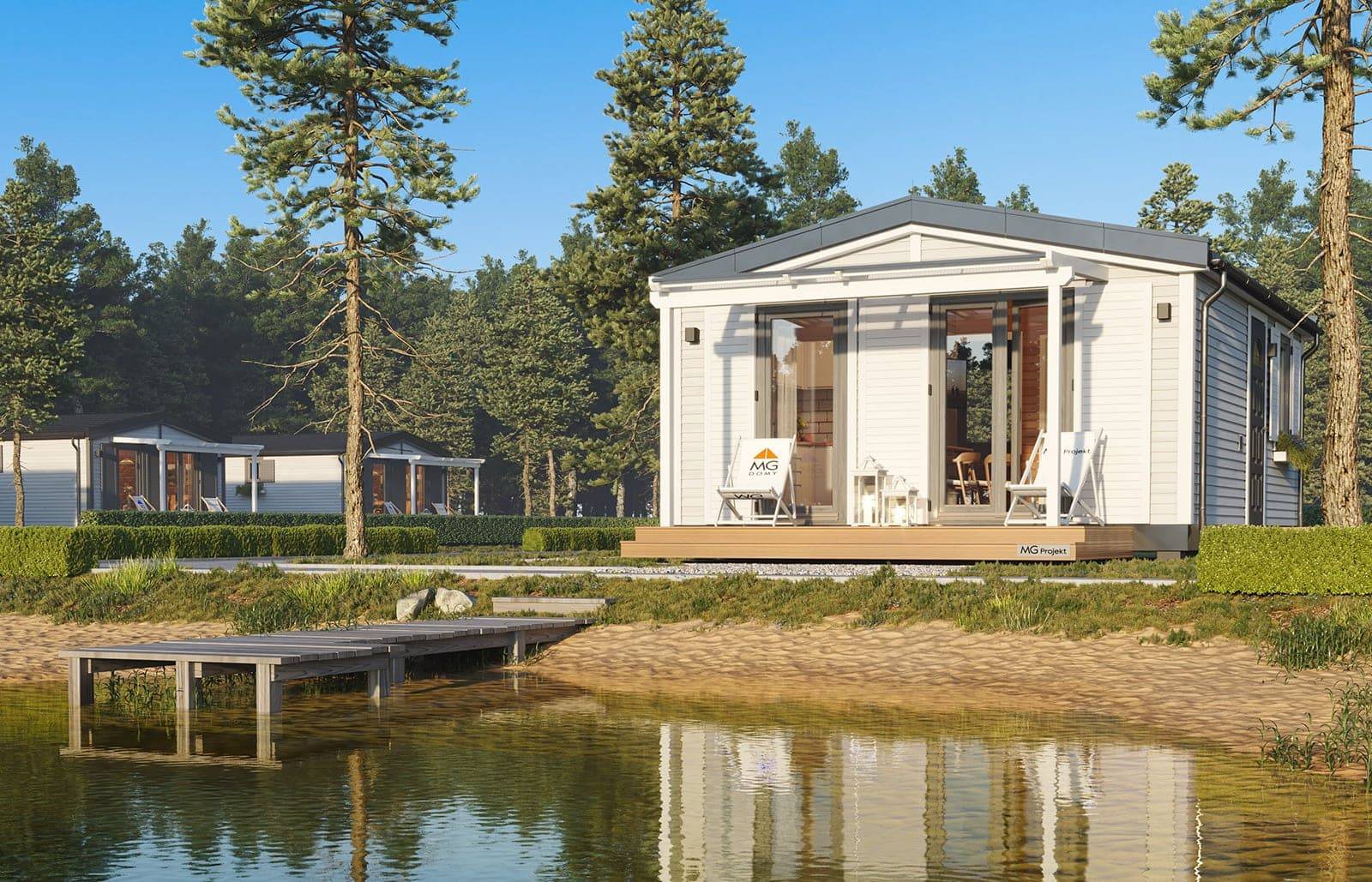

Exterior
The MG1 roof is covered with metal roof tiles or standing-seam sheet metal. The walls are clad as standard with wooden cladding; the facade can alternatively be made as a combination of standing-seam sheet metal with wood, Vox panels (Vifront, Kerrafront) or Vinylit. The colour scheme can be freely changed according to the customer’s wishes — e.g. natural light wood, wood stained brown, whitewashed wood or graphite.
MG1 is designed on a rectangular floor plan with a gently pitched gable roof of 12–16°. The house can later be freely extended by adding more modules, and thanks to its modular structure it can also be relocated to another place.

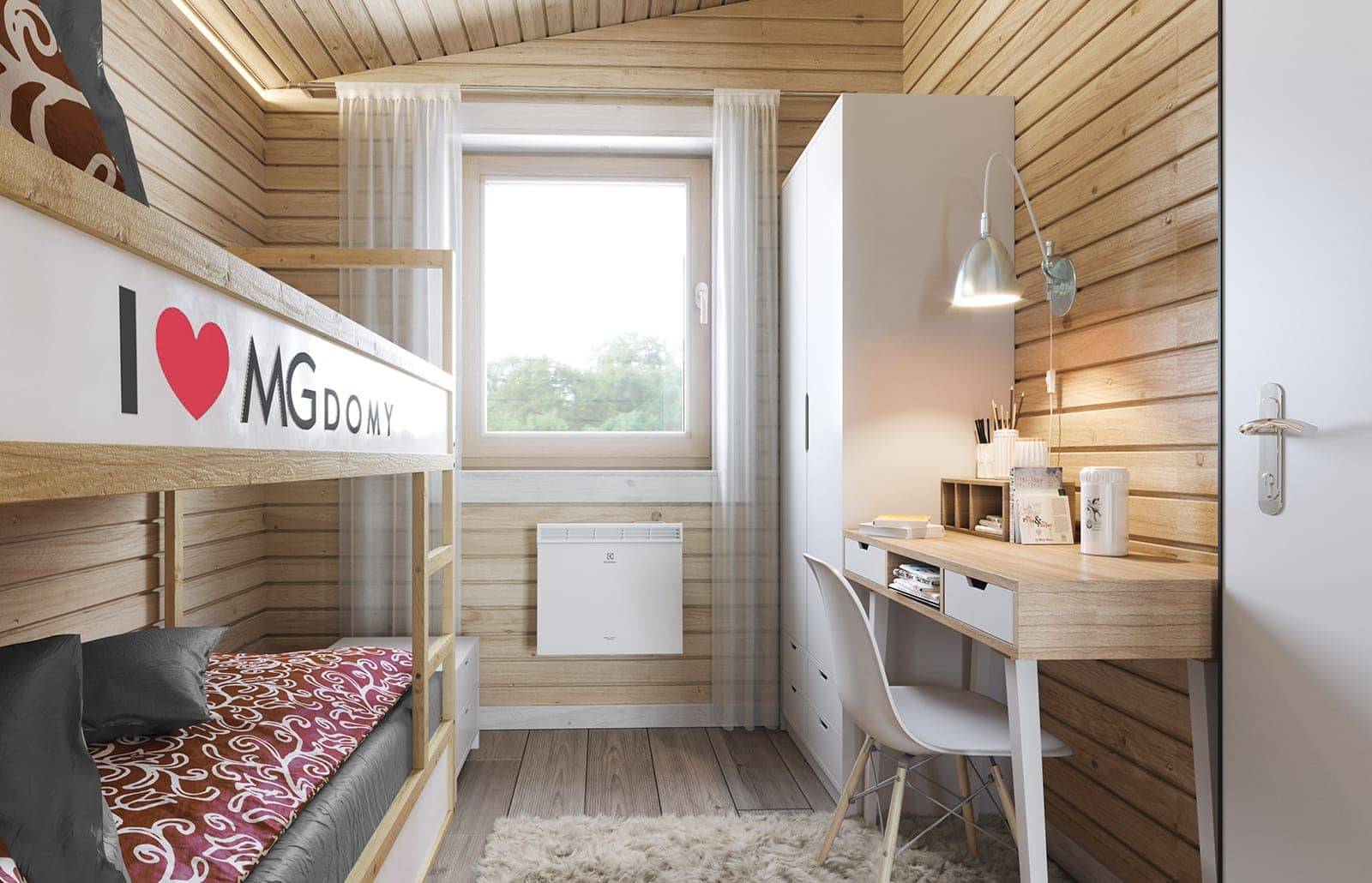

Interior
The interior of MG1 consists of a living room joined with a kitchenette, two bedrooms and a bathroom. The layout allows comfortable living for a 2–4-member family, both year-round and for recreation. Larger variants offer a larger living room, three bedrooms or a separate hallway.
The kitchenette has a set of lower and upper L-shaped cabinets with a sink, a hob and a fridge. Large glazing of the balcony door opens the living room onto the terrace and visually enlarges the interior. The interior is fully finished in every specification (wall, ceiling and floor finishes); on request also fully furnished with appliances.
Specifications
| External dimensions | 5.0 × 6.5 m (basic) |
|---|---|
| Built-up area | 32.5 m² |
| Total area | 32.5 m² |
| Usable area | 26.75 m² |
| Volume gross / net | 98 m³ / 70 m³ |
| Persons / beds | 4 + 2 |
| Height to ridge (with frame) | 2.99 / 3.35 m |
| Room height | 2.3 – 2.77 m |
| Roof pitch | 12° |
| House weight | 8 tonnes |
| Structure | steel-timber (C24 timber) |

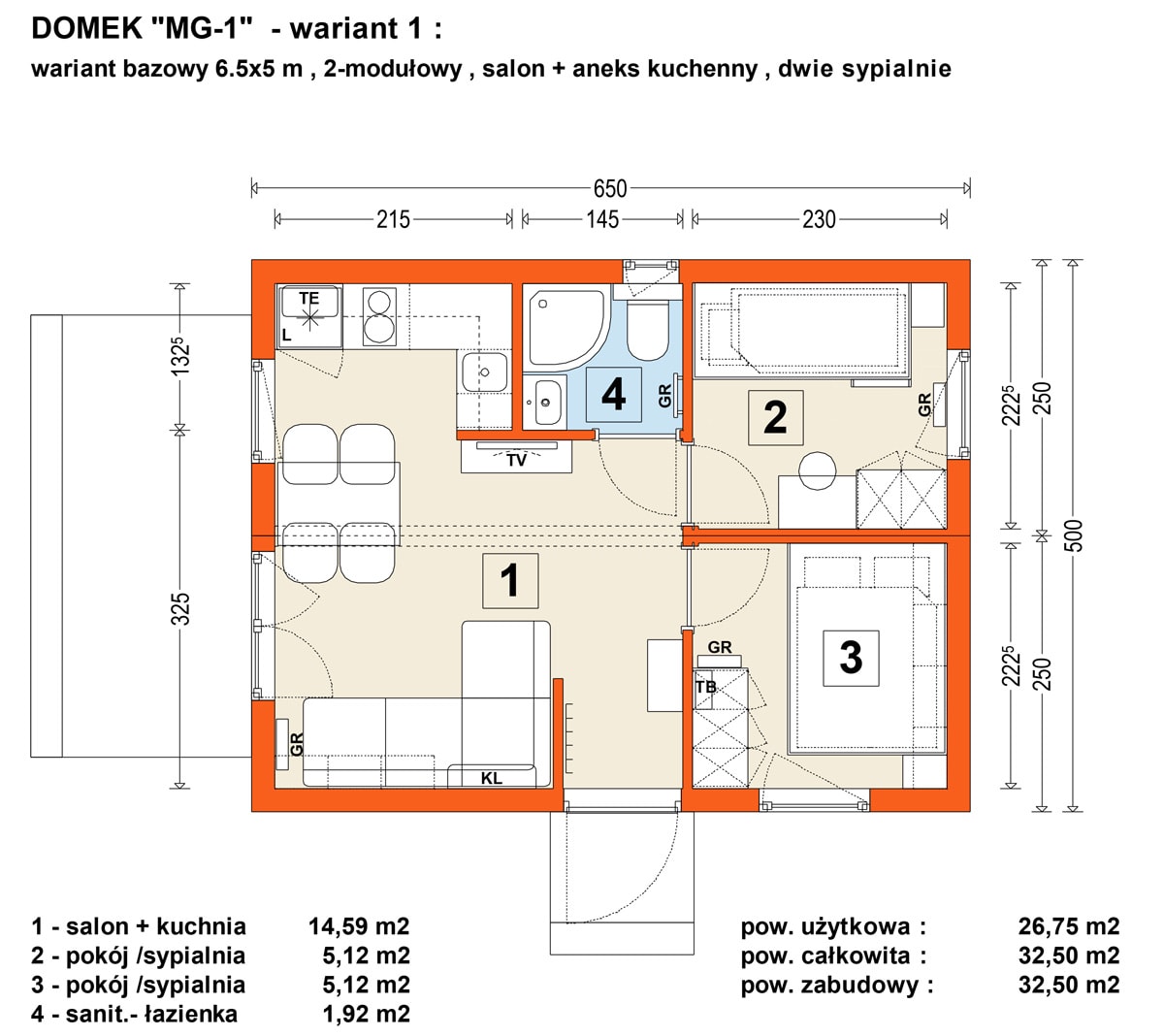

Floor plans
We enter the house through a wide entrance door into a separate hallway with hooks and a shoe cabinet. The living room has a seating set, a TV wall with cabinets and a dining table. The parents’ bedroom has a double bed and a wardrobe, the children’s room a bunk bed, a wardrobe and a desk. The bathroom has a corner shower, WC, a washbasin with a cabinet and a ladder radiator.
Equipment variants
We offer our mobile homes in three finish standards:
- Basic — the base variant with complete utilities, but no furniture.
- Comfort — a variant with a fitted bathroom and kitchen (kitchen units, sanitary ware, appliances), but no furniture in the rooms.
- Premium — a completely finished and furnished house — full furniture and appliances in every room.
BASIC
Basic house finish and equipment standard
- Steel-and-timber house structure — a welded, hot-dip galvanised steel floor frame; floor, walls and roof from kiln-dried Scandinavian C24 timber
- Two-layer MFP 22+15 mm tongue-and-groove floor
- Axle(s) and wheels for transport
- Waterproofing, vapour barrier and vapour-permeable membrane in the walls, roof and floor
- Thermal insulation: summer variant — 15 cm of mineral wool in floor and roof, 10 cm in walls; year-round variant — 20 cm in floor, 20/25 cm in roof, 20 cm in walls
- Roofing from metal tiles or standing-seam sheet (depending on model), sheet-metal trim from plastic-coated sheet, PVC gutters and downpipes
- Double-glazed PVC windows (optionally triple), 6-chamber frames, with micro-ventilation for air circulation
- Sliding terrace door with a mobile post
- Entrance door — glazed PVC with double locking or insulated steel with double locking
- Internal window and door trims with PVC strips
- Internal MDF veneer doors with an adjustable frame
- Highly abrasion-resistant vinyl flooring — contract grade (optionally vinyl planks)
- PVC skirting boards
- Ceiling cornices from lacquered MDF or timber
- Internal wall cladding with PVC panels (optionally Strama / Forestia)
- Exterior façade Vox Vifront siding (optionally Vinylit, Vox Kerafront, Cedral, timber or sheet-metal façade)
- Electrical preparation for electric radiators and an electric water heater
- Compact-type toilet (optionally wall-hung — Geberit), shower tray, connections for sanitary ware and fittings
- Distribution board with circuit breakers
- External inlets for water, sewerage and the house's electrical supply, with preparation for draining water
- Mechanical ventilation in the bathroom and kitchen — ducting and wiring
- Internal LED lighting
- Outlets for external wall lighting
- TV antenna cable led outside the house
- Preparation for connecting a heating cable for the water pipe
COMFORT
Basic standard plus:
- Shower enclosure — size according to house model
- Washbasin with tap, lower cabinet, mirror and LED backlighting
- Extractor fan in the bathroom
- 50 l electric water heater in cabinet cladding (optionally 80/100 l)
- Electric ladder radiator / towel dryer in the bathroom
- Upper kitchen cabinets in standard veneer
- Kitchen sink with tap
- Built-in under-counter fridge with freezer
- Two-plate electric hob
- Built-in extractor hood in the upper cabinets
PREMIUM
Comfort standard plus:
- Dining table with chairs
- TV cabinet in the living room
- Bed in the master bedroom with a mattress and a storage chest for bed linen
- Beds in the children's bedroom with mattresses
- Wardrobe in the master bedroom
- Wardrobe in the children's bedroom
- Bedside tables and chairs in the bedrooms
Additional equipment
- Changing the summer variant to year-round (thicker insulation)
- Changing the façade to Vinylit, Cedral or sheet-metal panels
- Changing the internal cladding to Strama or Fibo
- Changing the floor to vinyl or timber planks (engineered board)
- Changing windows to triple glazing
- Changing heating from electric radiators to underfloor infrared film
- Fireplace with a double stainless-steel Poujoulat flue
- Upgrading kitchen / bathroom equipment: dishwasher, larger fridge, oven, larger induction hob, washing machine
- Curtain rails, curtains, pleated blinds, insect screens
- Air conditioning with a heating function (air-to-air heat pump)
- Integration of the house with a photovoltaic power plant
- Mechanical ventilation with point heat recovery
- Corner sofa set in the living room (depending on house model)
- Many more accessories can be found on the Tatradomy website
Thanks to an extensive list of optional equipment you choose and design the house yourself in comfort — picking colours, materials and solutions to your own taste. Configuring the house is a simple and pleasant process that results in a tailor-made home. Our designers and advisors will guide you through the whole process and advise you.
Construction and installations
Floor construction
- Final floor: vinyl covering / vinyl panels / MDF-wood panels
- MFP structural board 22 mm + PE foil
- Wooden floor frame of C24 timber (2× 95×45 / 195×45 mm)
- Thermal insulation: mineral wool 20 cm
- Steel frame of closed profiles (if included)
- Steel anti-rodent protective mesh 6×6 mm + wind membrane
- Concrete point foundation + ventilated gap between floor and ground
Wall construction
- Interior lining: plasterboard / wooden cladding / Strama panels
- Vapour barrier, optionally an installation pre-wall, OSB board (if a substrate is needed)
- Thermal insulation mineral wool 20 cm
- Wooden double frame 2× 95×45 mm + steel frame (if present)
- Wind membrane, battens 5×5 cm, ventilated gap
- Exterior cladding: Rhombus wood / facade board / standing-seam sheet metal / Vinylit
Ceiling construction
- Final upper-floor flooring + MFP structural board 22 mm + PE foil
- Acoustic insulation mineral wool 120/150 mm
- Wooden C24 ceiling joists + steel module frame (if present)
- Decorative C24 ceiling beams, vapour barrier
- Ground-floor ceiling lining: wooden cladding
Roof construction
- Covering: standing-seam sheet metal / modular sheet metal
- Battens 5×5 cm, counter-battens 2.5×5 cm, wind membrane
- Thermal insulation mineral wool 20–25 cm
- Wooden C24 structure (2× 95×45 mm) + steel frame (if present)
- OSB board, vapour barrier
- Soffit lining: plasterboard / Fermacell / wooden cladding / Strama
Installations
- Complete electrical installation 230/380 V with a circuit-breaker distribution board, sockets, switches and ceiling lighting points
- Plumbing with supply and waste drainage under the floor, with water drain-down for winter (in the summer variant)
- Heating to choose from: electric convectors with thermostats, electric underfloor, a gas bottle boiler, or an air-to-water heat pump with radiators or underfloor heating
- Hot water: electric boiler 50/80 l, flow heating in a gas boiler, or a heat pump
- Ventilation: summer variant – venting via grilles + window intakes; year-round – mechanical ventilation with heat recovery (central or wall-mounted recuperators)
- Air conditioning: split with an indoor unit in the living room (optional)
- Smart home: alarm and control of heating, hot water and ventilation via a mobile app (optional)

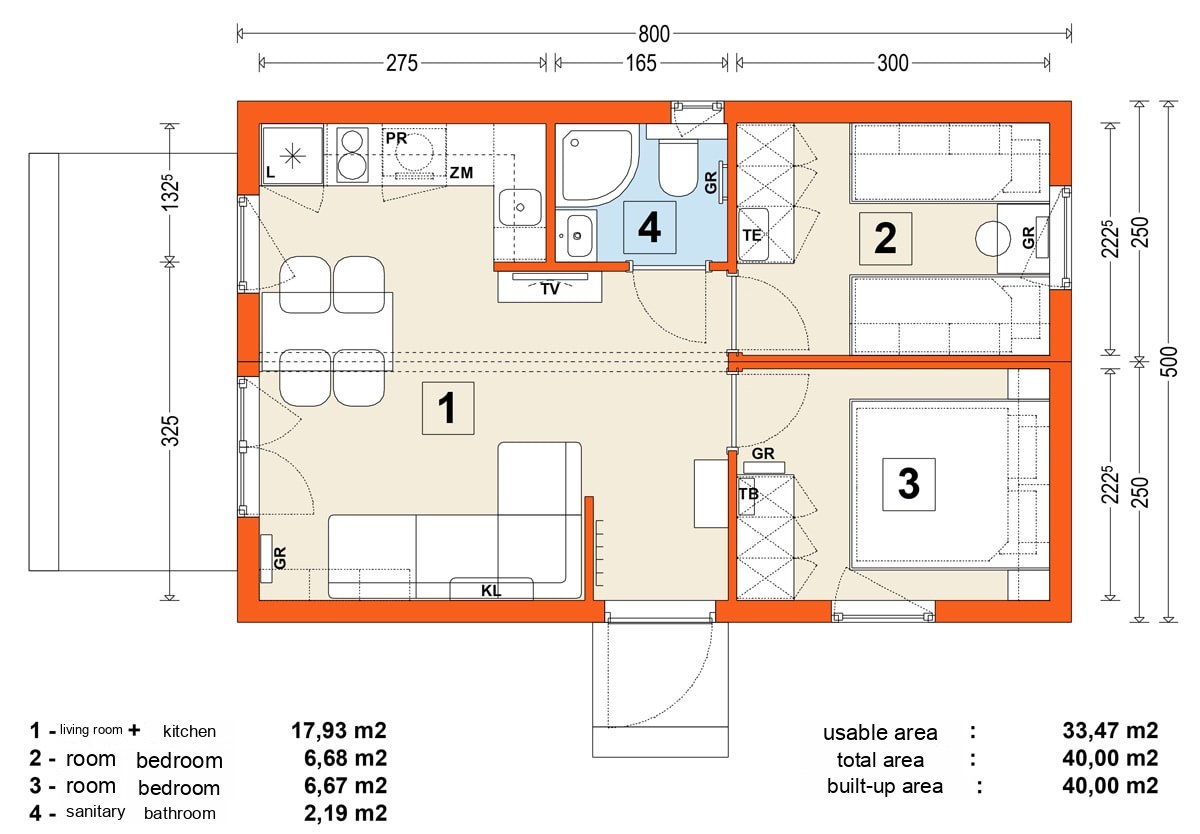

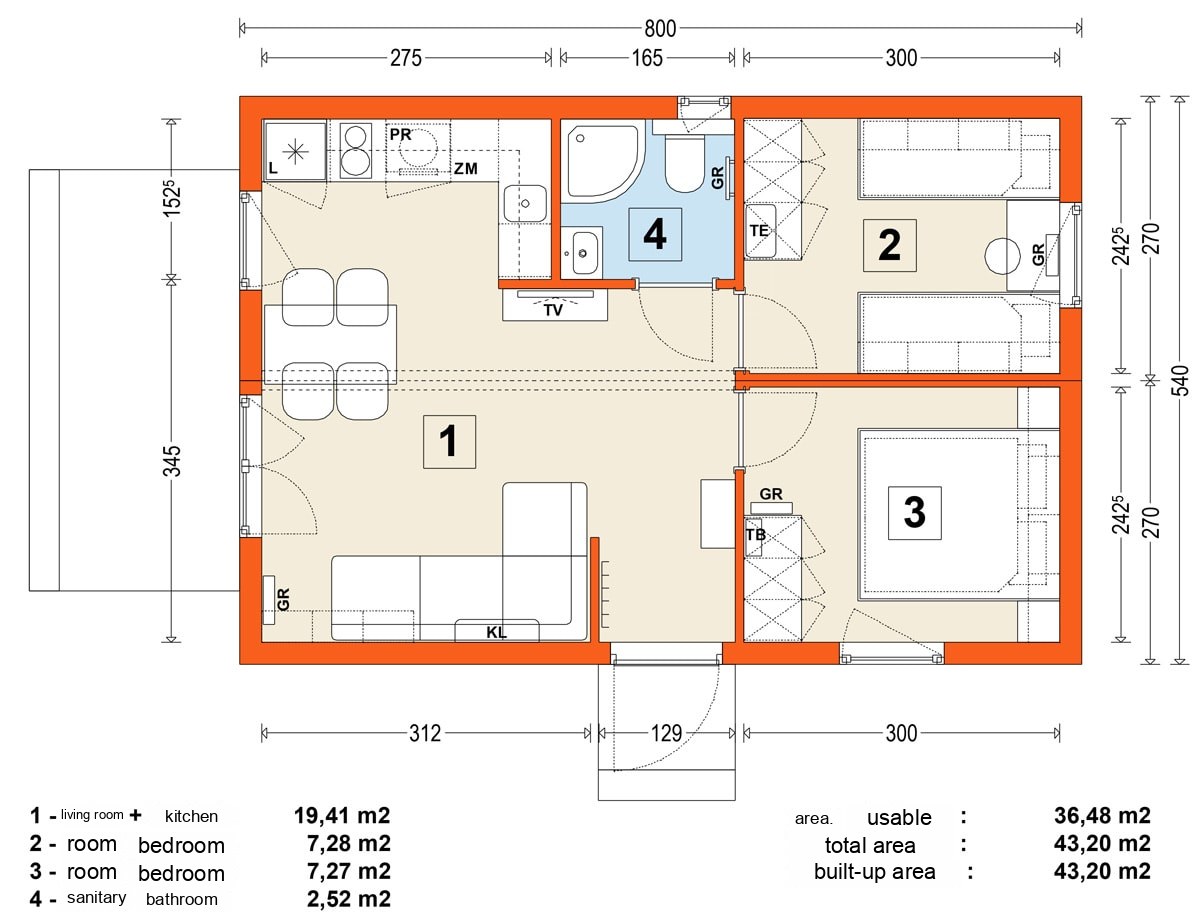

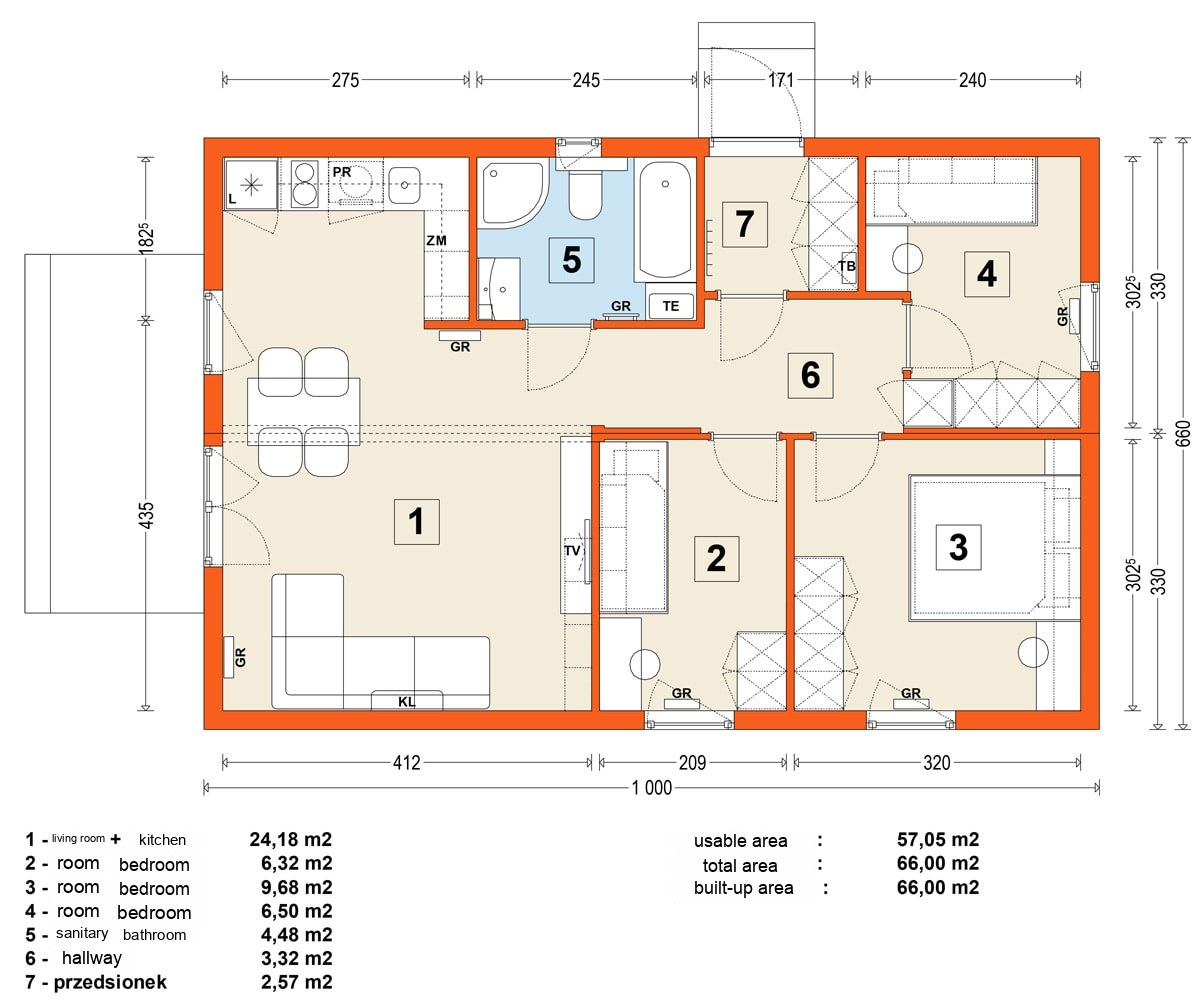

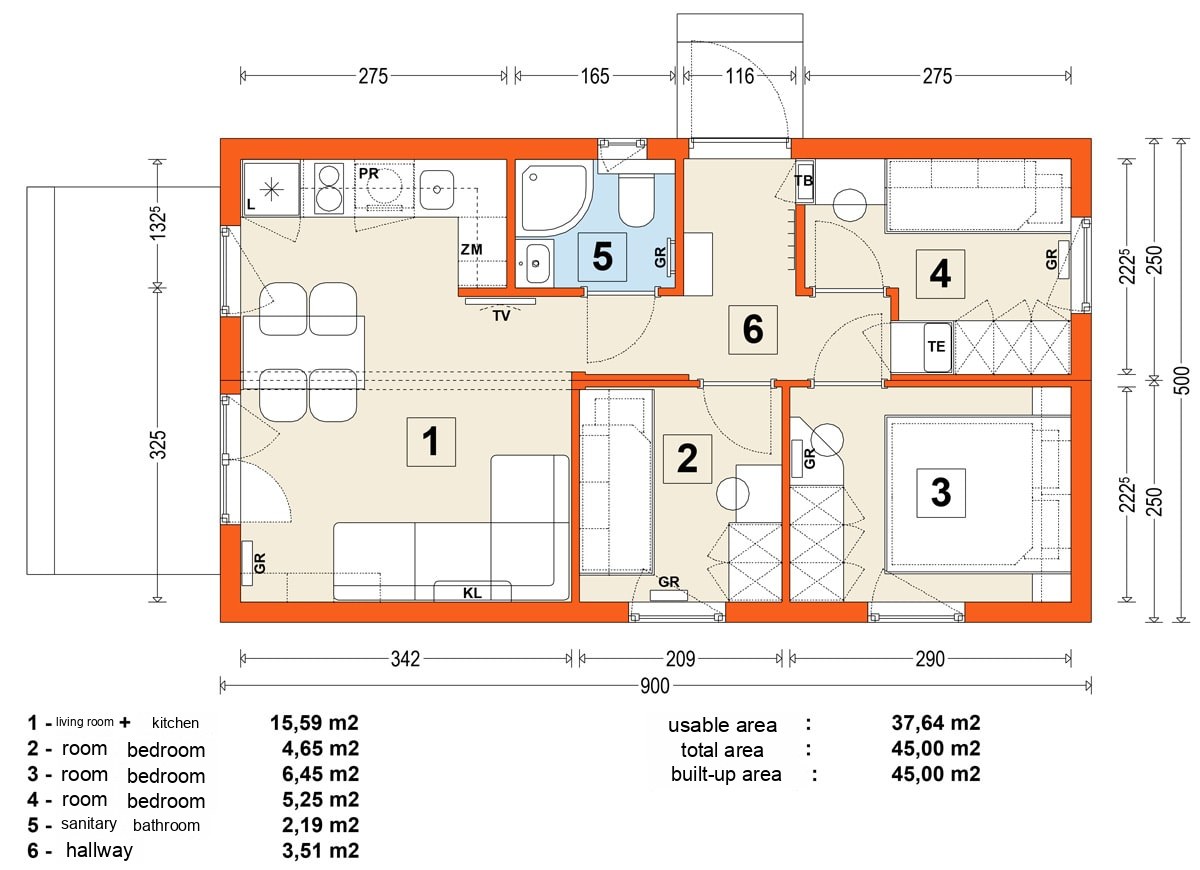

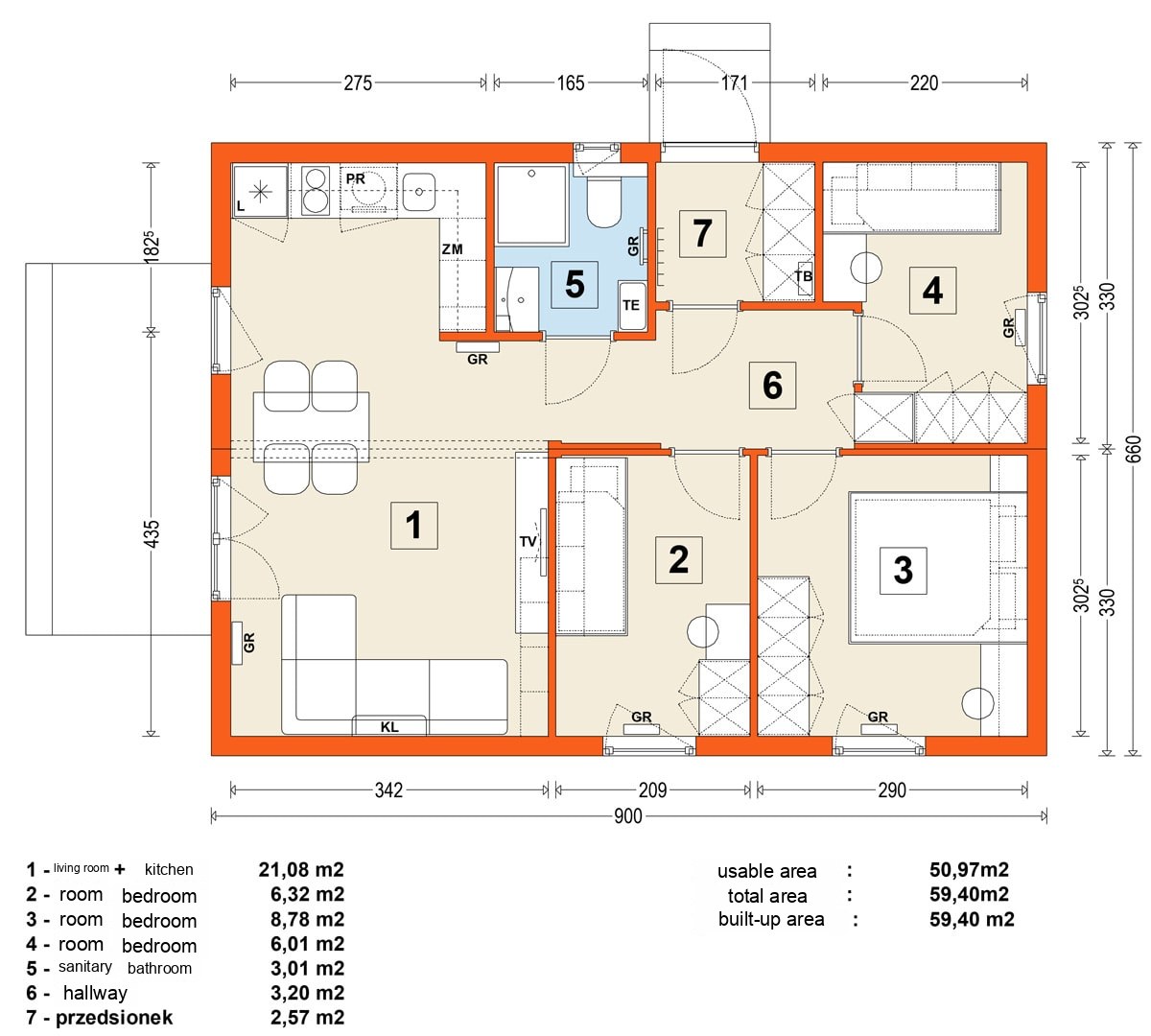

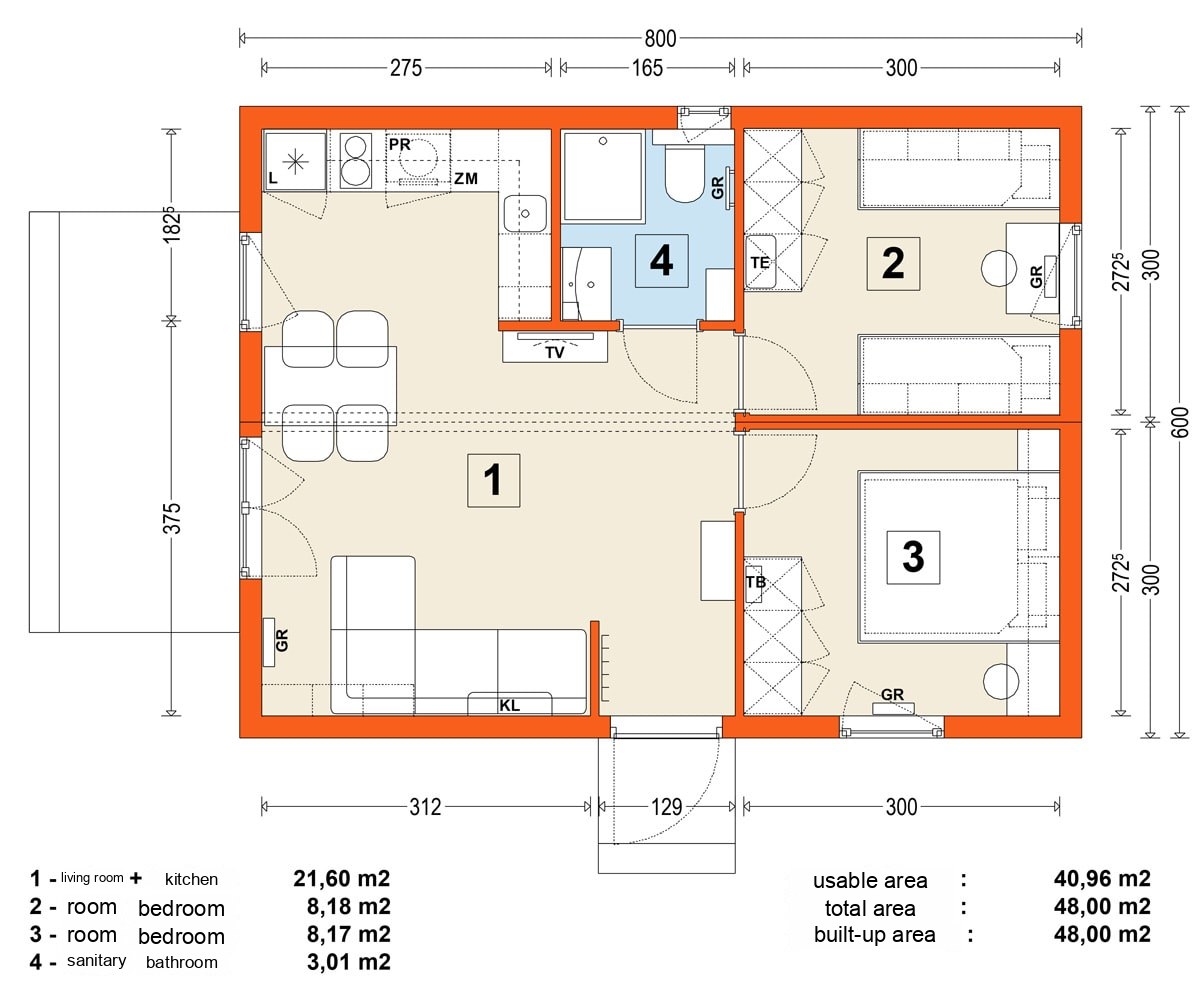

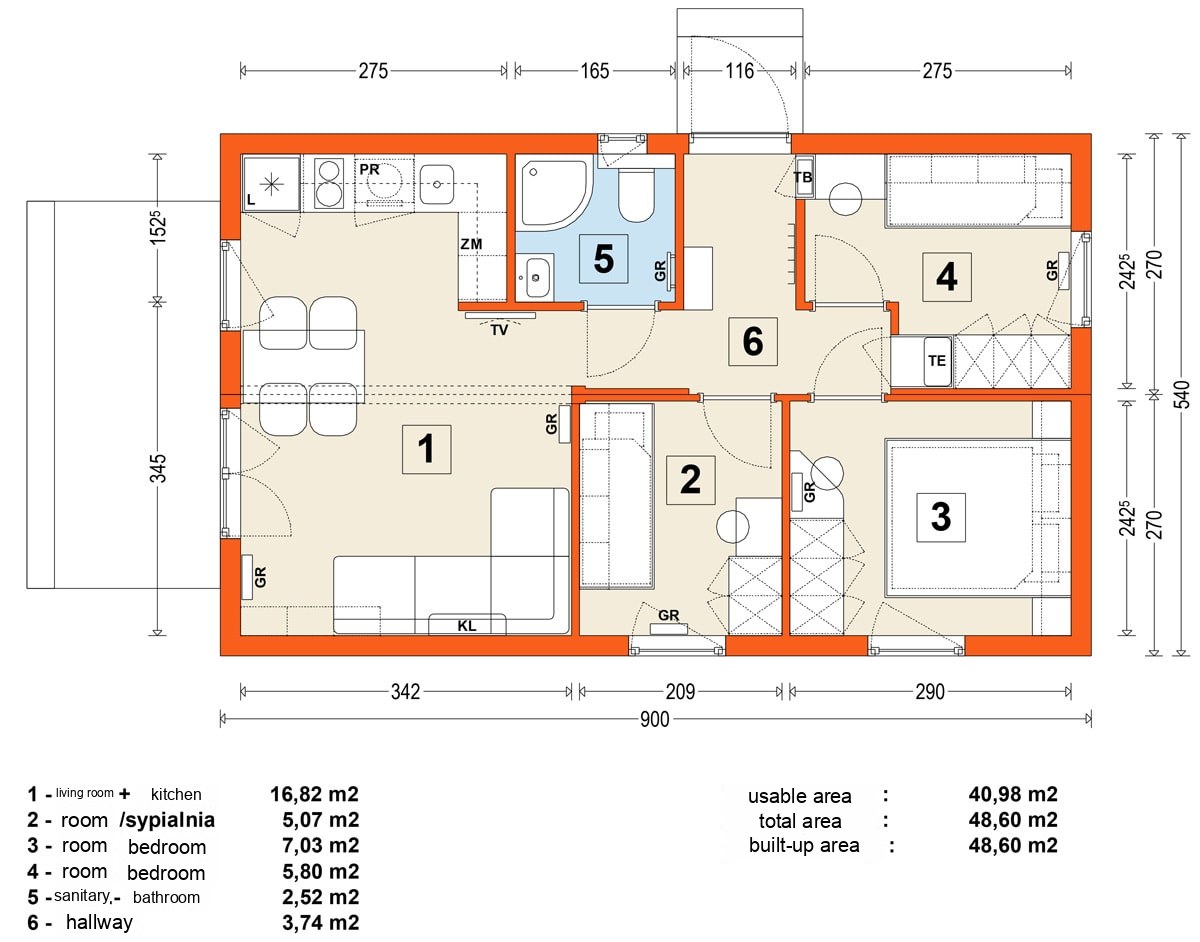

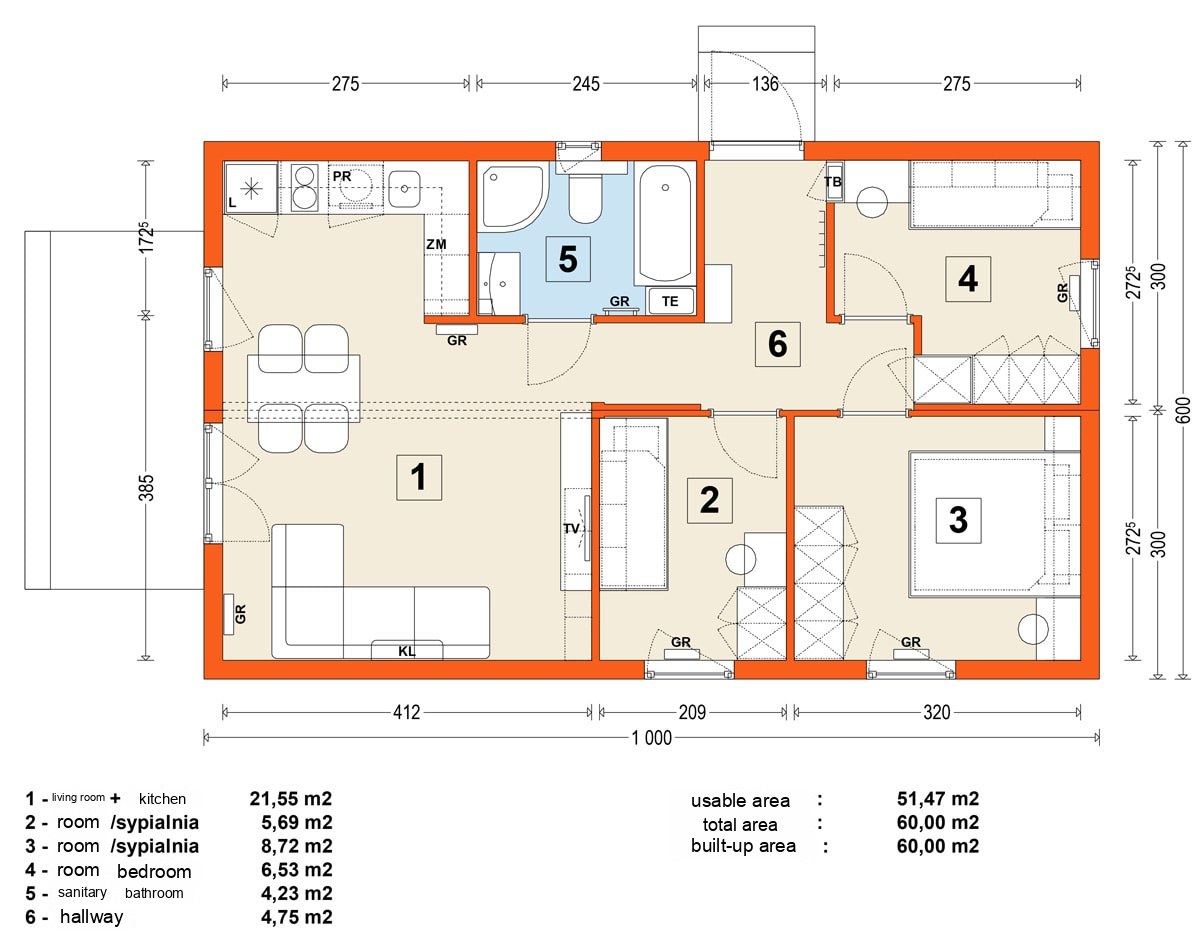

Model variants
10 variants
Dimensions from 5 × 6.5 m (basic) to 6.6 × 10 m. Total area 32–66 m². Larger versions have a larger living room, 3 bedrooms or a separate hallway.
FAQ
What area does the MG1 modular home have?
Depending on the variant, from 32 to 66 m² of total area.
How many people is MG1 intended for?
Comfortably for 2–4 people (basic variant 4 + 2 beds).
