Mobile home C
Mobile home C is a medium-sized house of around 35 m² built-up area — practical, functional, in modern styling and a light, clean colour scheme, in a reasonable scale and price. We supply it in two dimensions: the basic 9.5 × 3.5 m and the extended 10.5 × 3.5 m.
The house has 10 functional layout variants. The exterior appearance — colour scheme, materials, window arrangement — can be adapted to the customer’s requirements.
Price on request

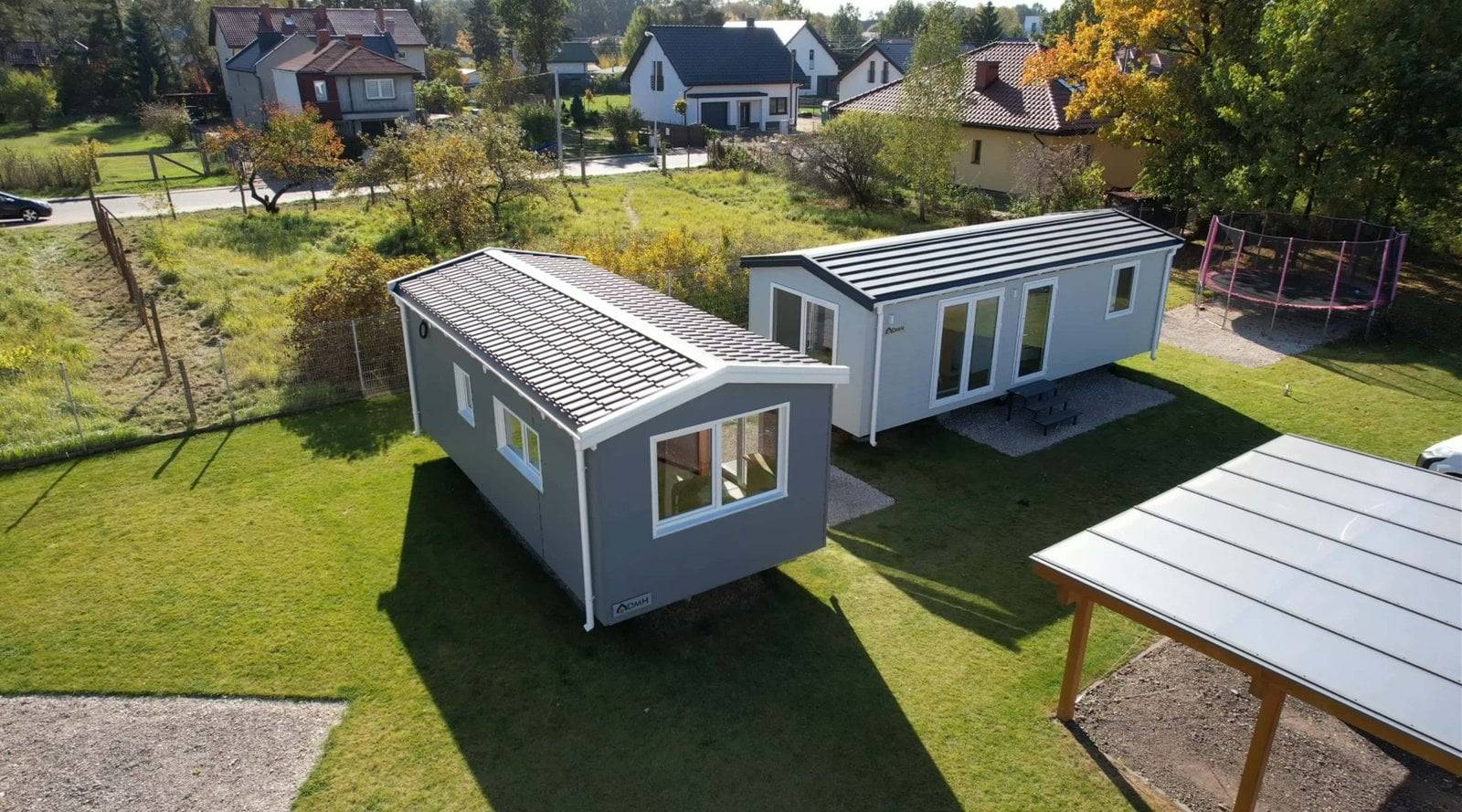

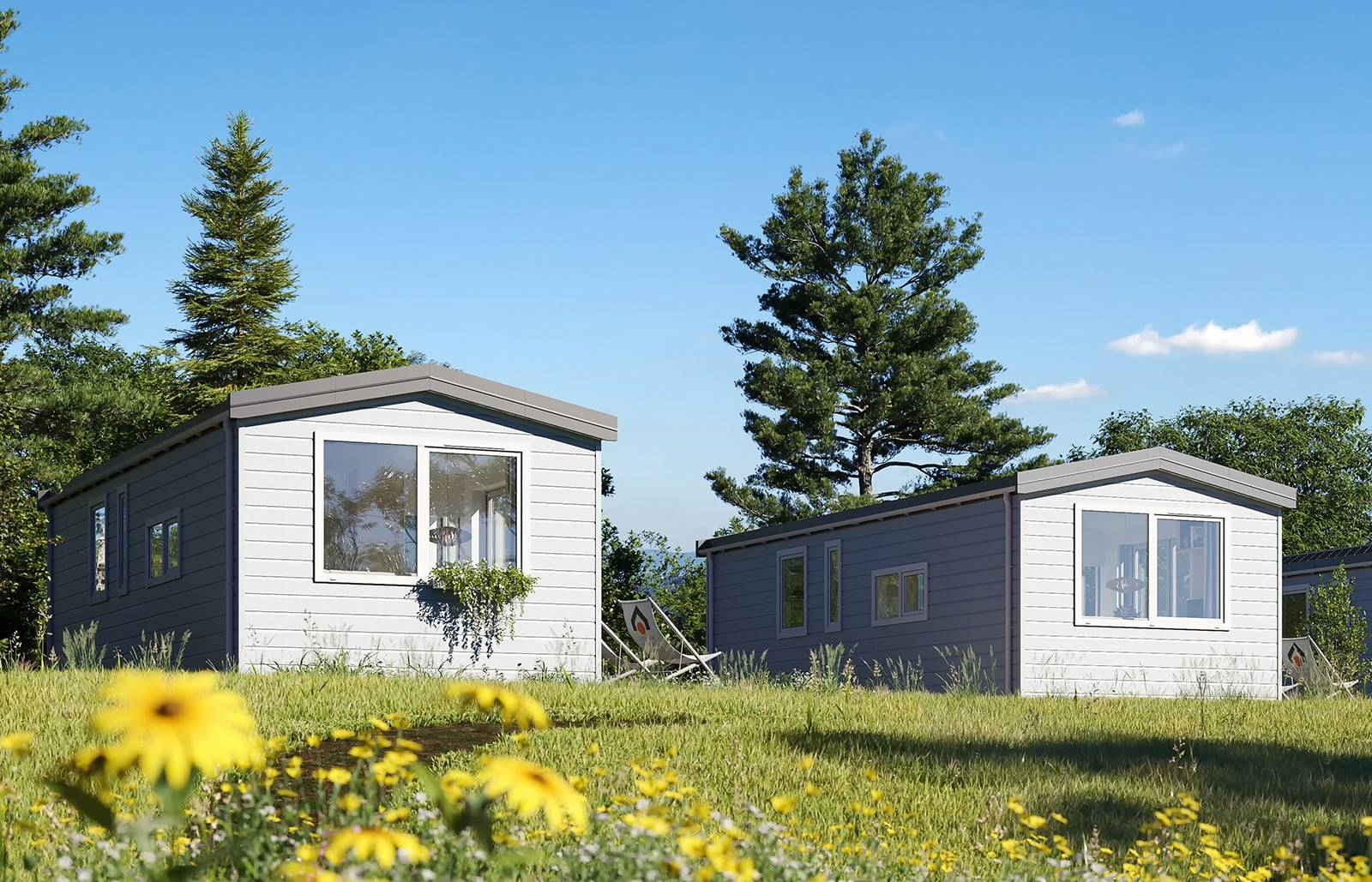

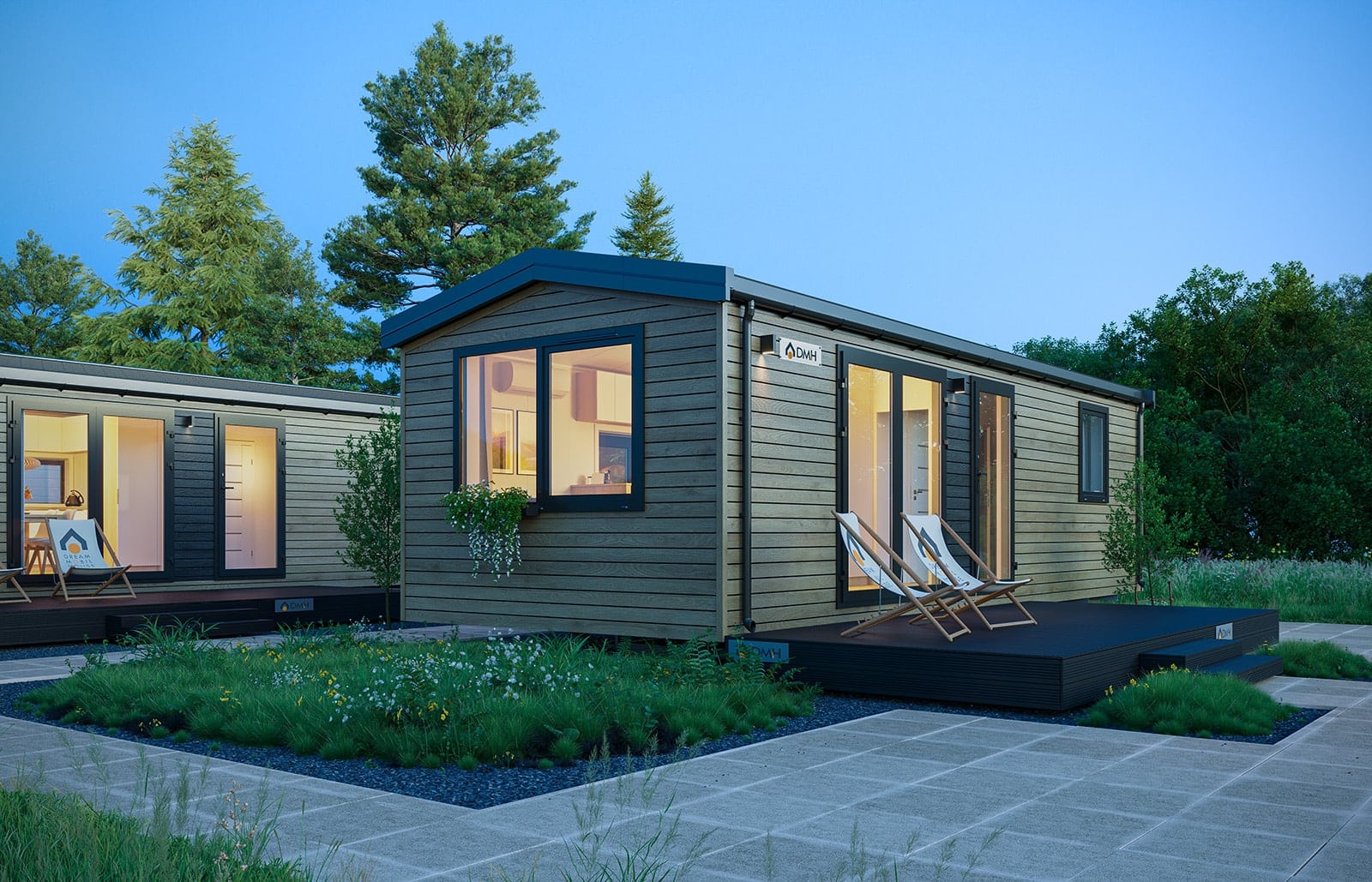

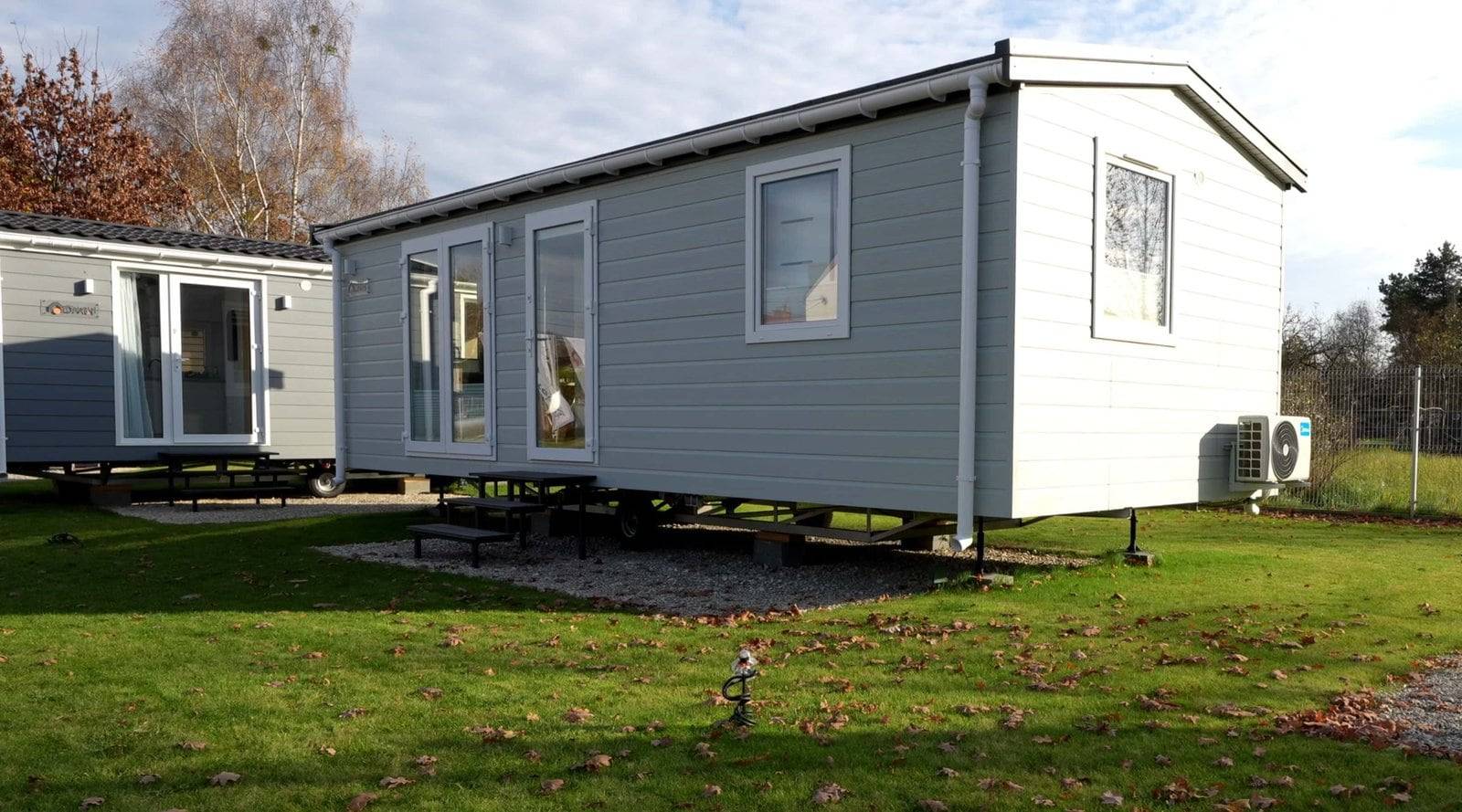

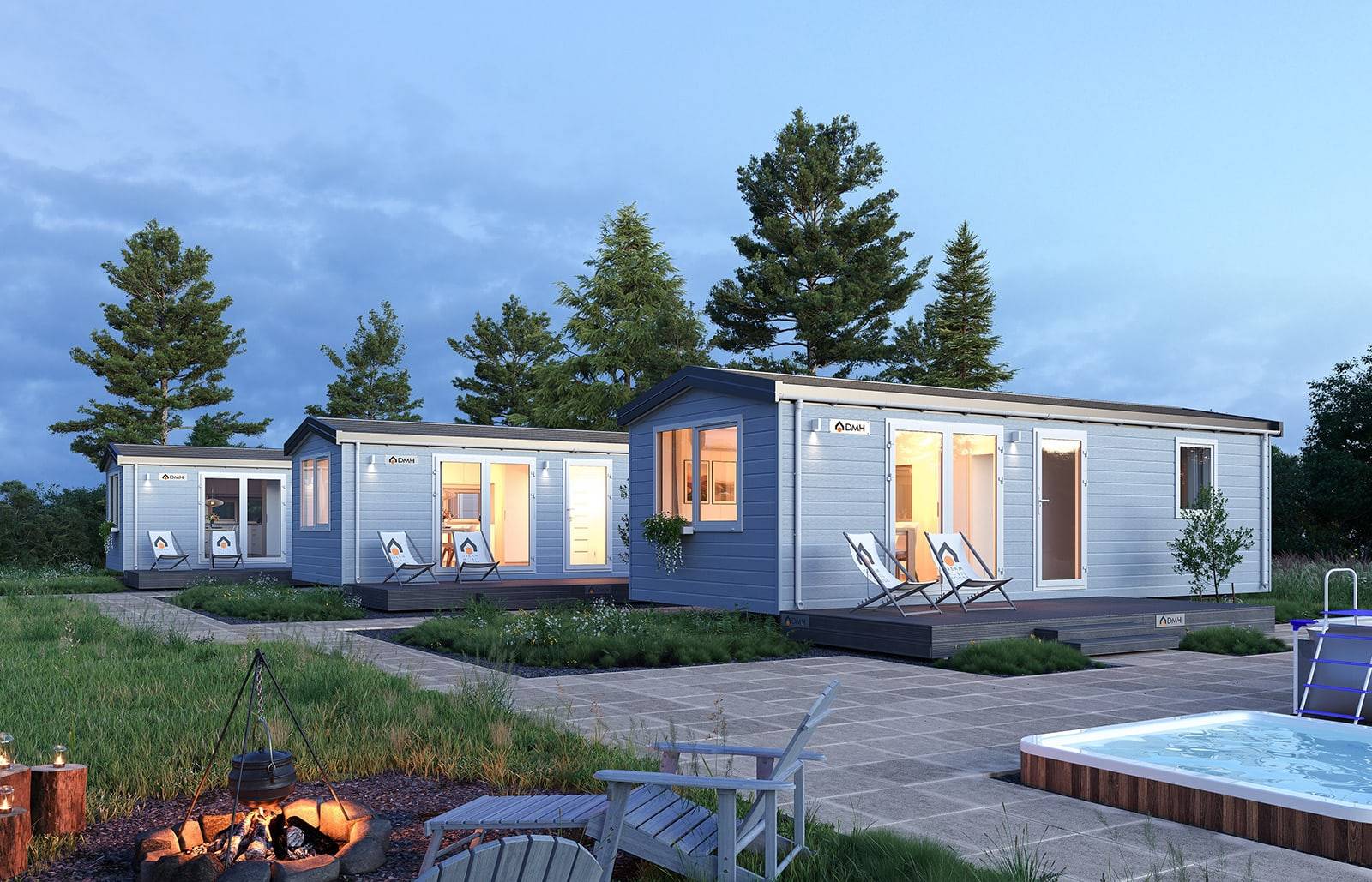

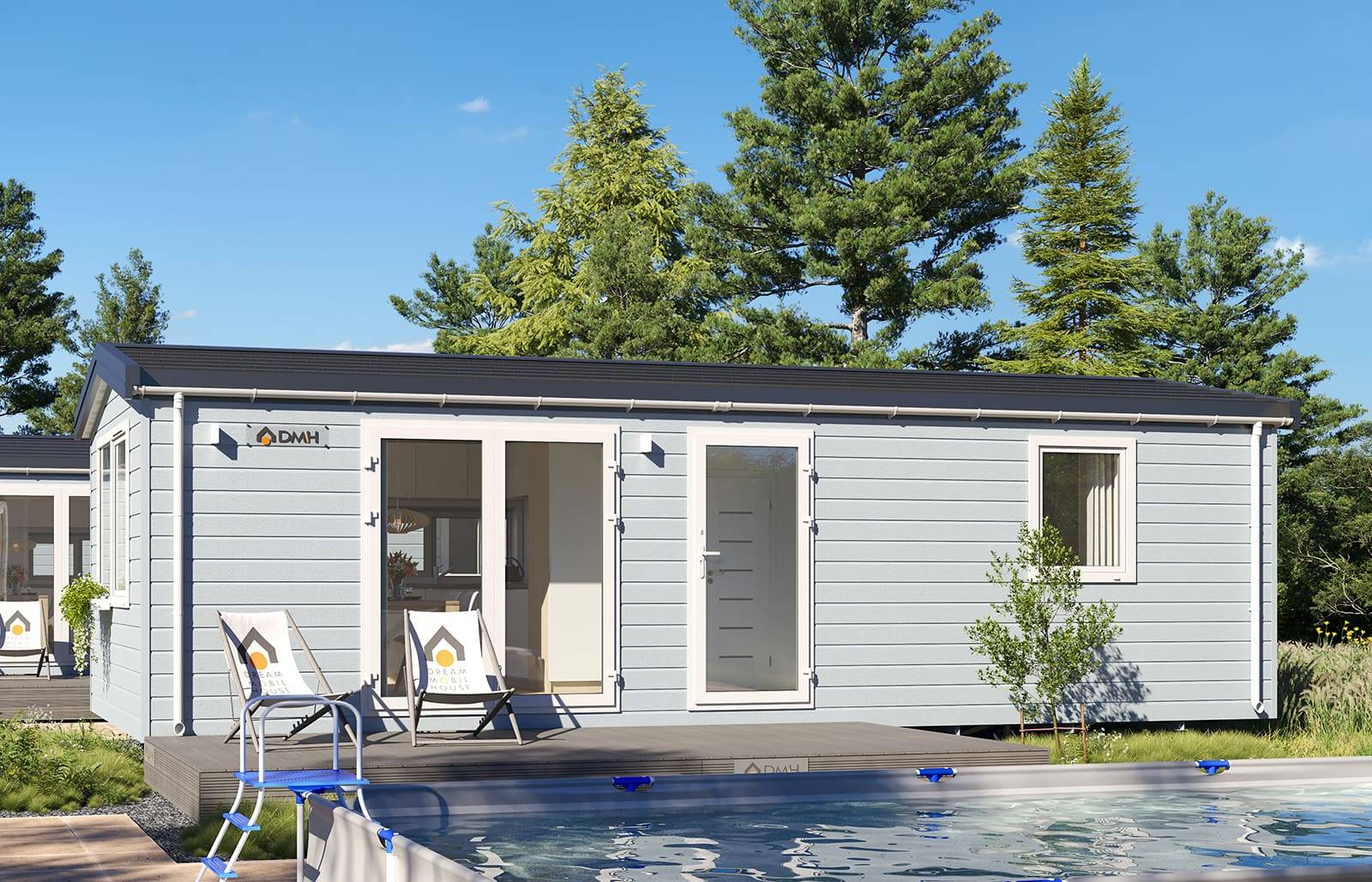

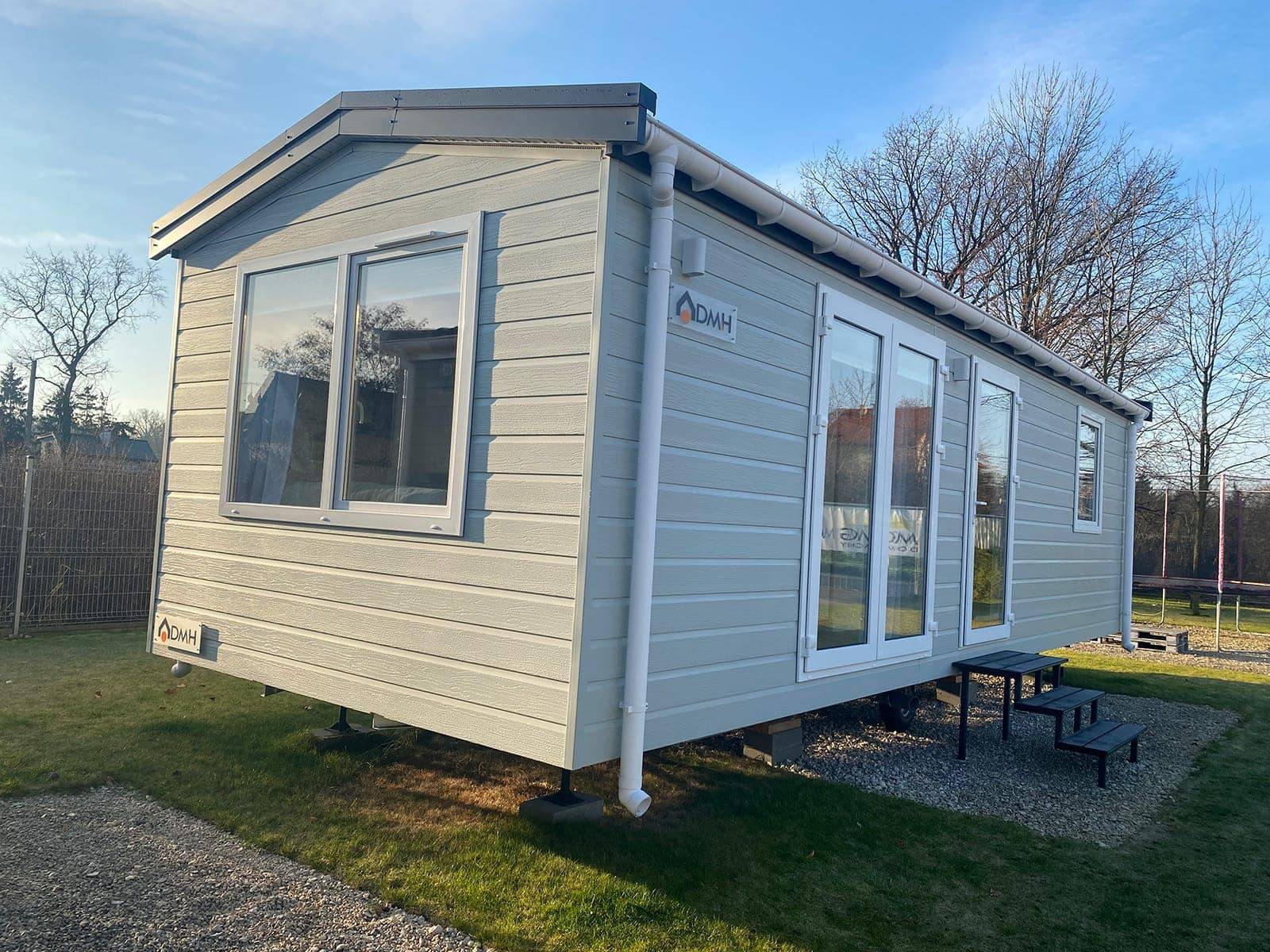

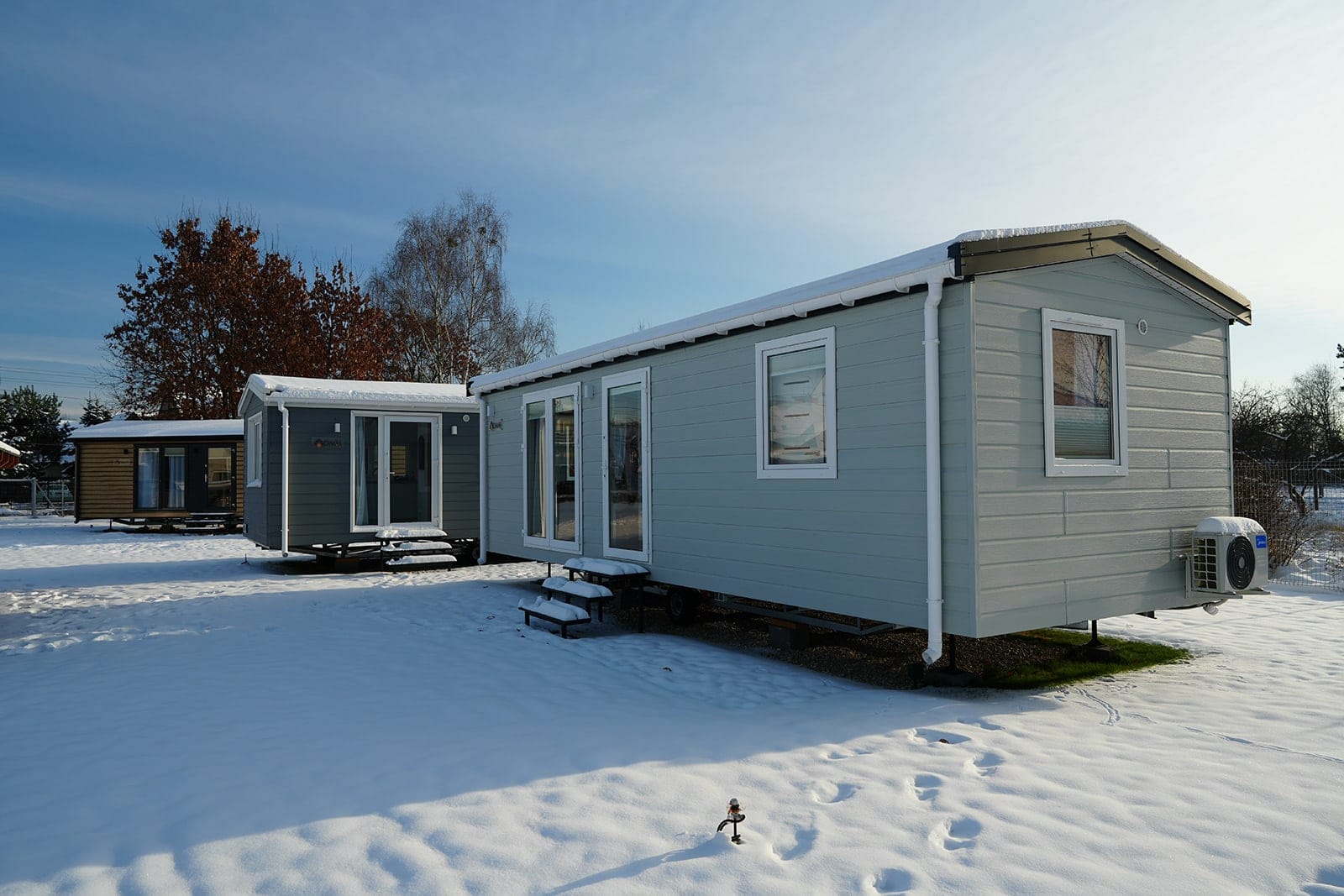

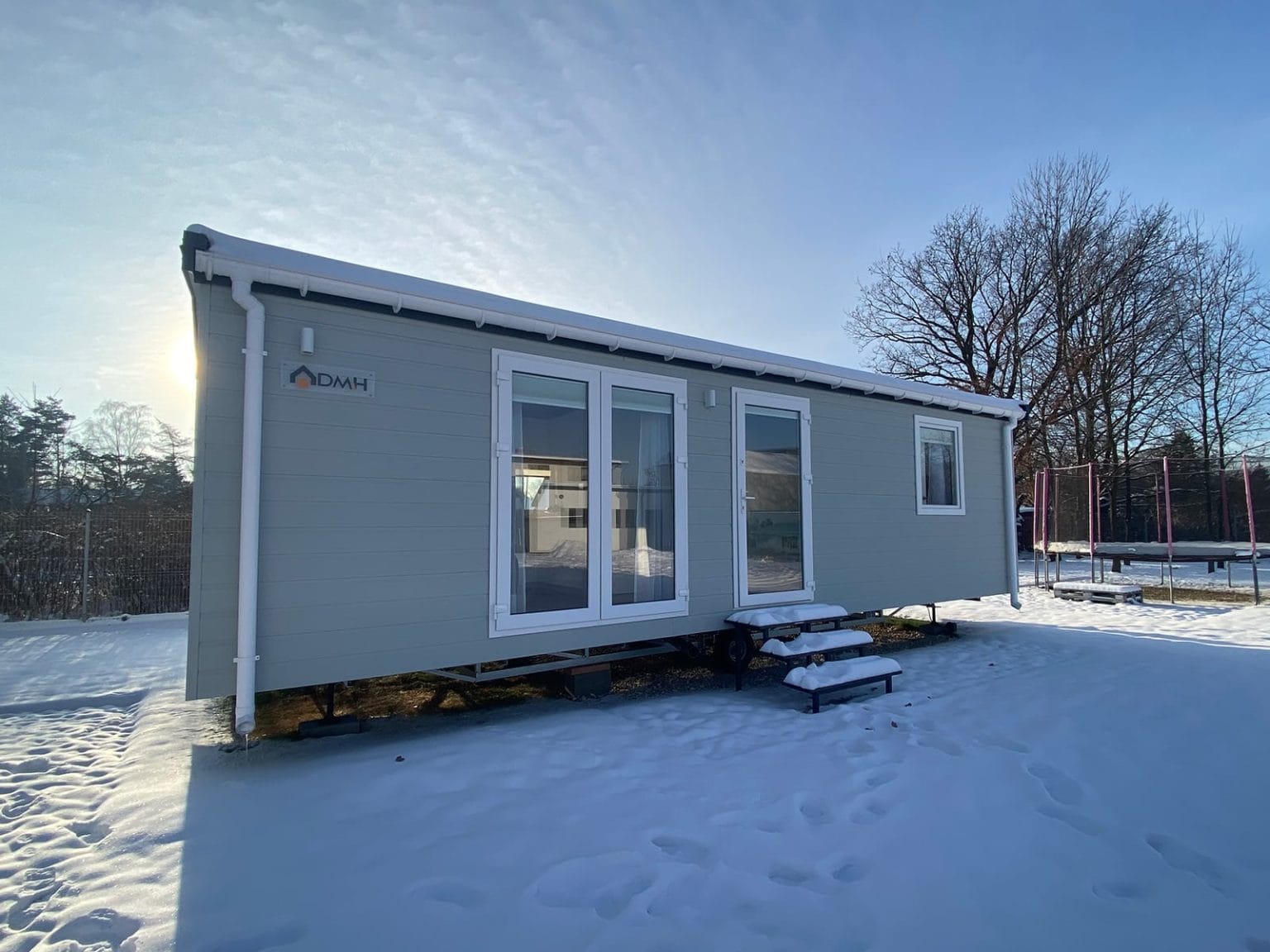

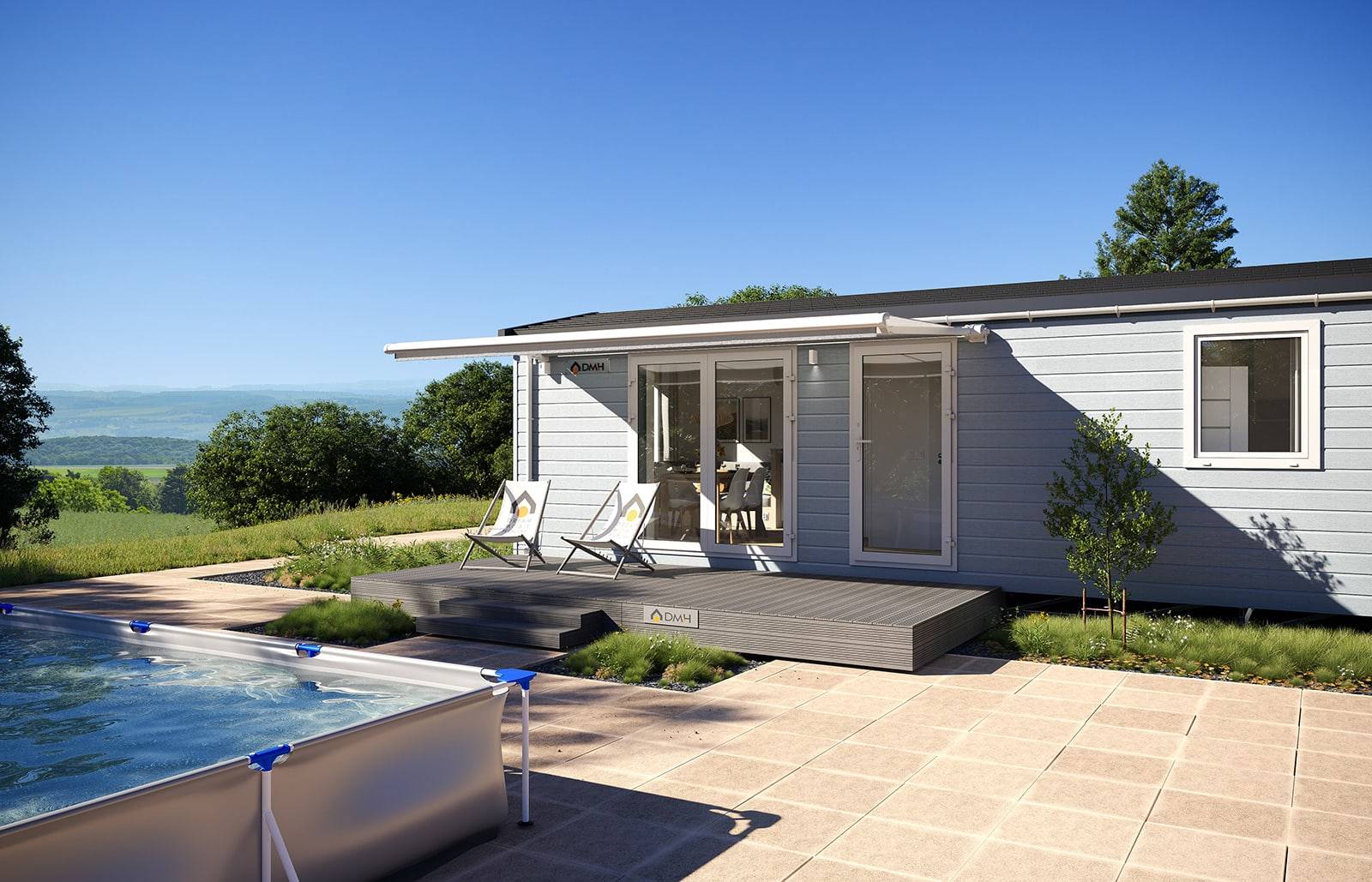

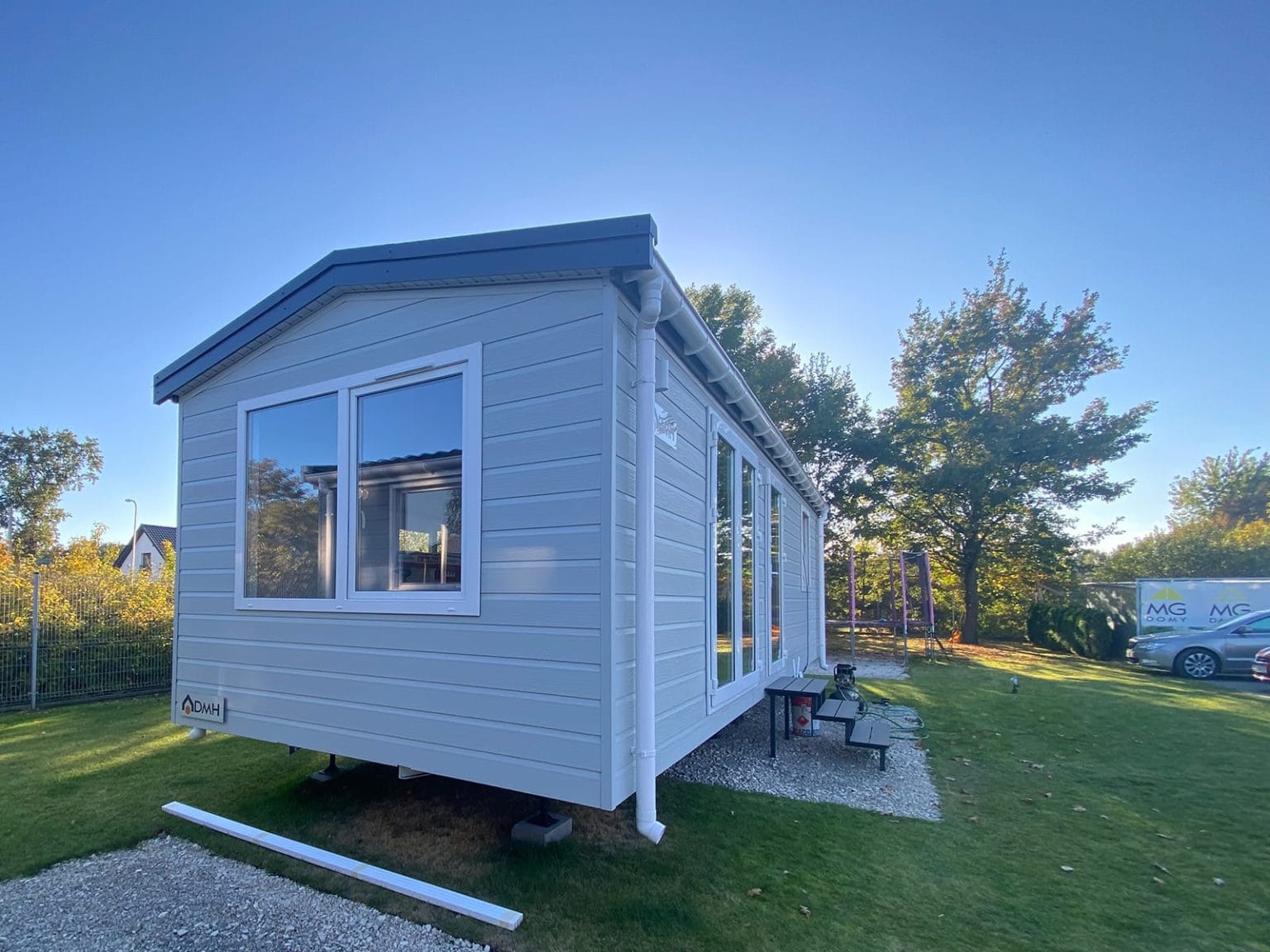

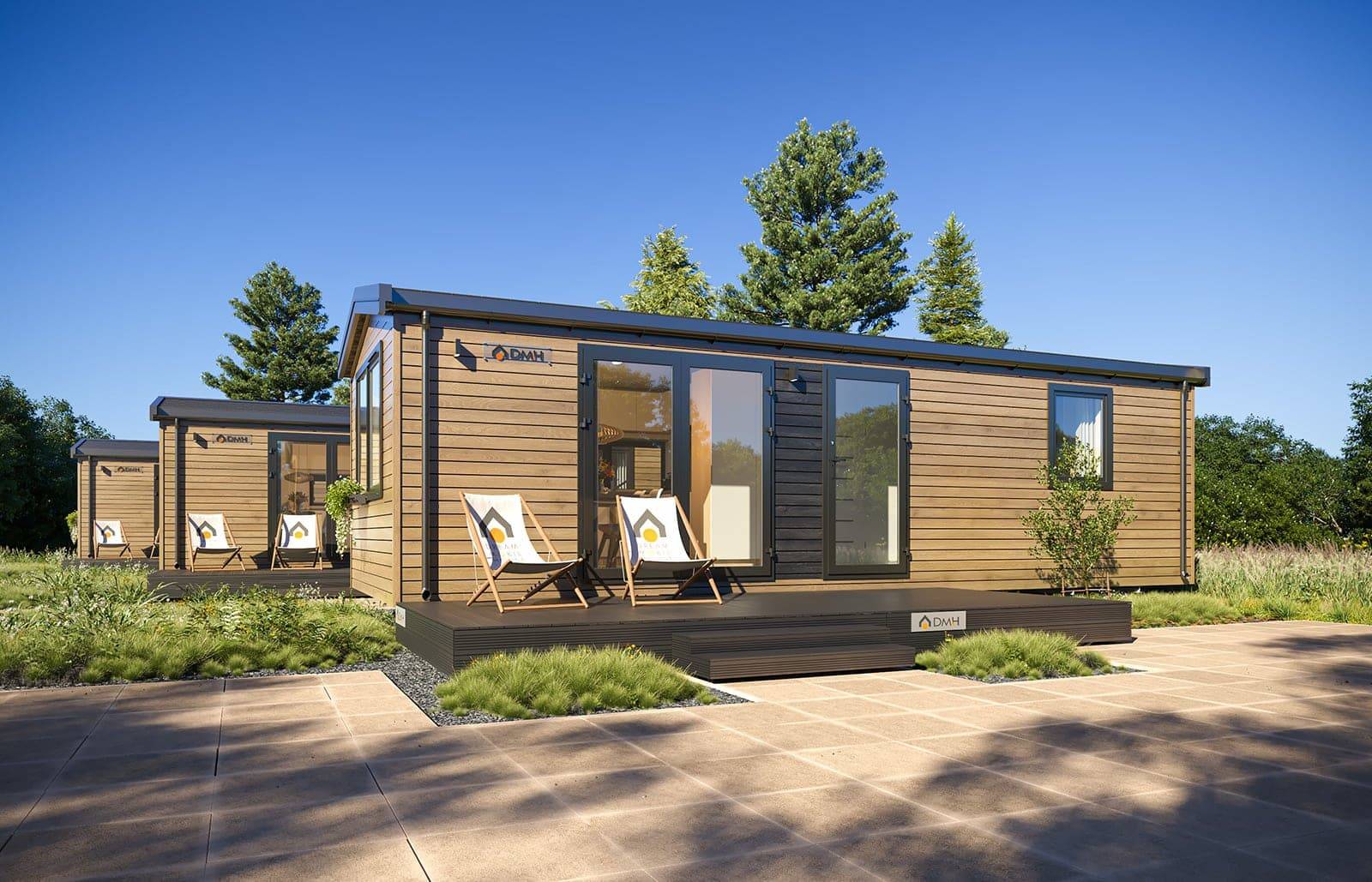

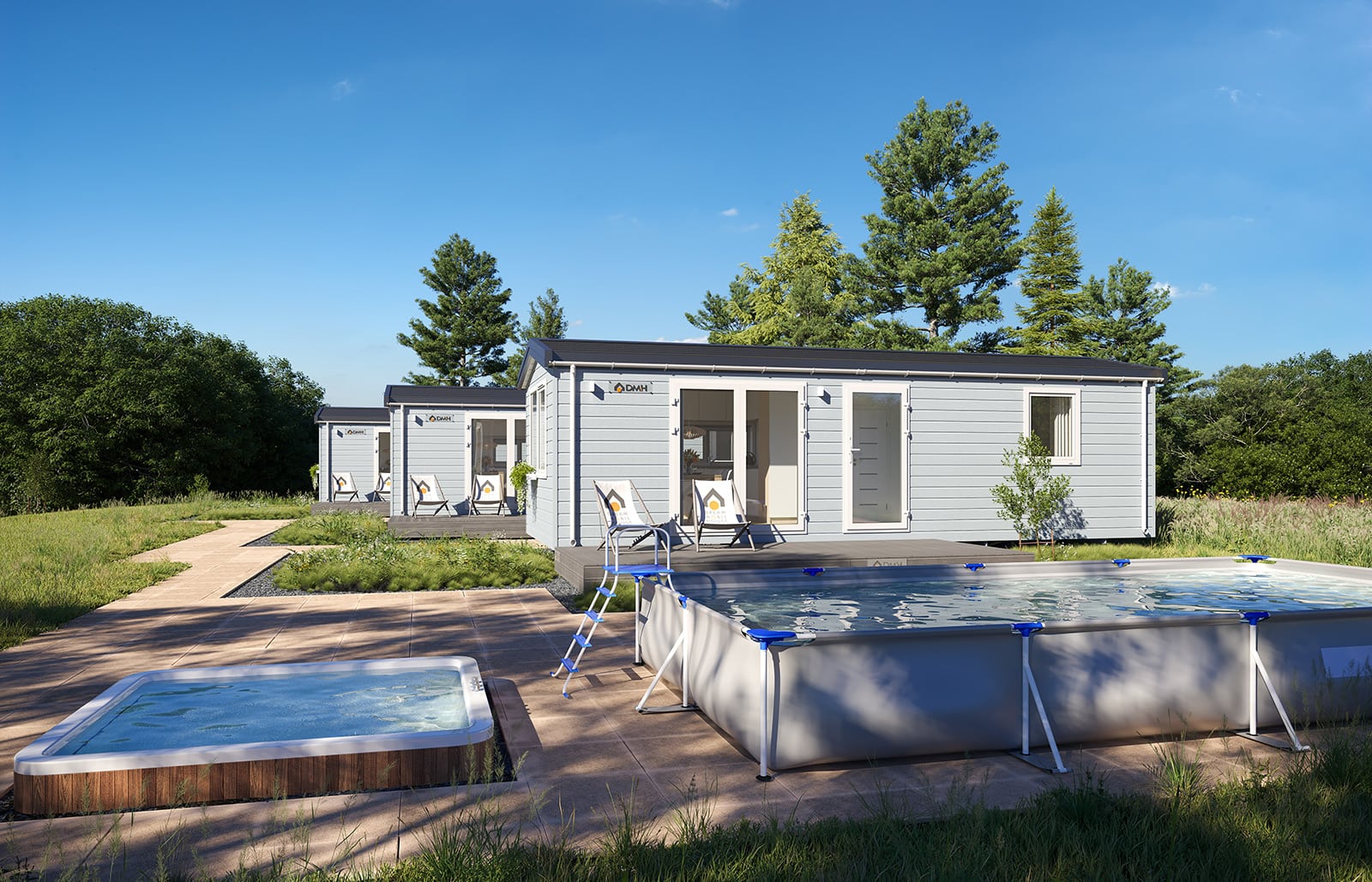

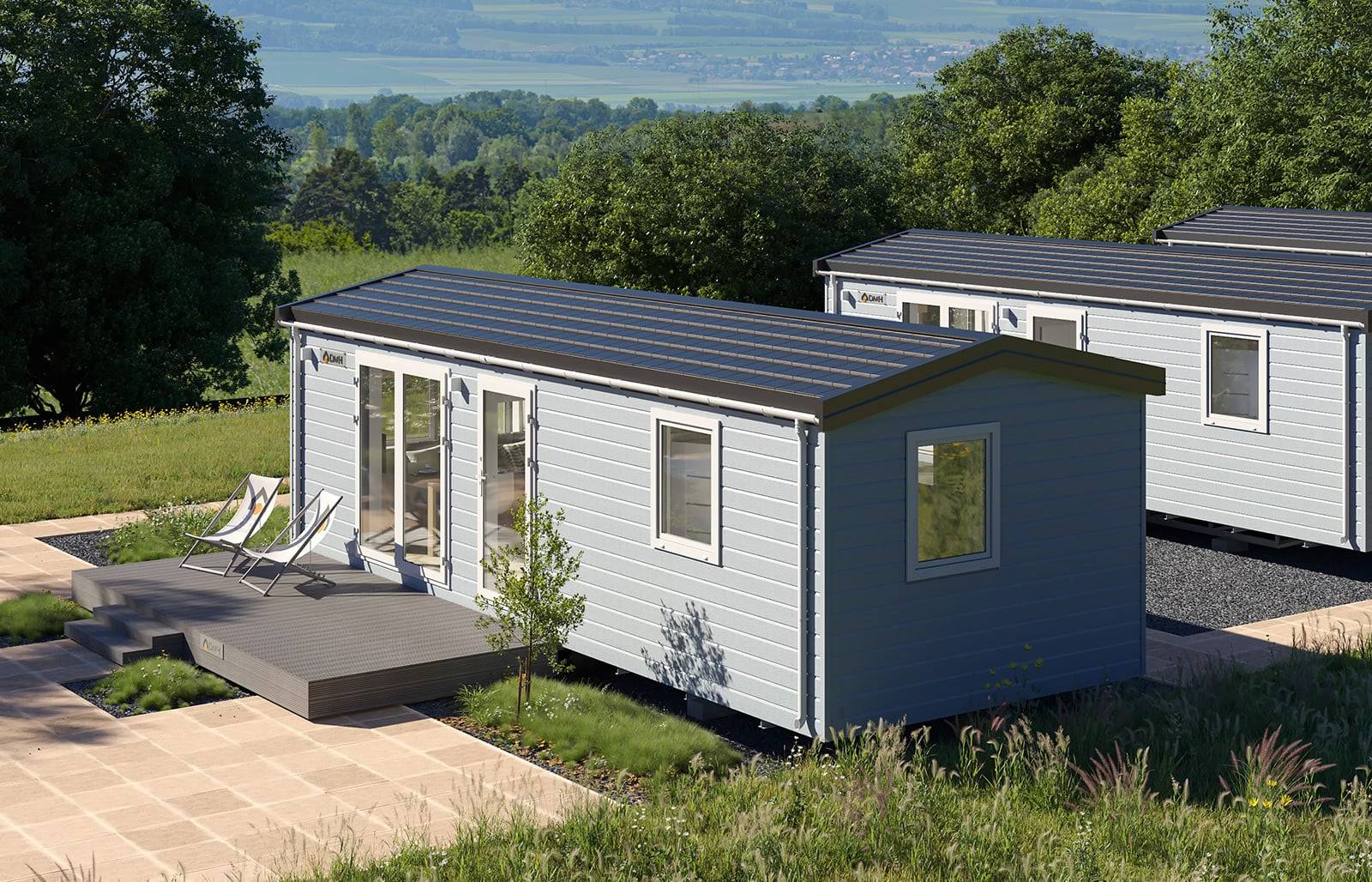

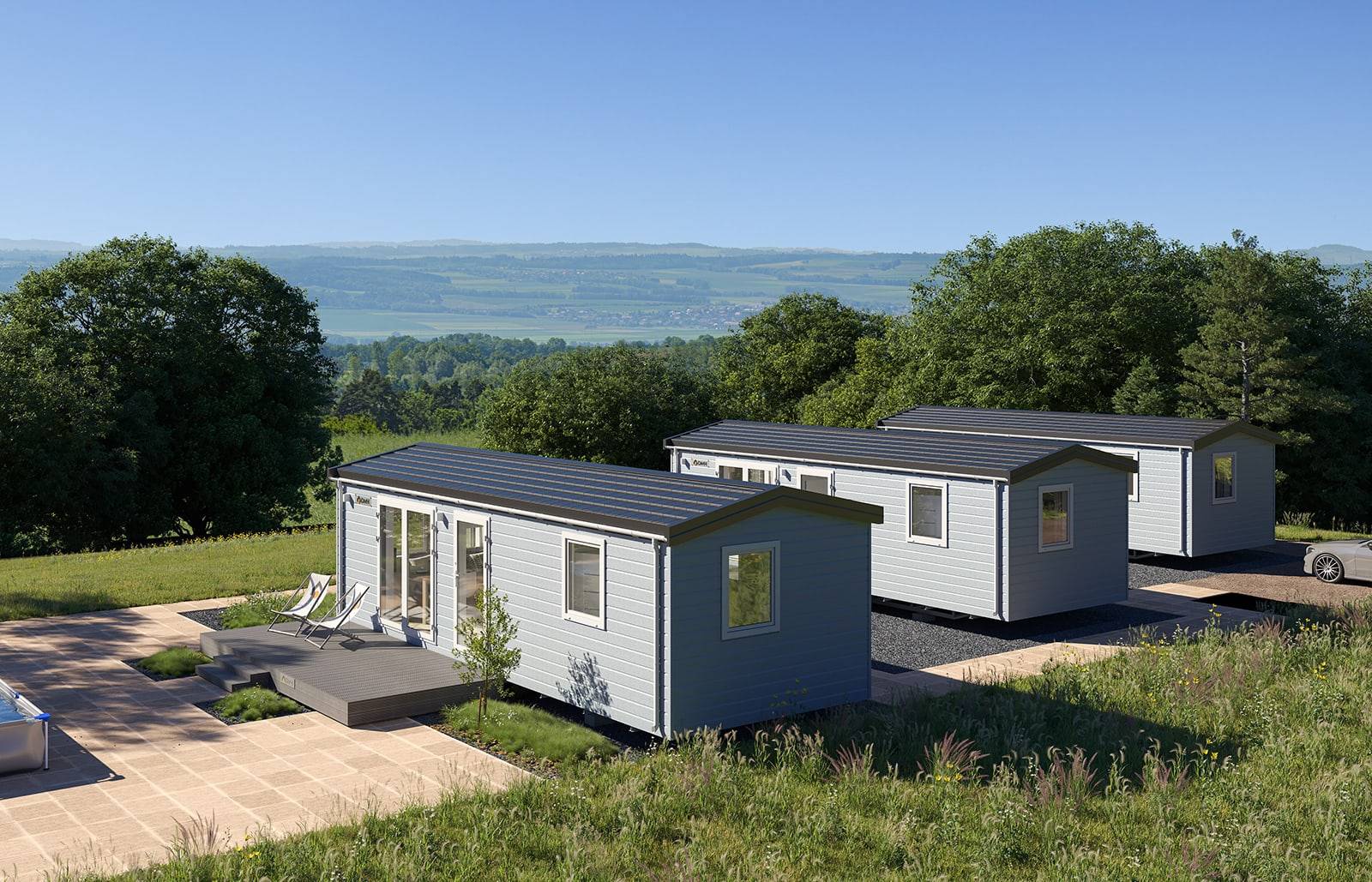

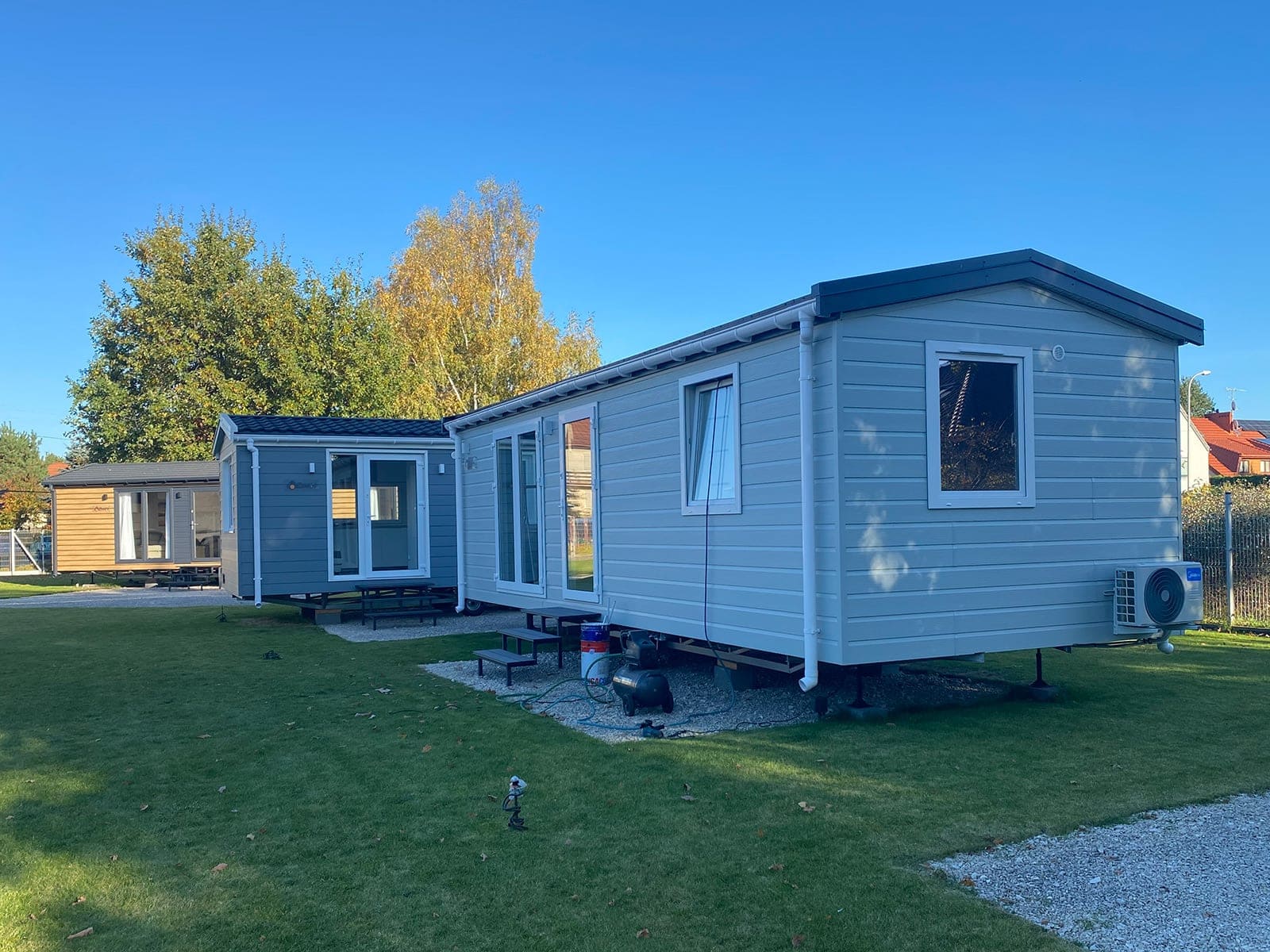

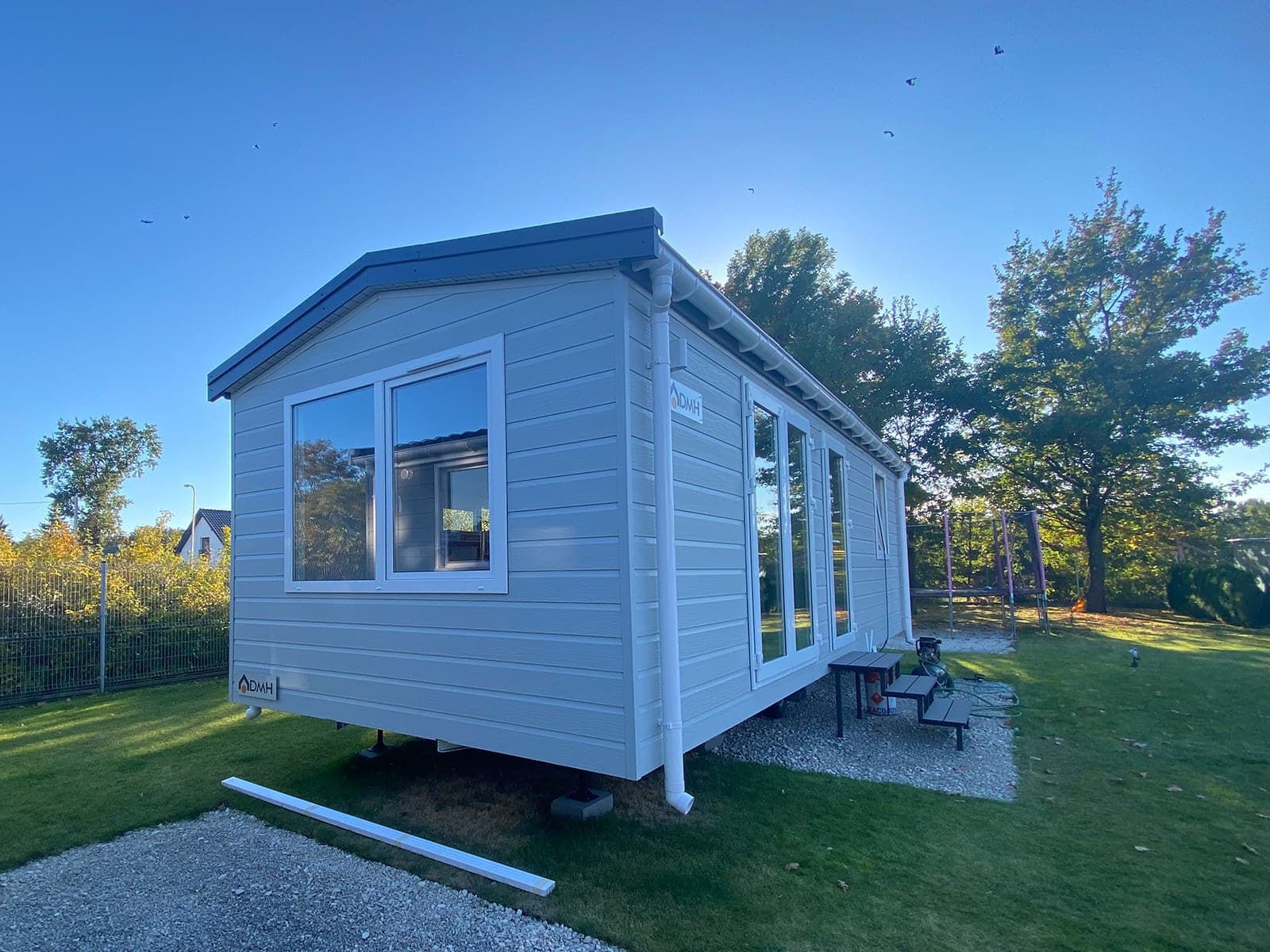

Exterior

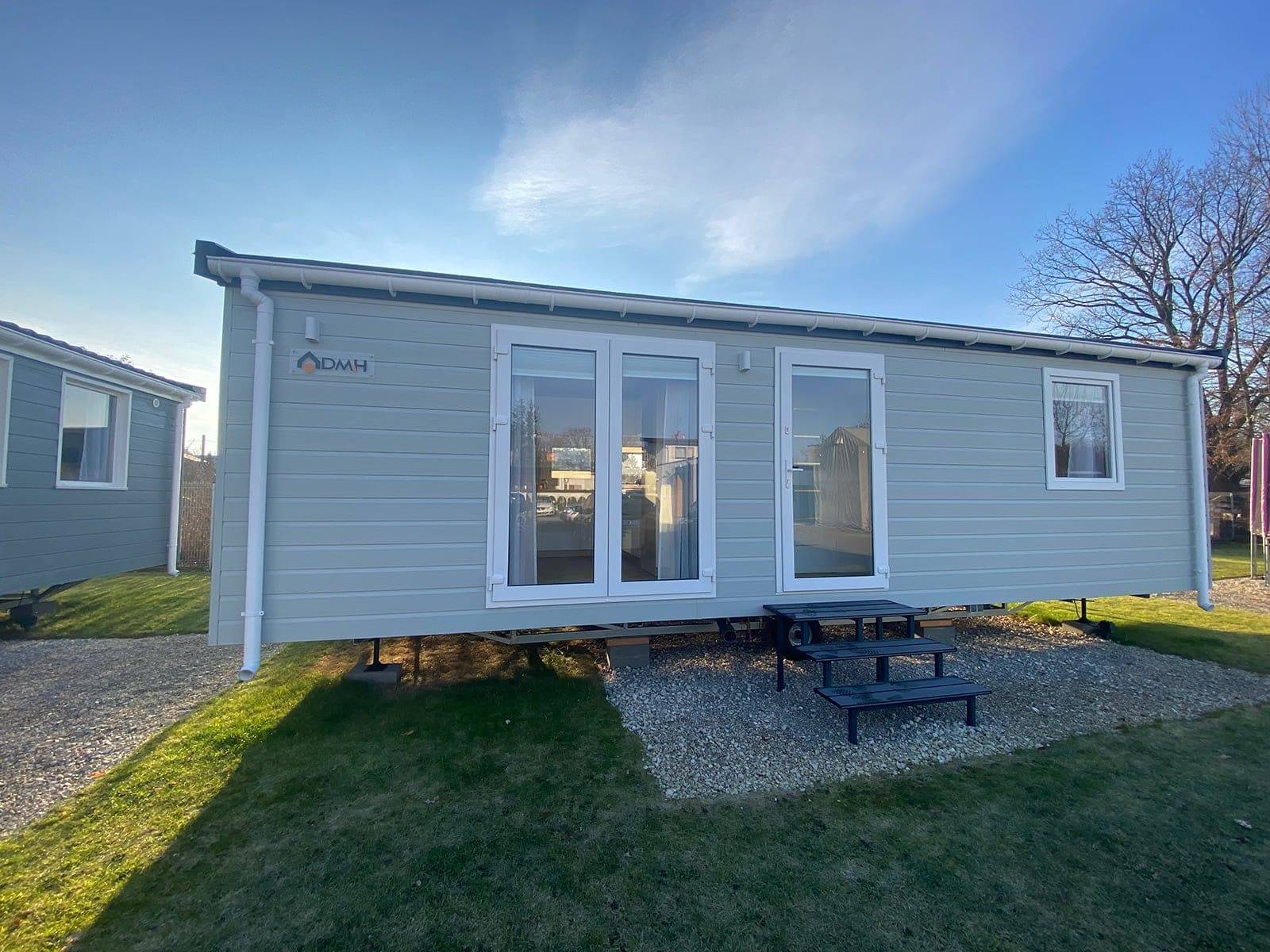

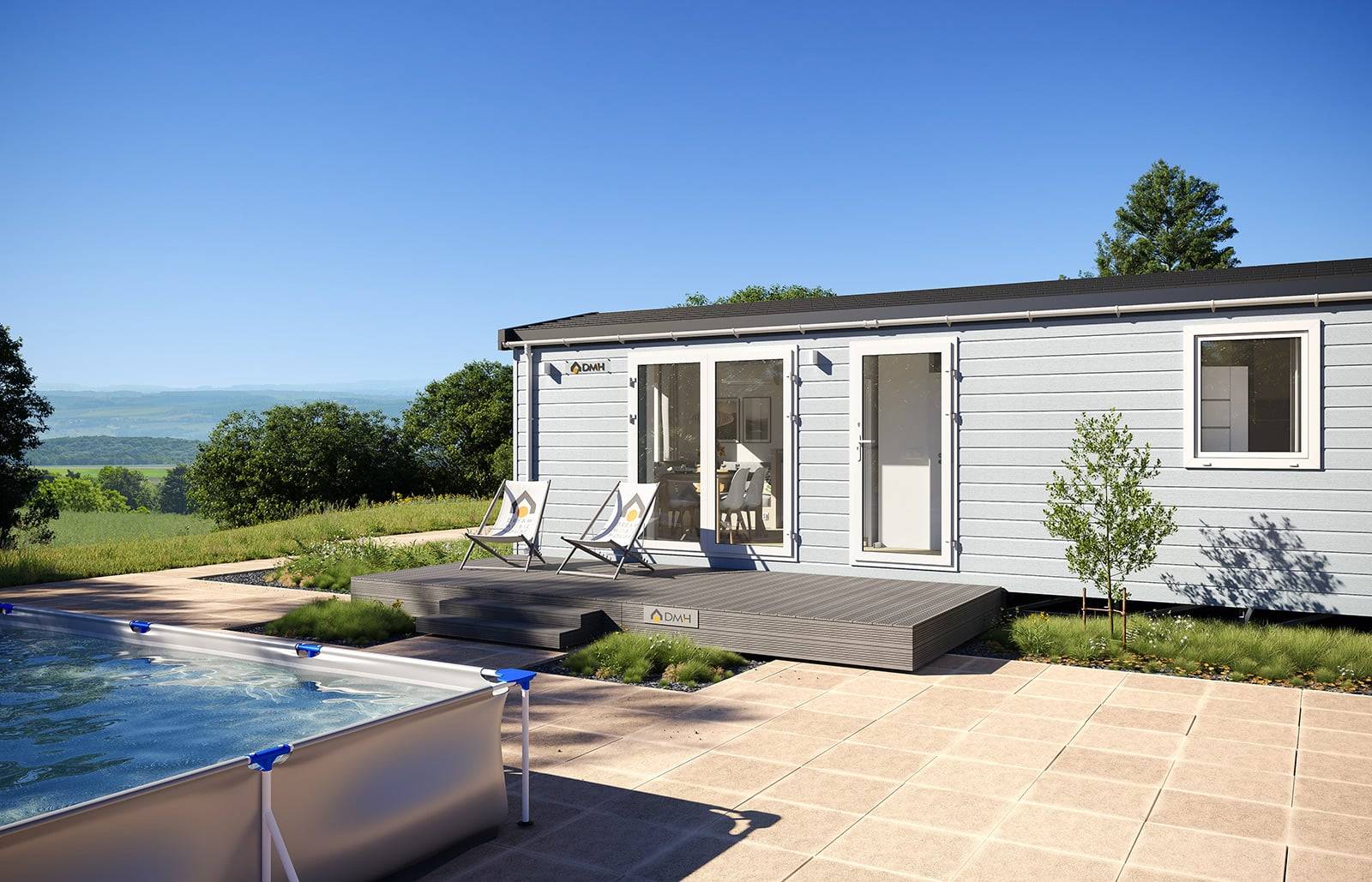

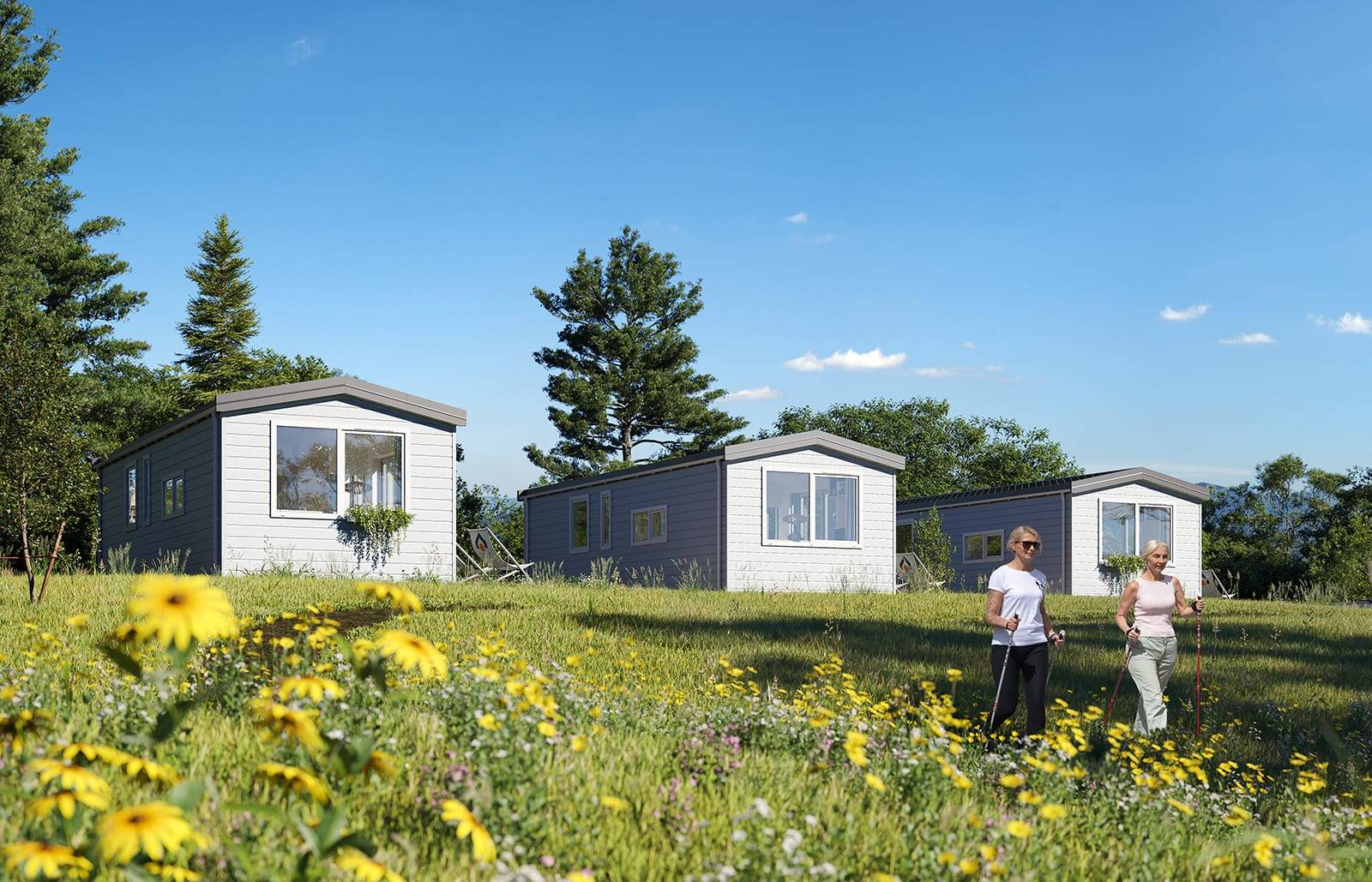

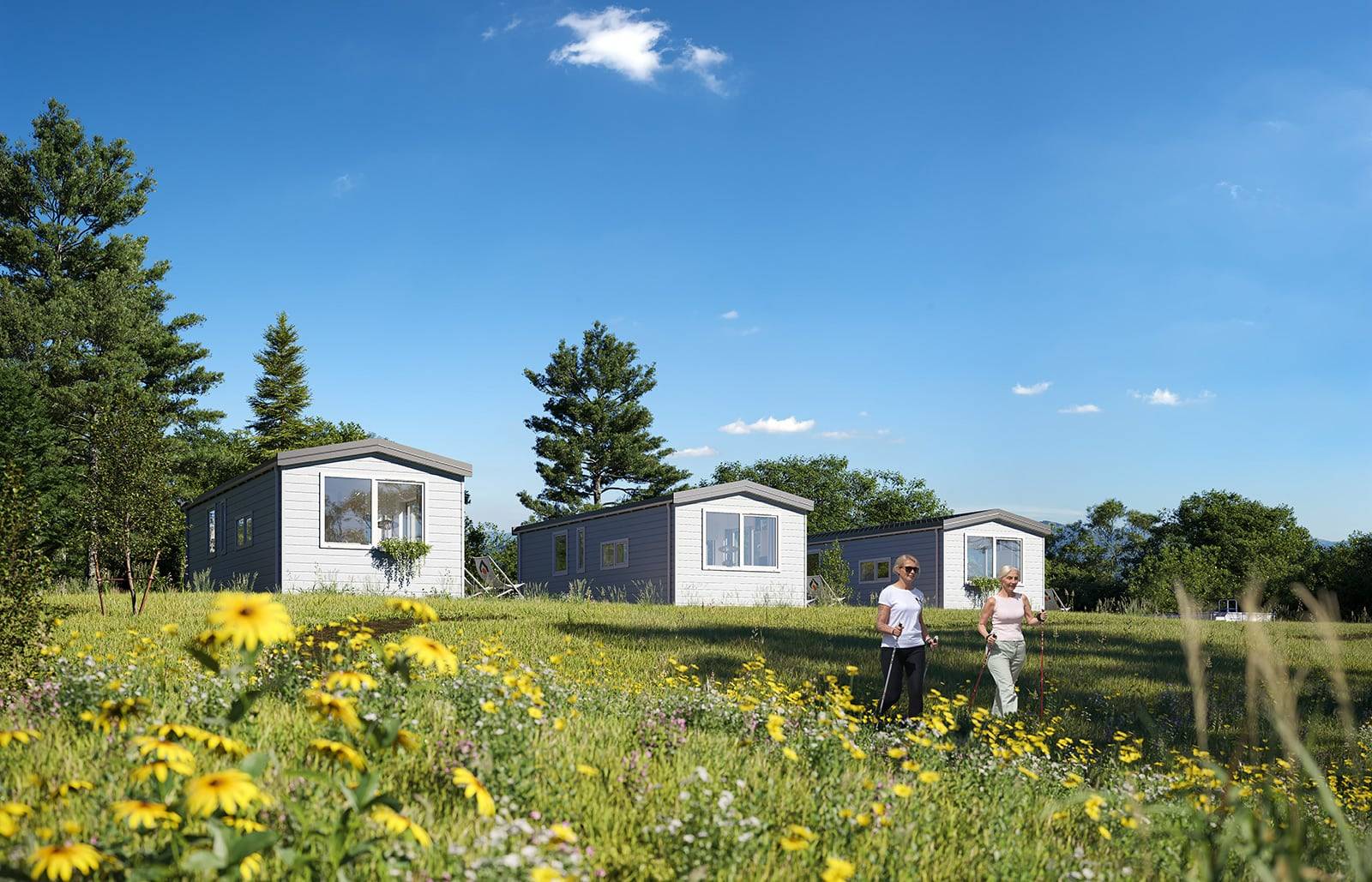

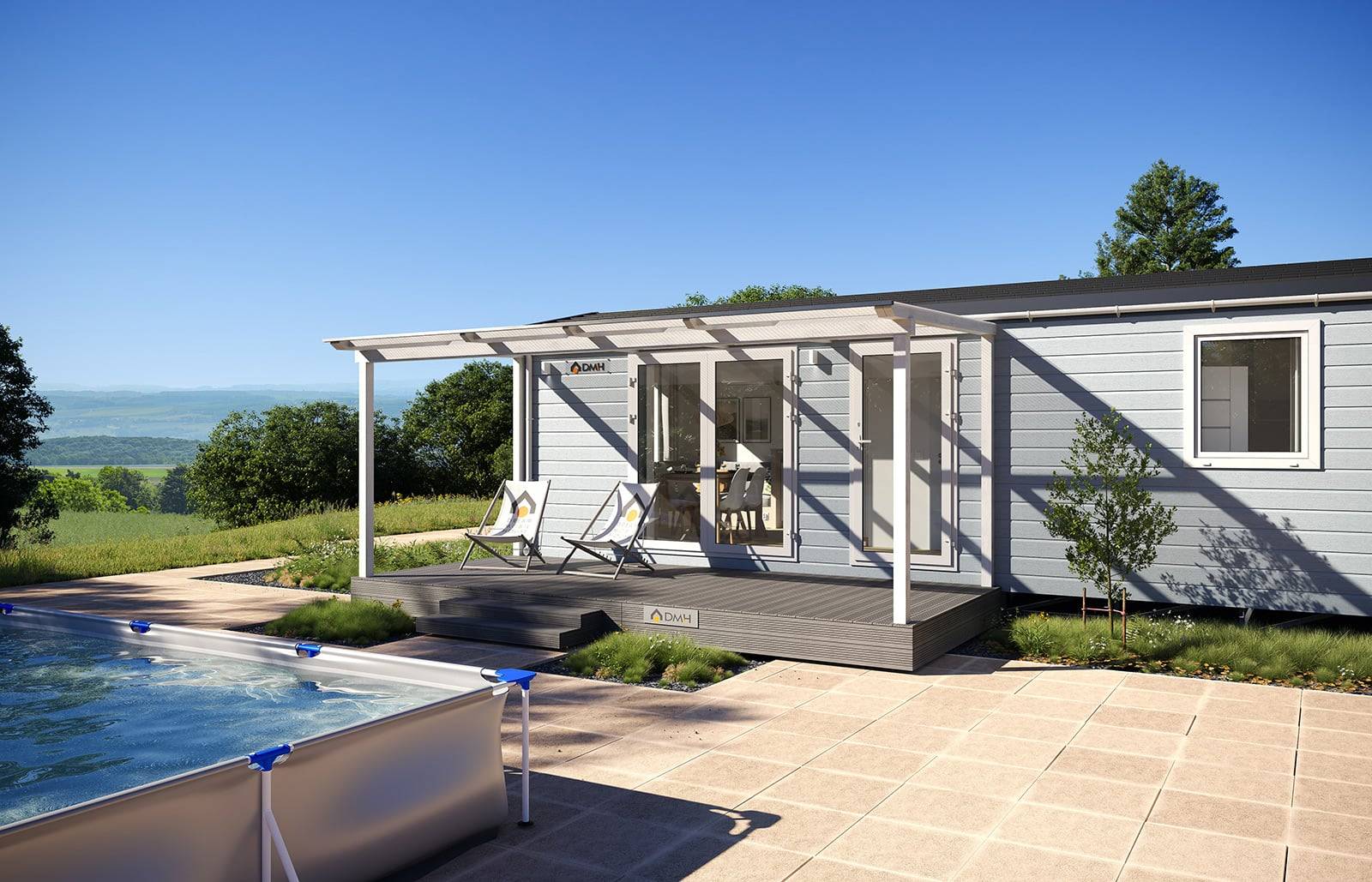

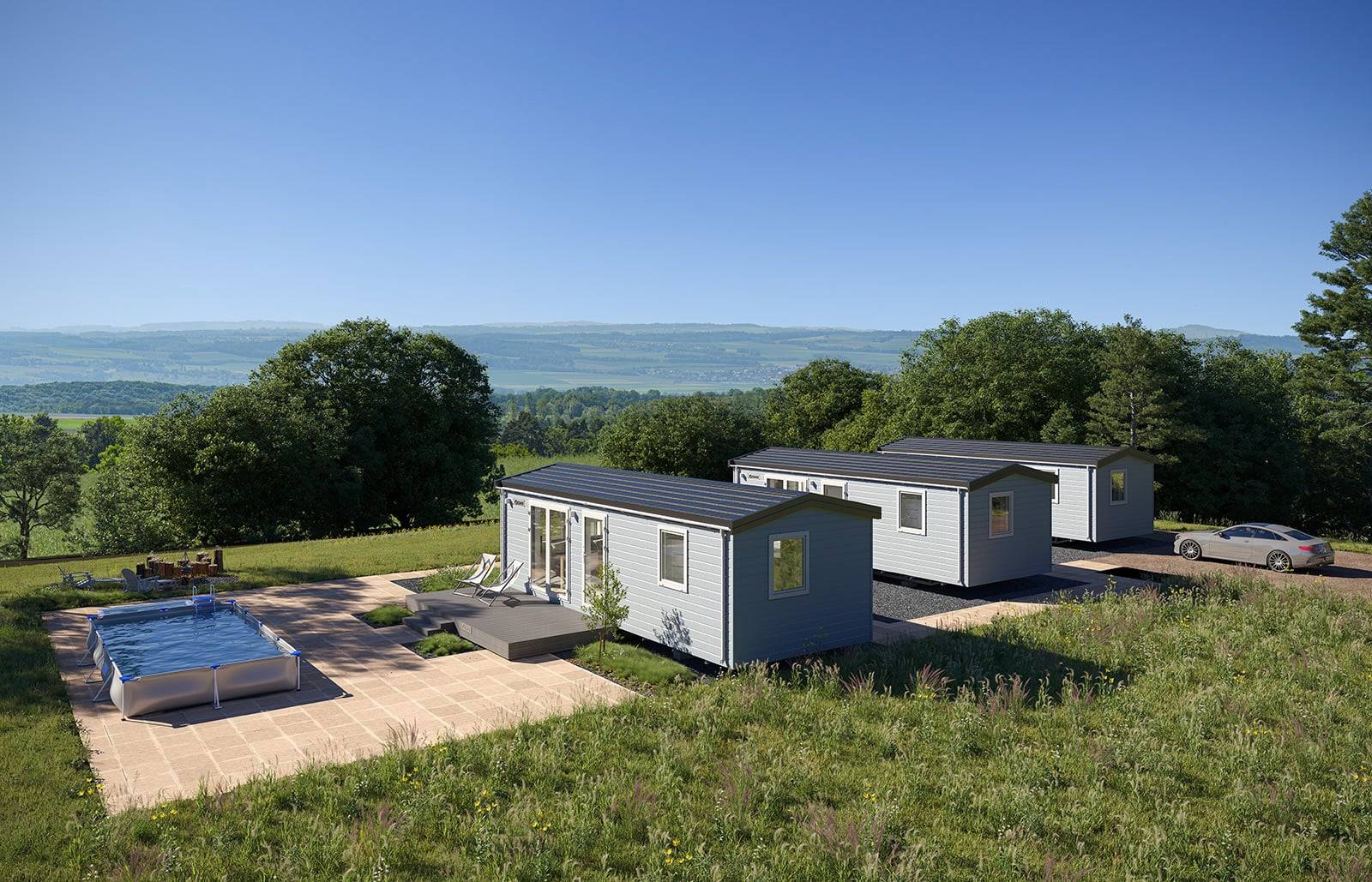

A rectangular body with a 12° pitched roof (the pitch can be increased according to local plot requirements). A modern light facade; materials and colours made to measure.

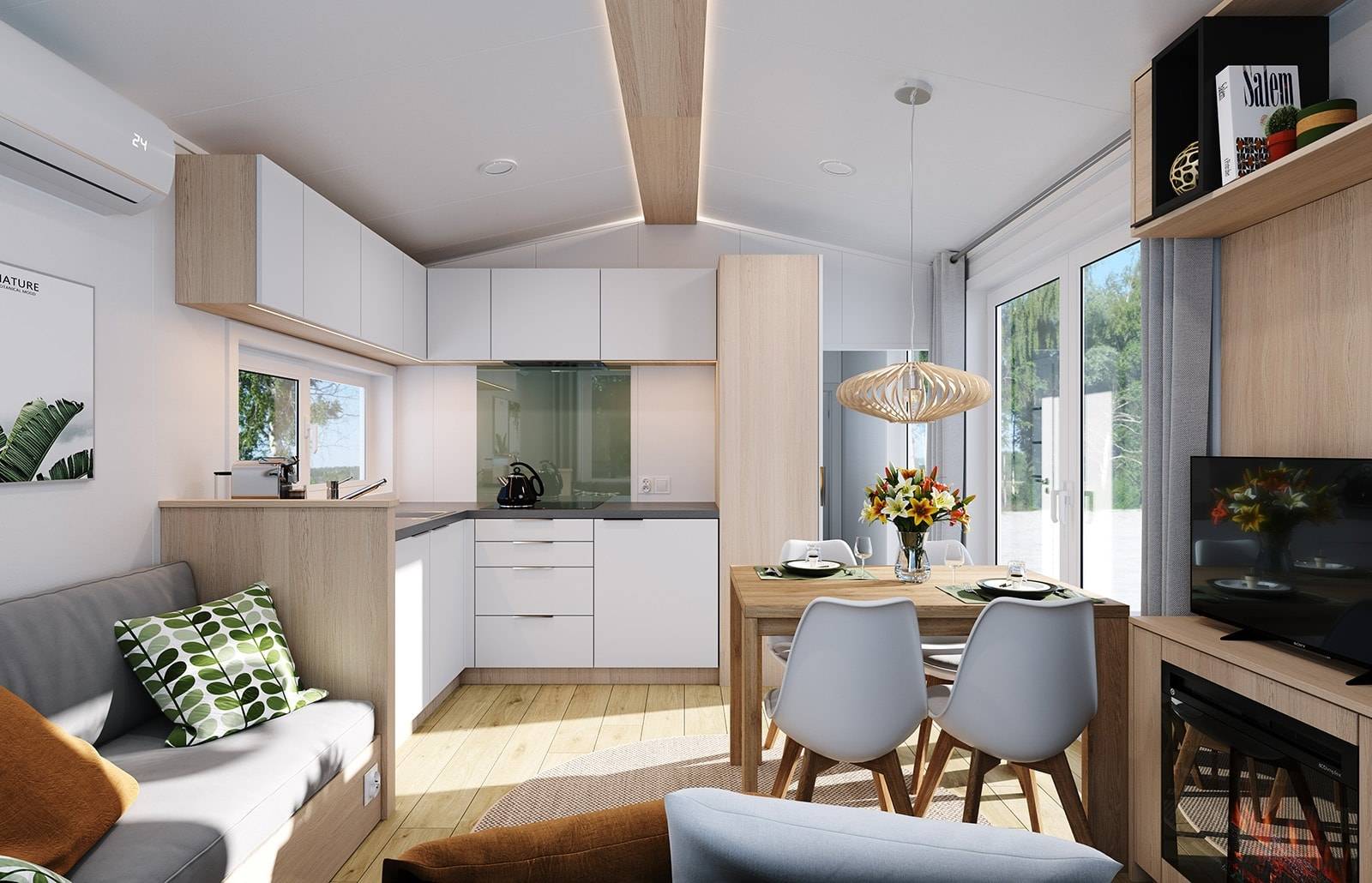

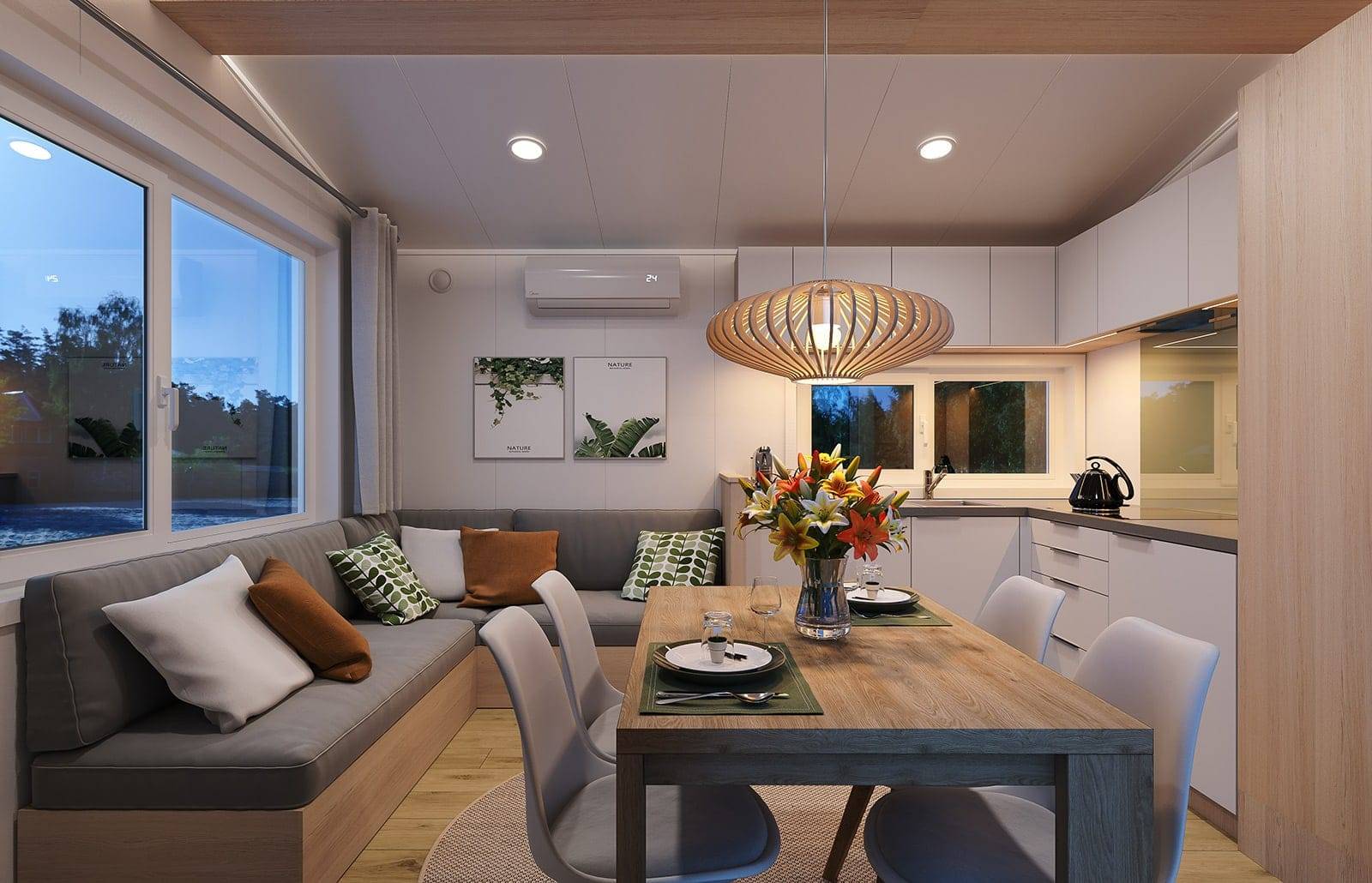

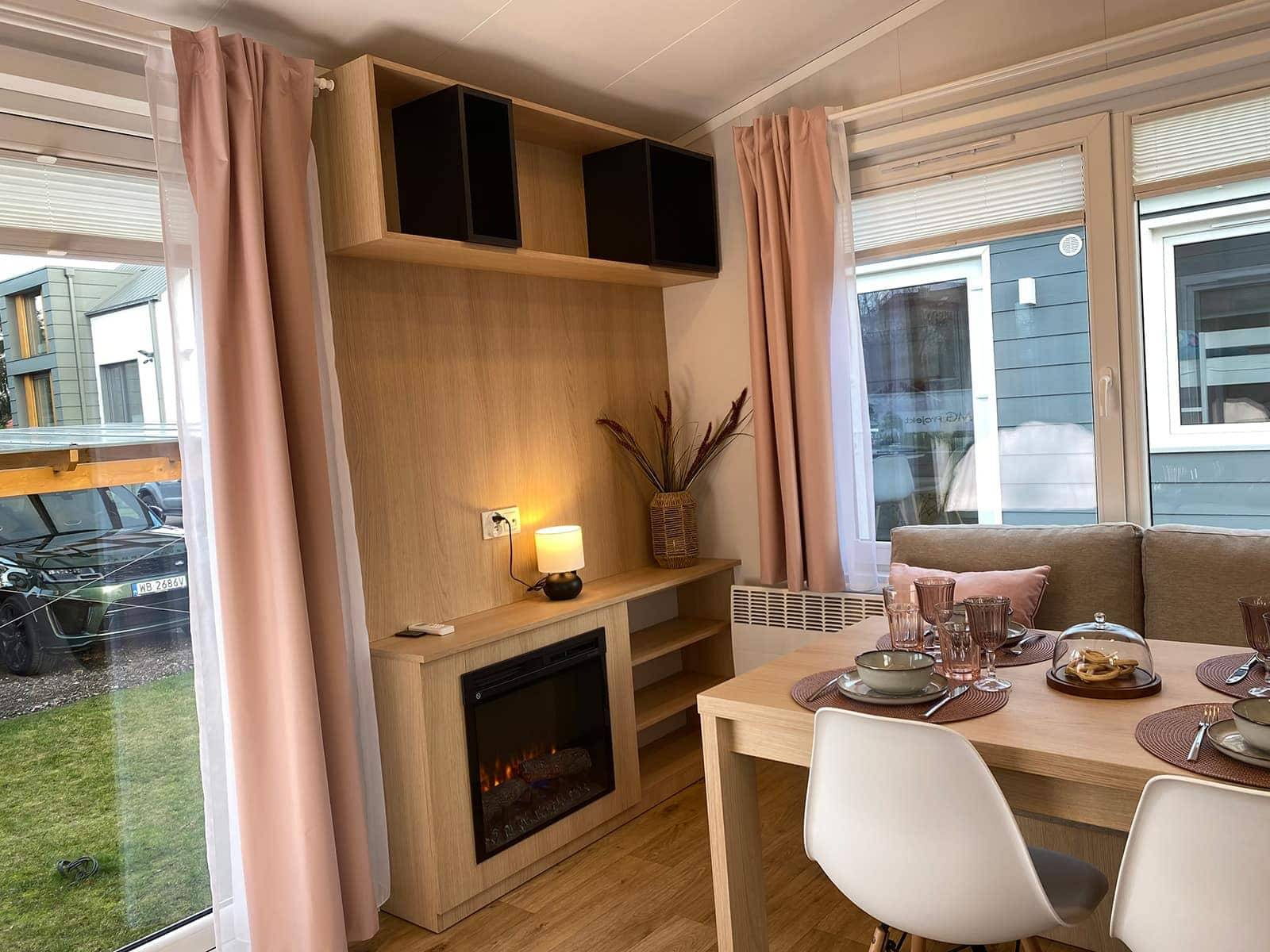

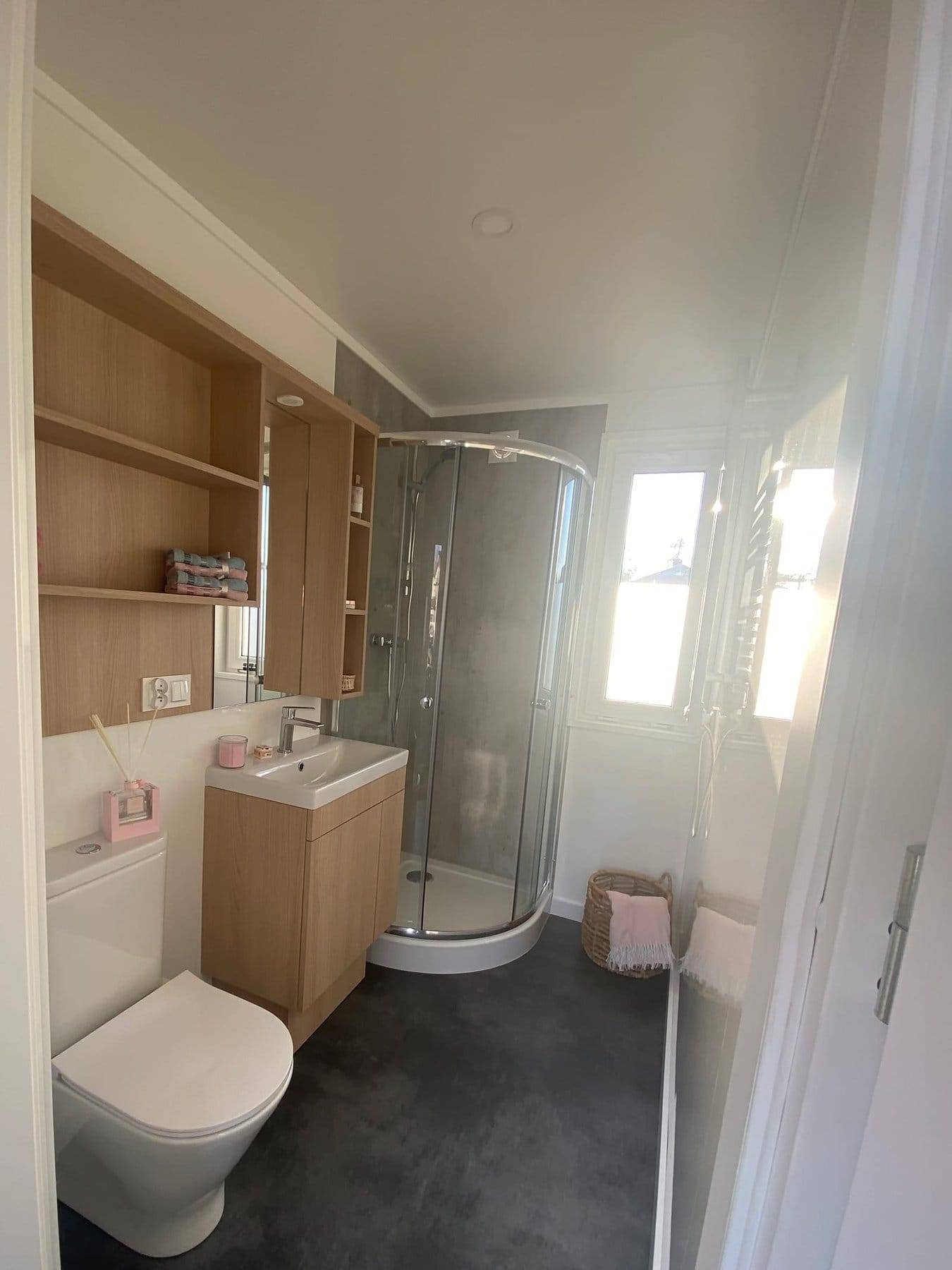

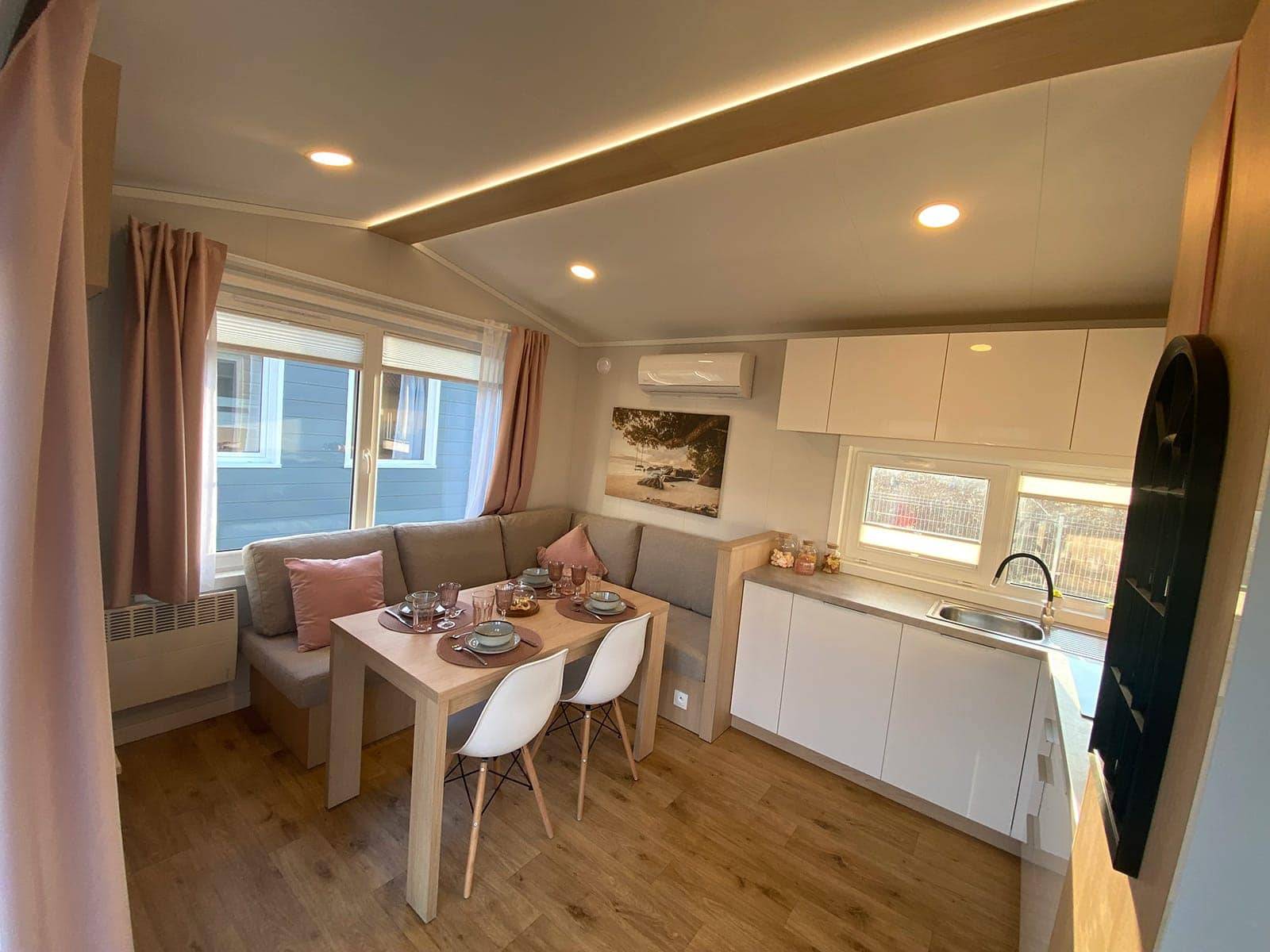

Interior

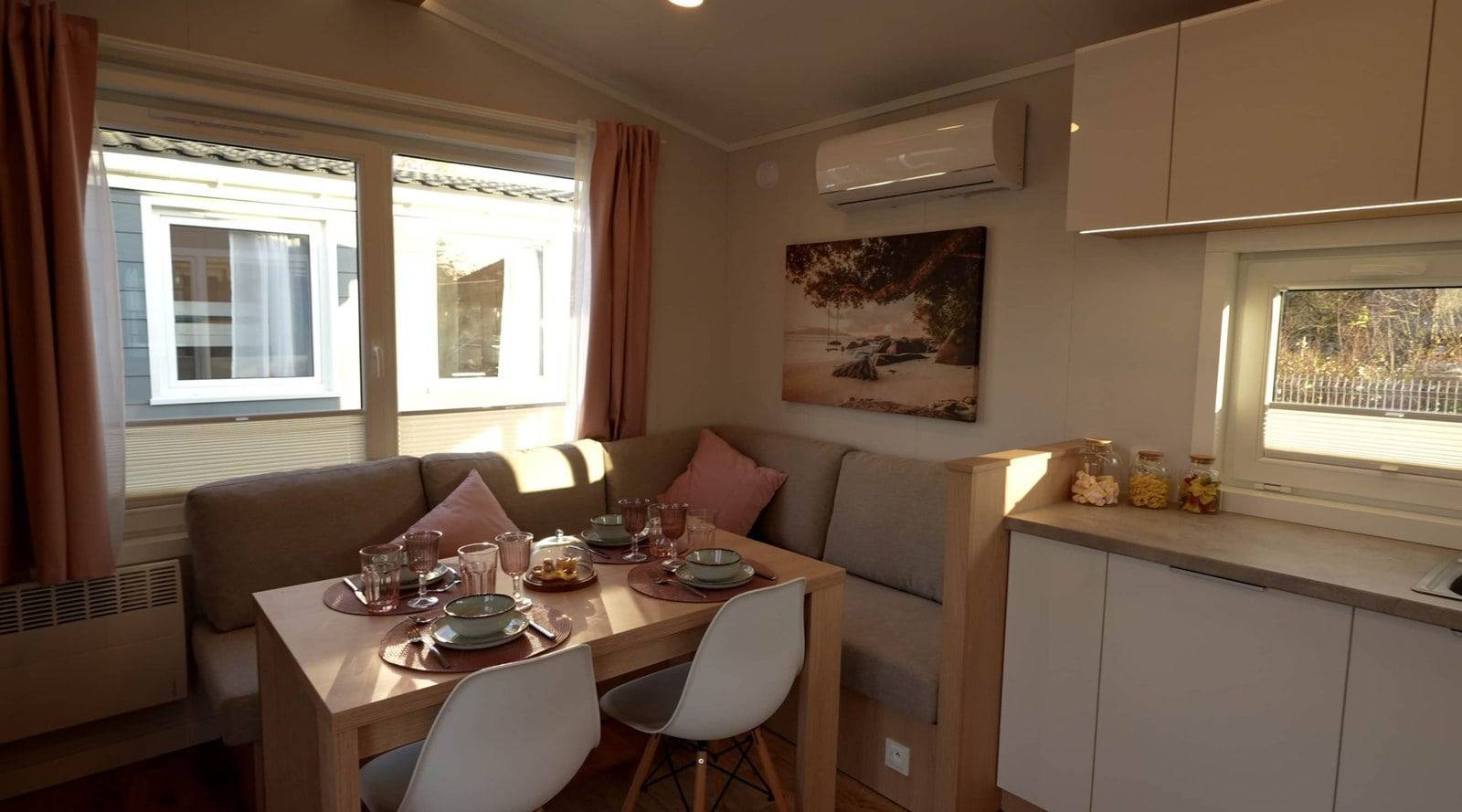

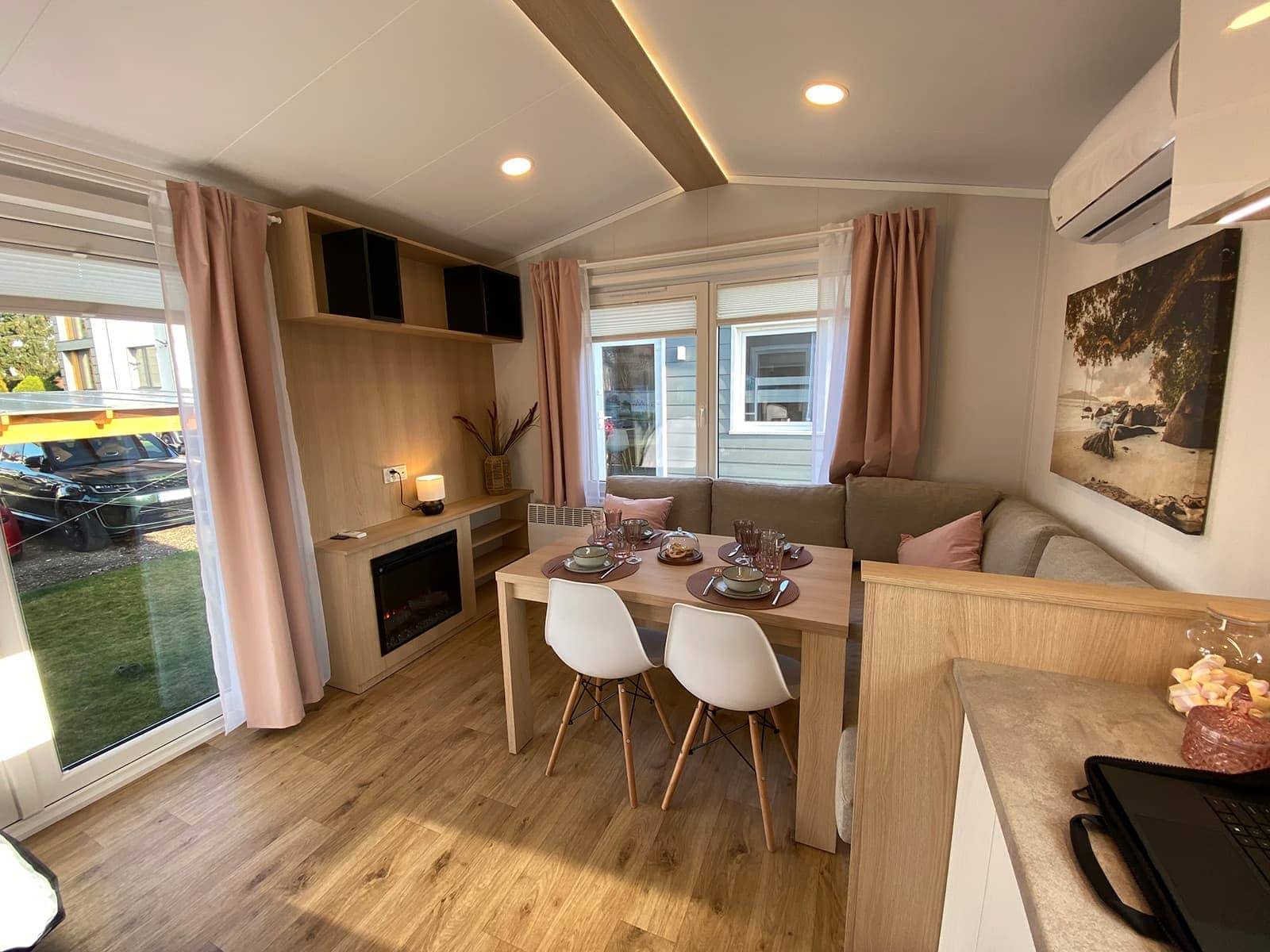

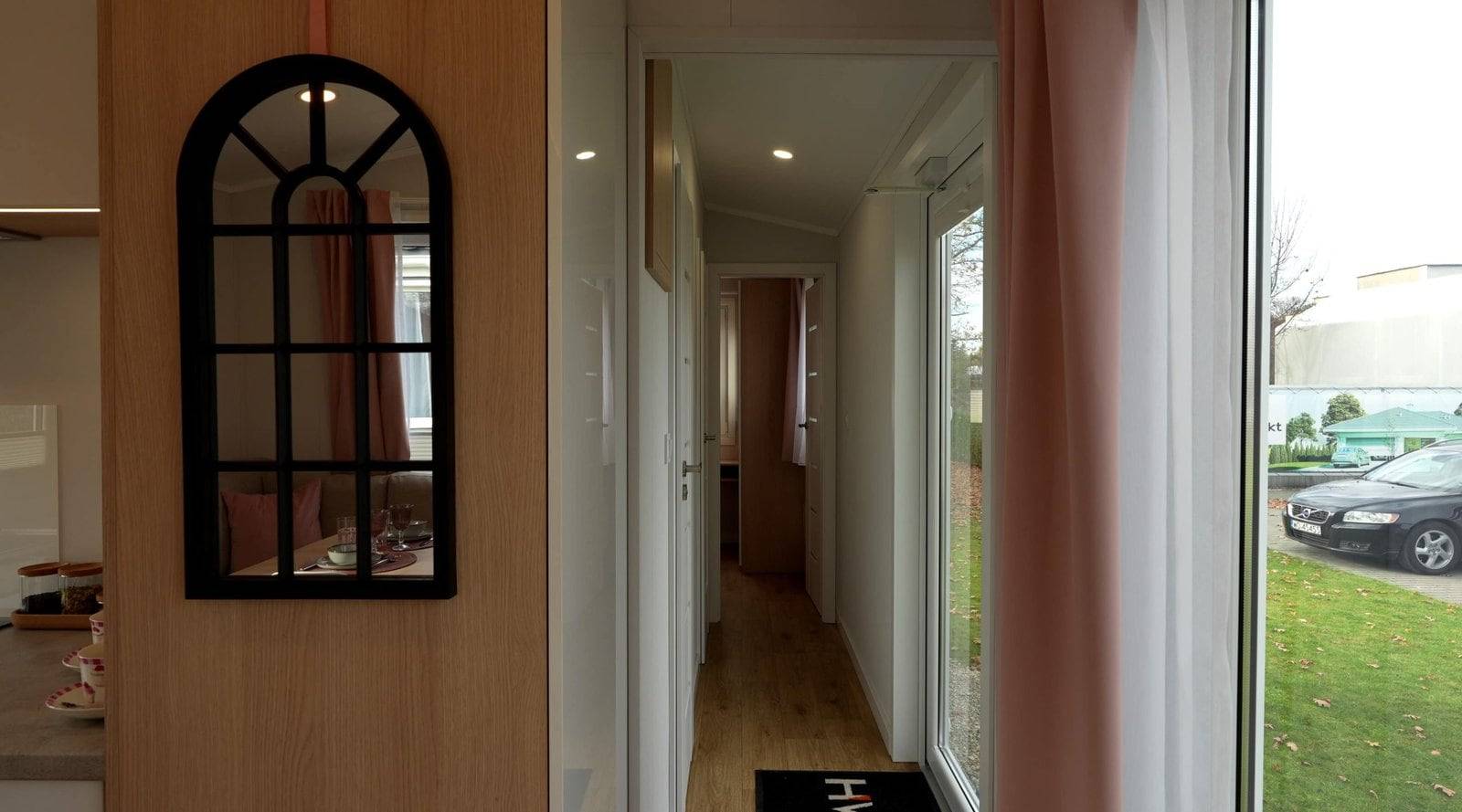

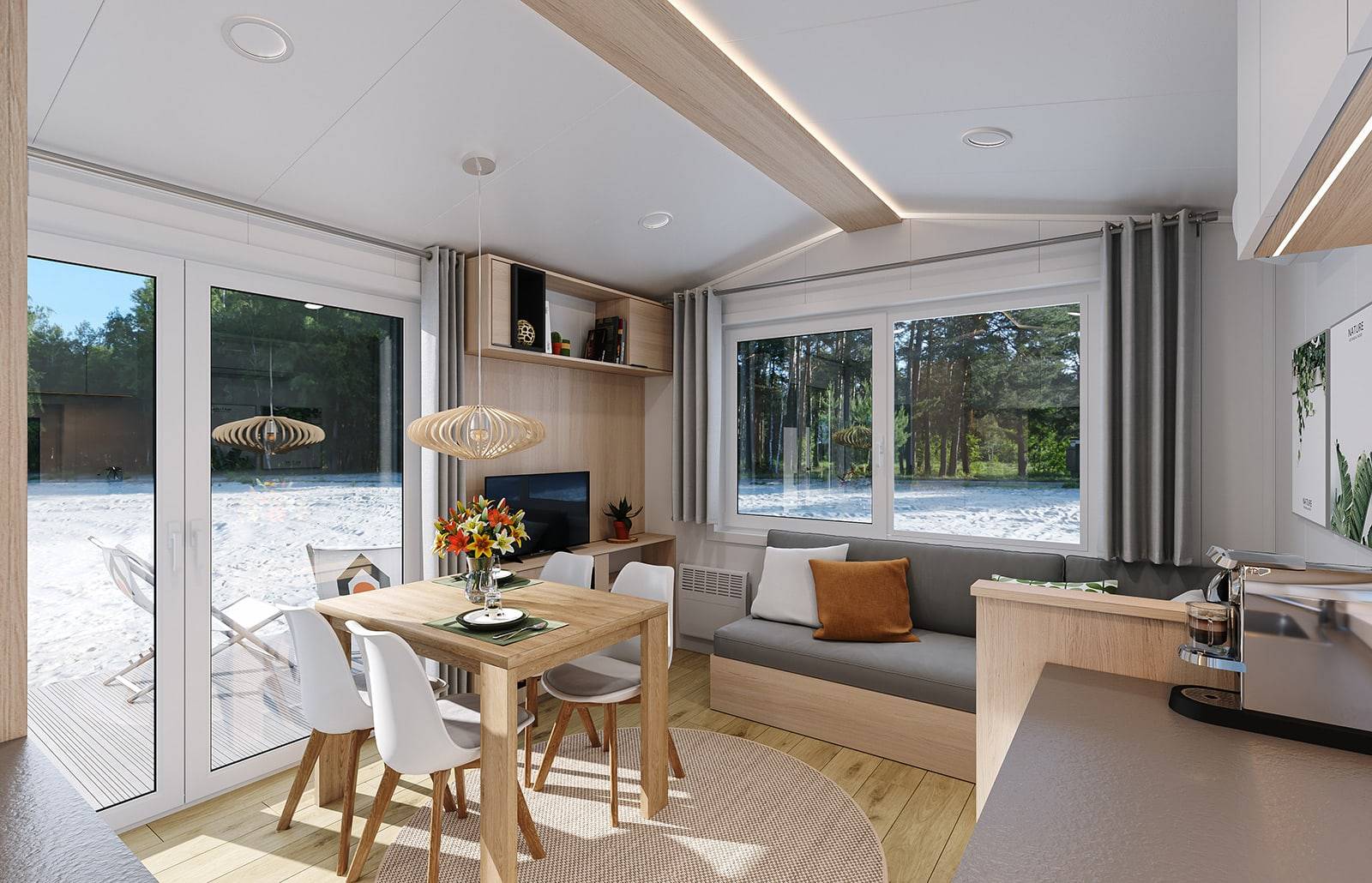

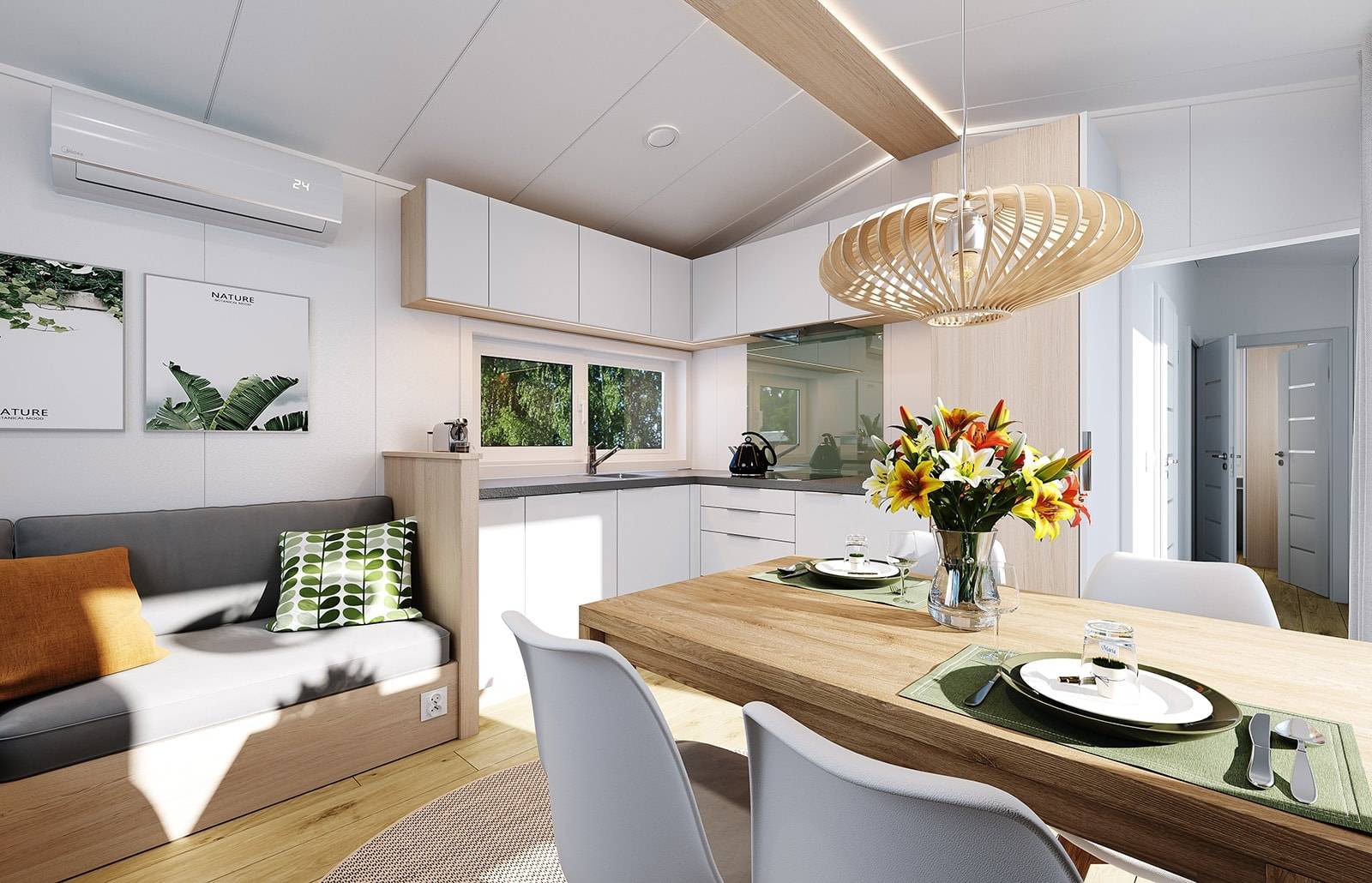

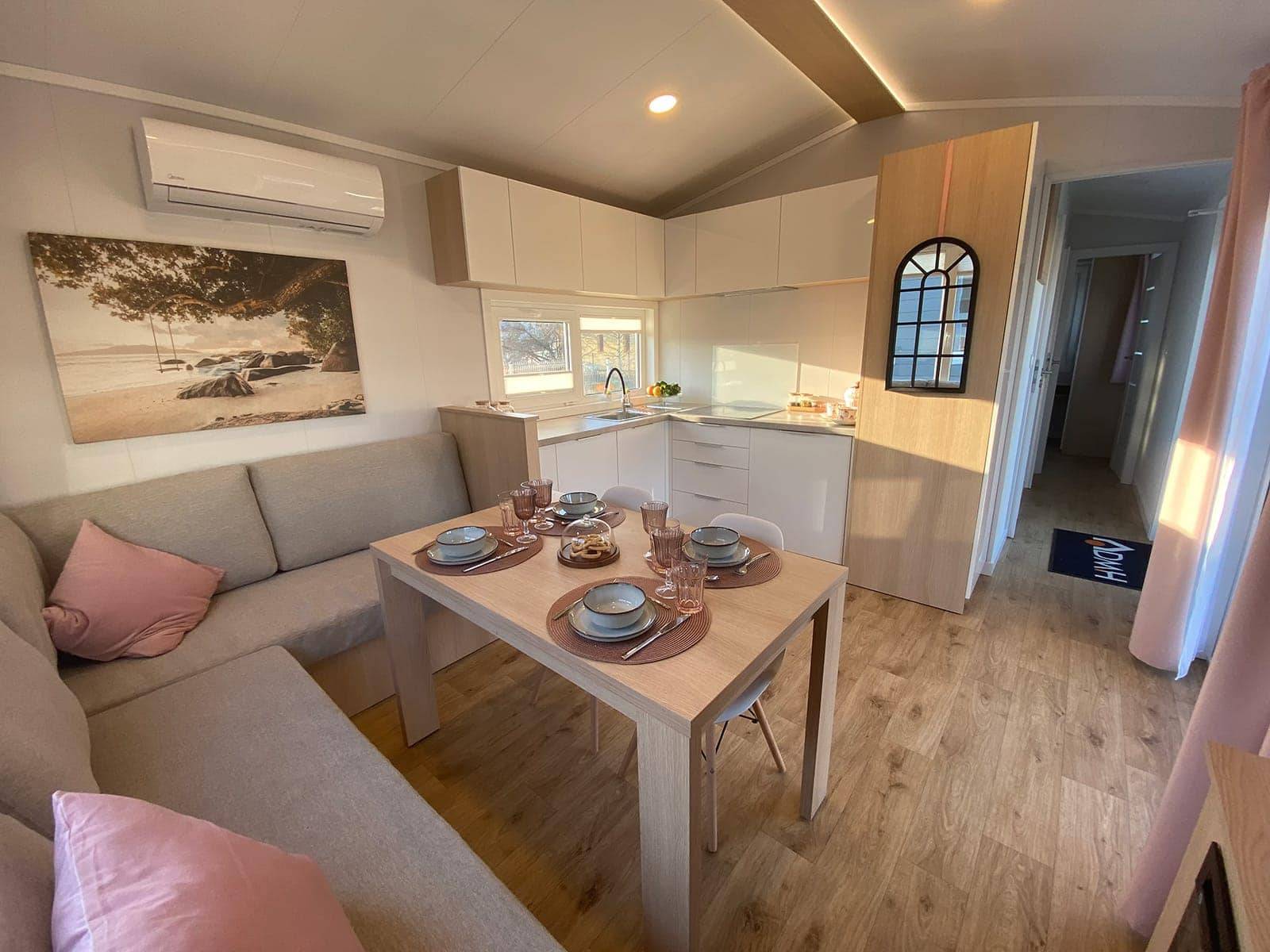

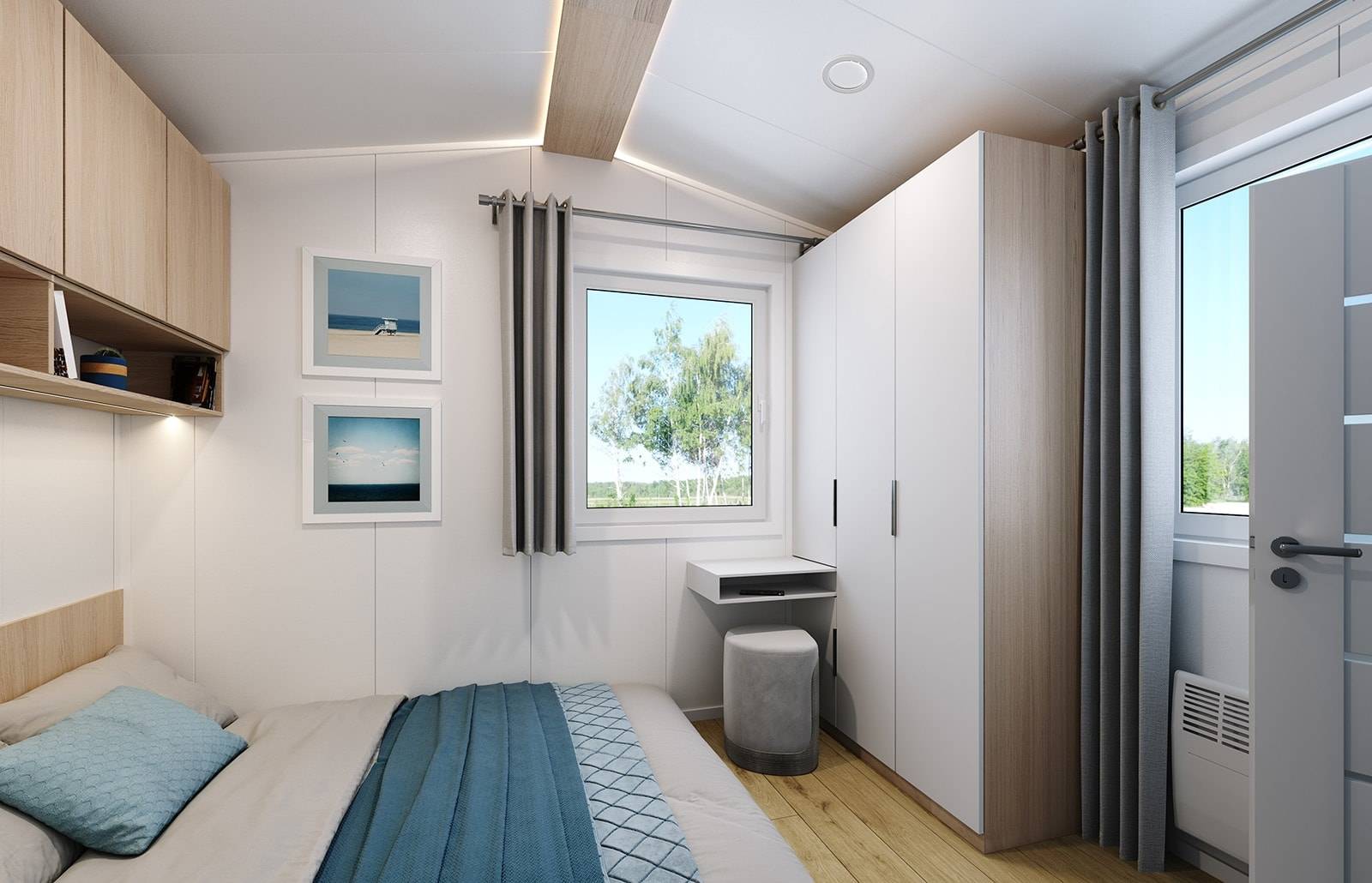

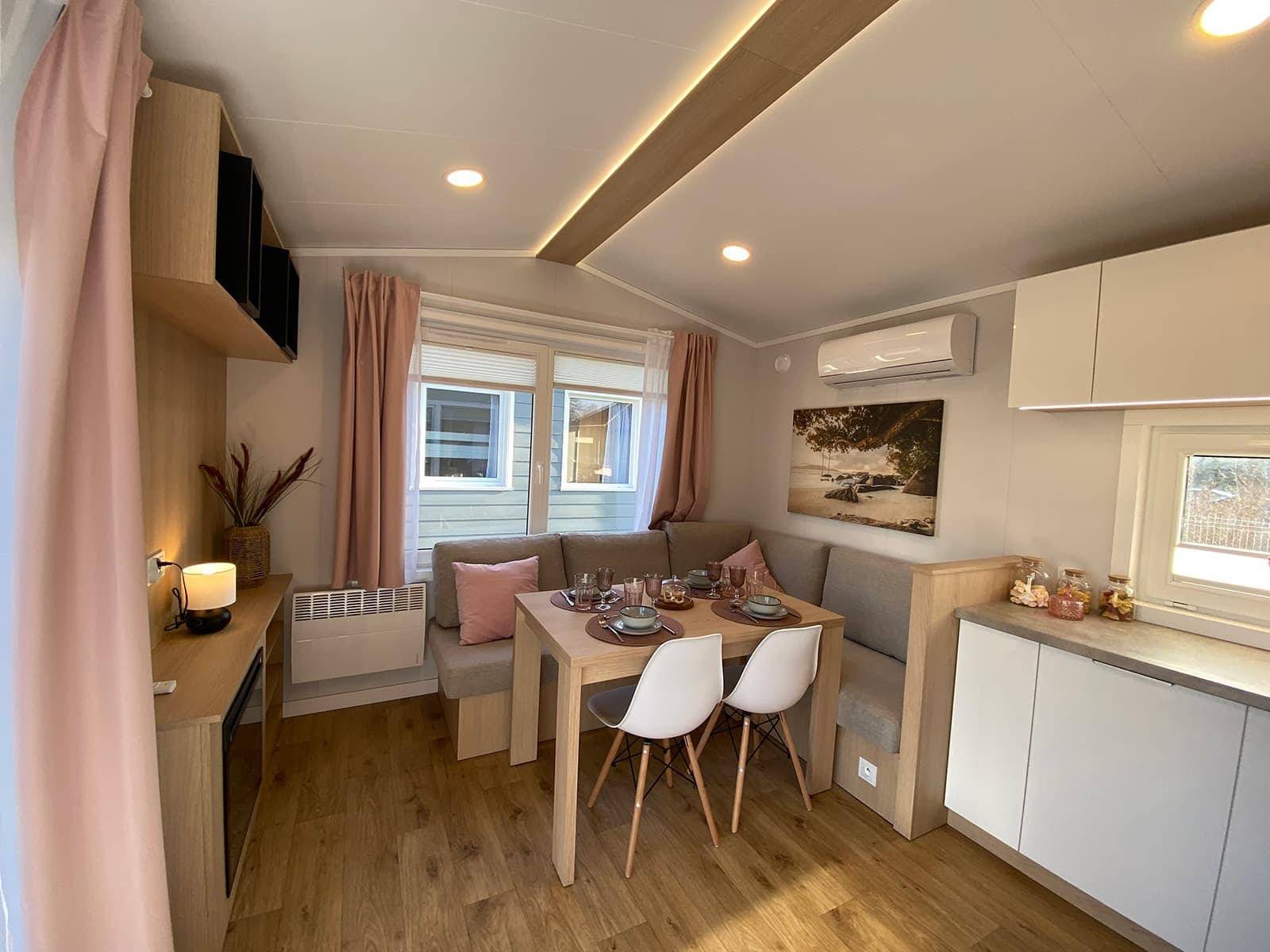

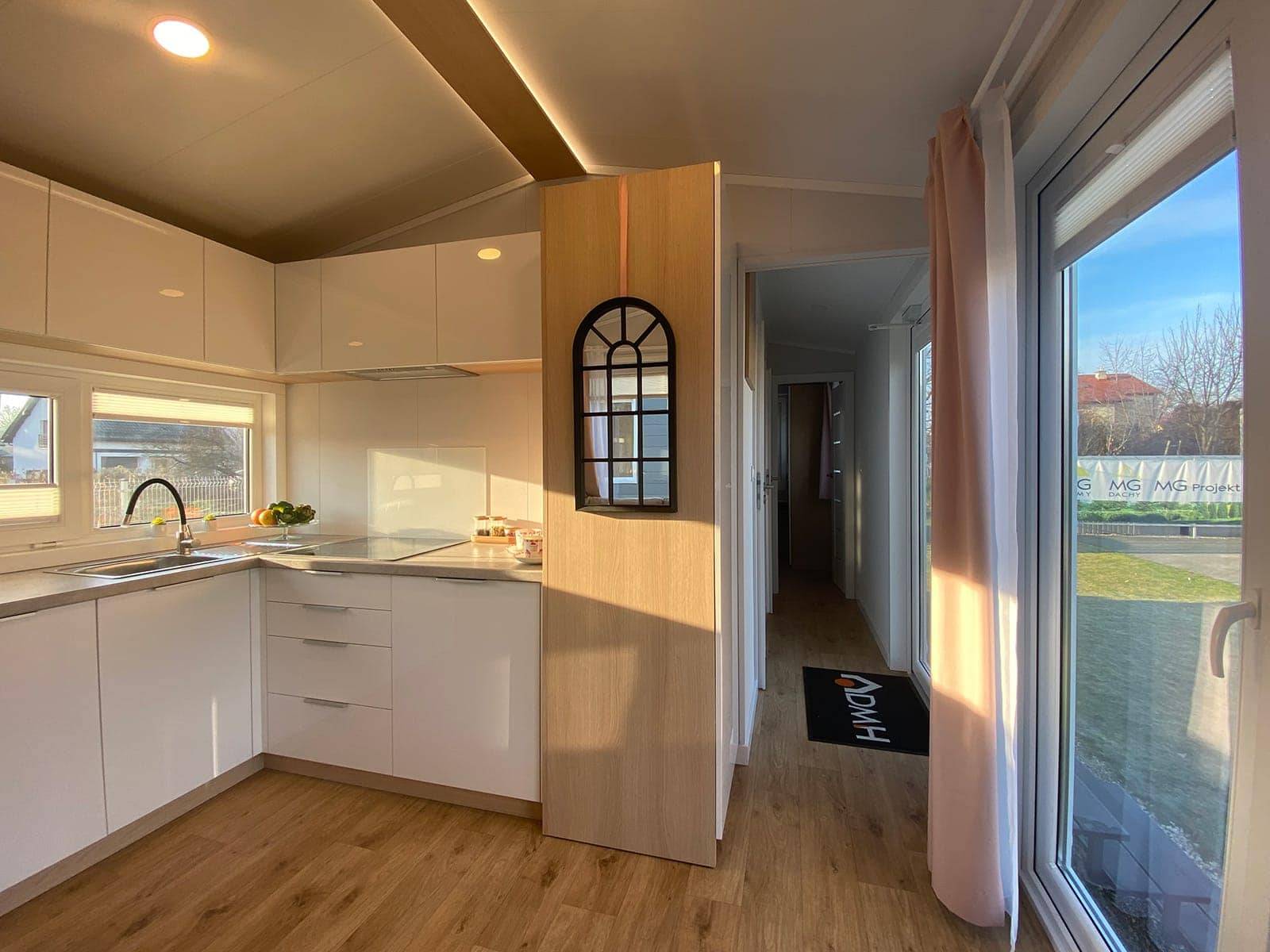

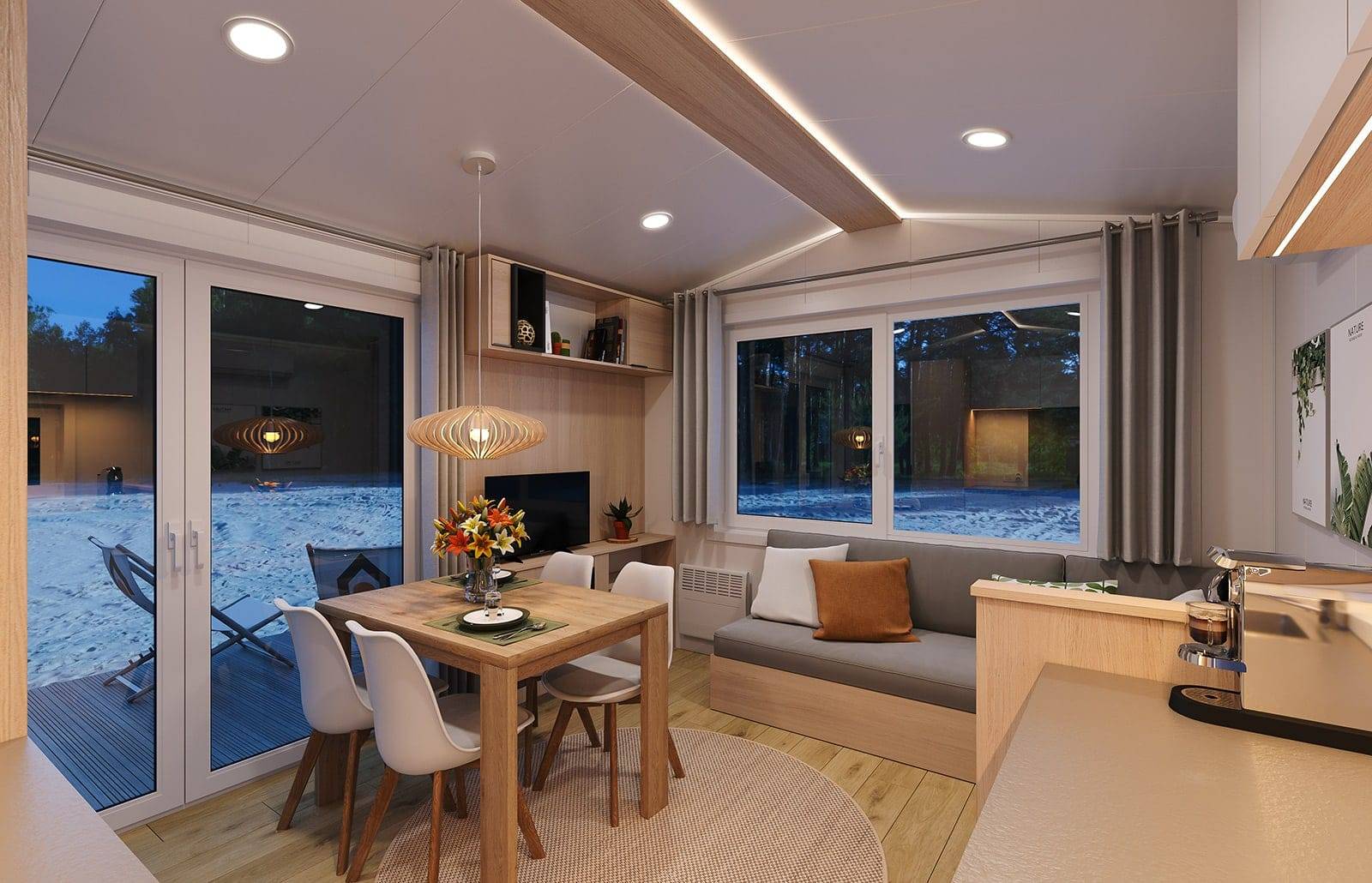

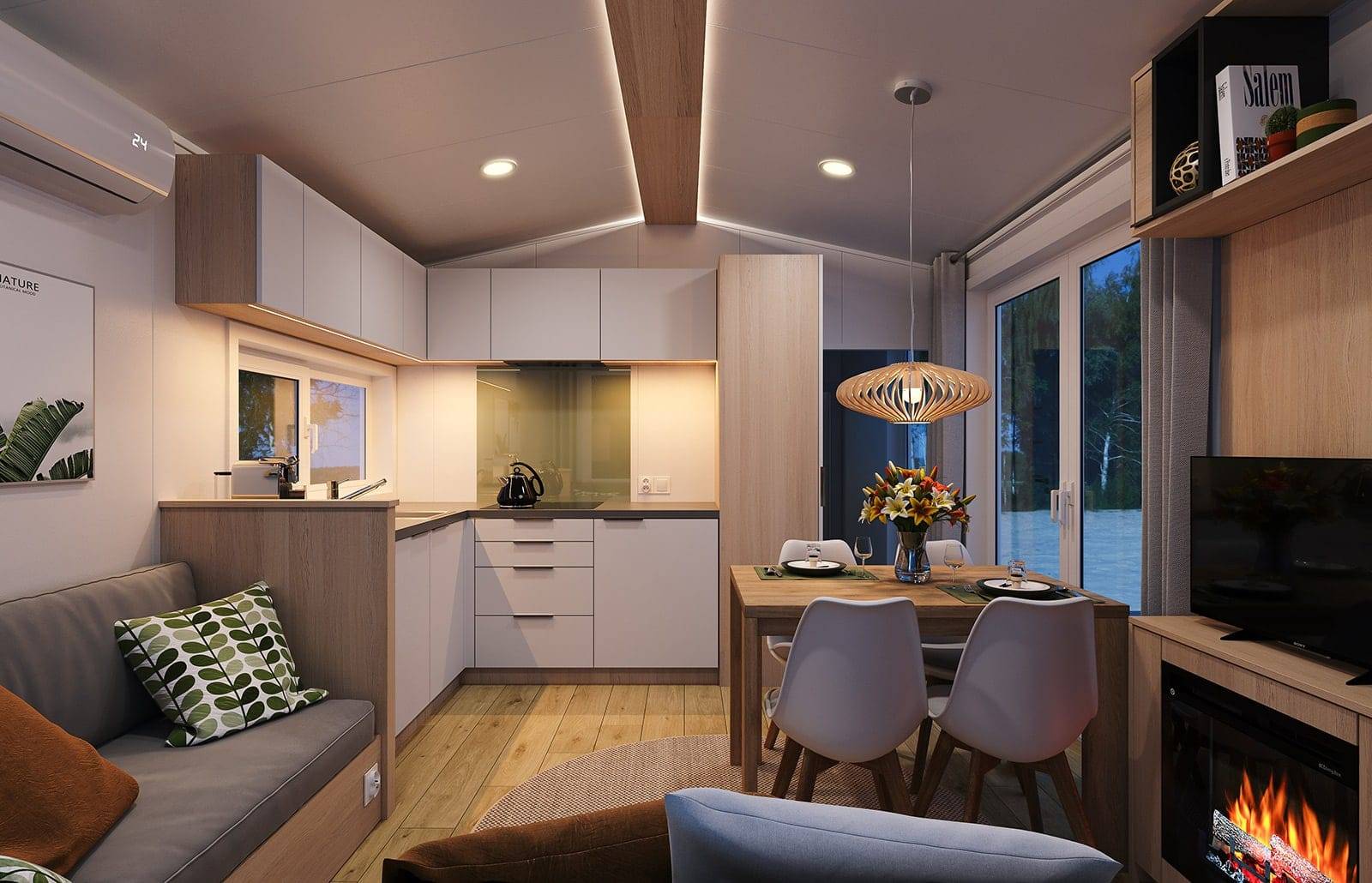

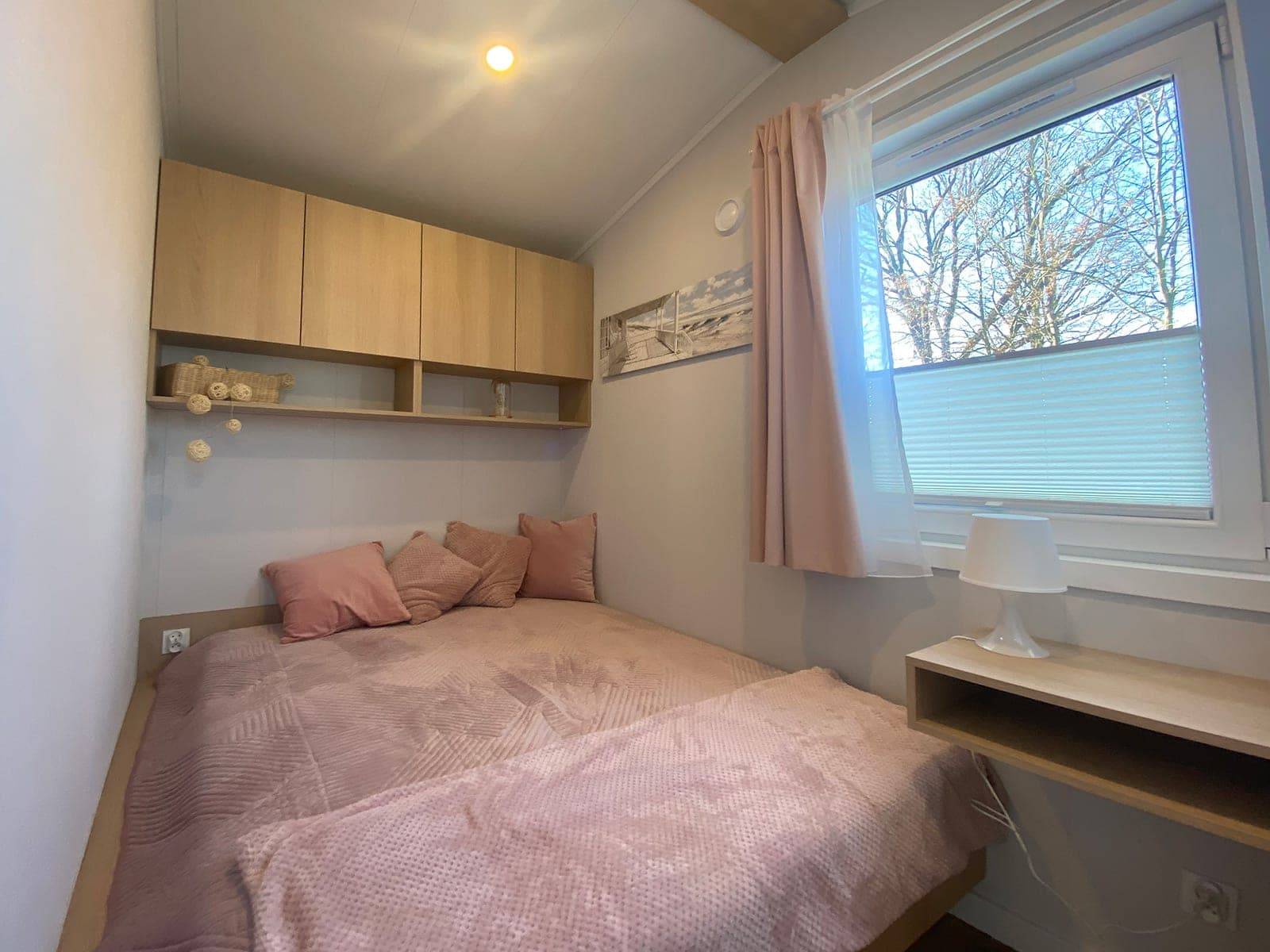

A day zone with a living room and kitchenette, bedrooms and a bathroom — designed practically and ergonomically. The interior is fully finished, on request fully furnished.
Specifications
| External dimensions | 9.5 × 3.5 m / 10.5 × 3.5 m |
|---|---|
| Usable area | 33–36 m² |
| Persons / beds | 4 + 2 |
| Roof pitch | 12° (optionally more) |
| Structure | steel-timber (C24 timber) |

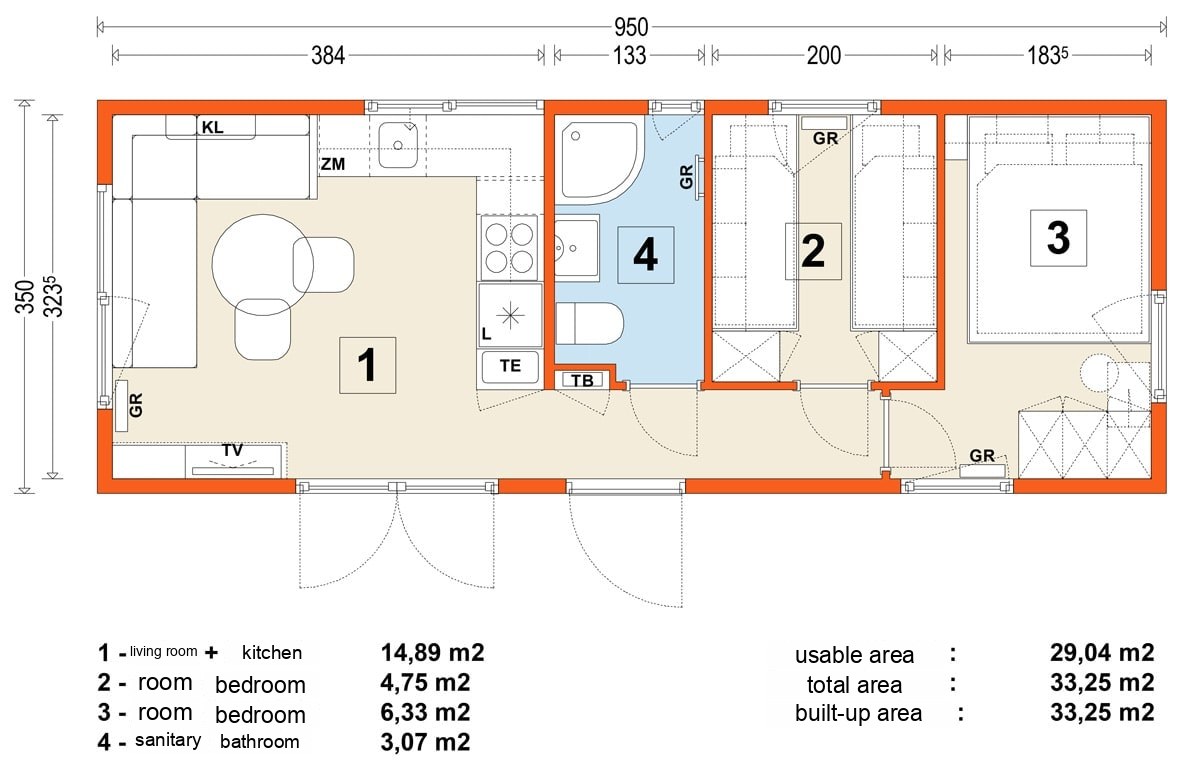

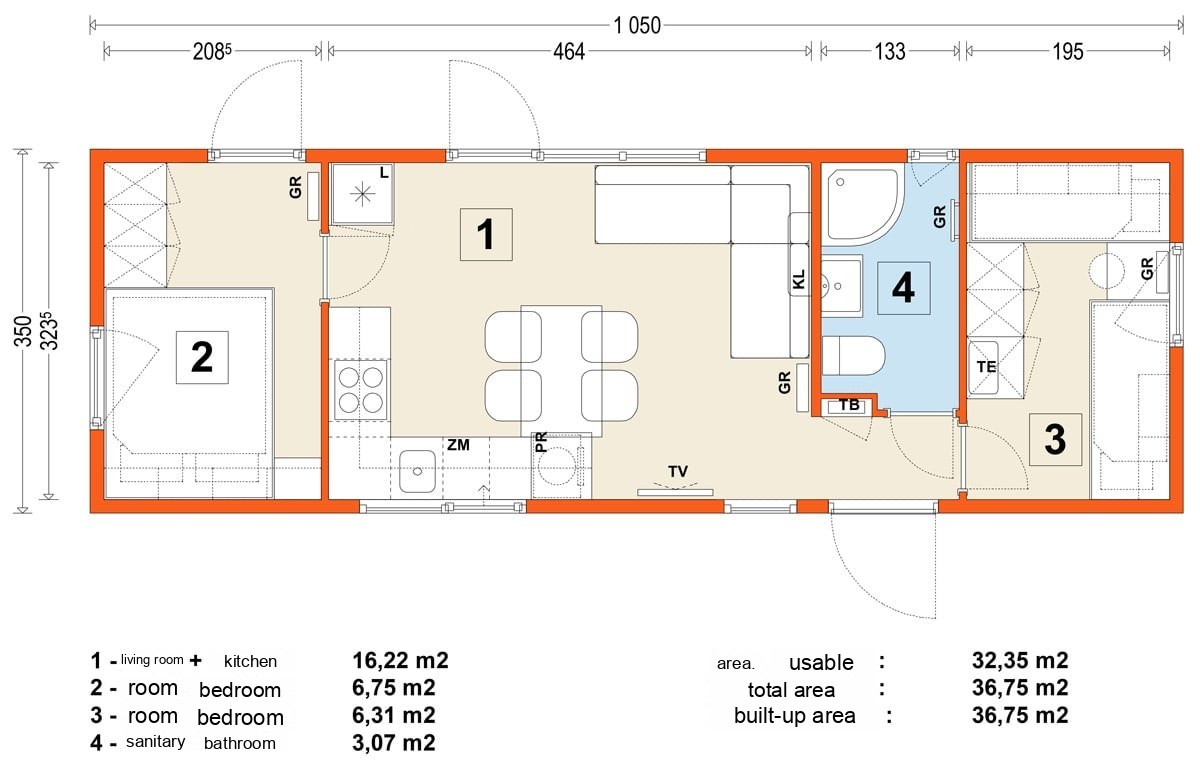

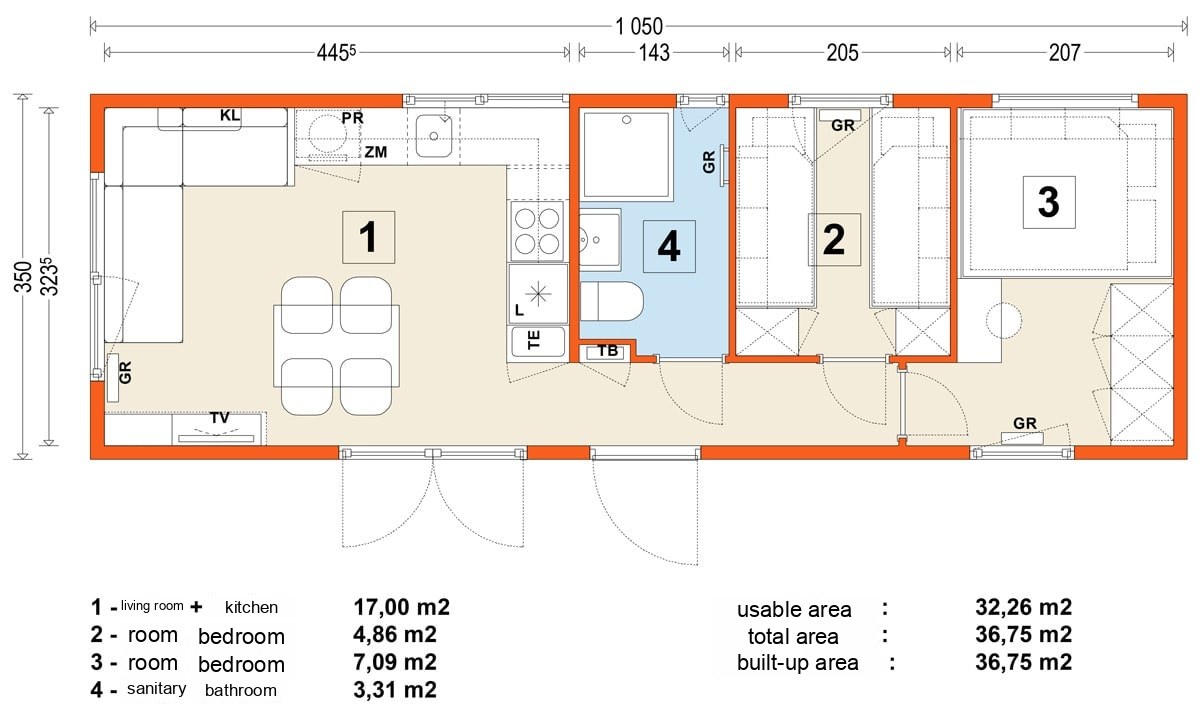

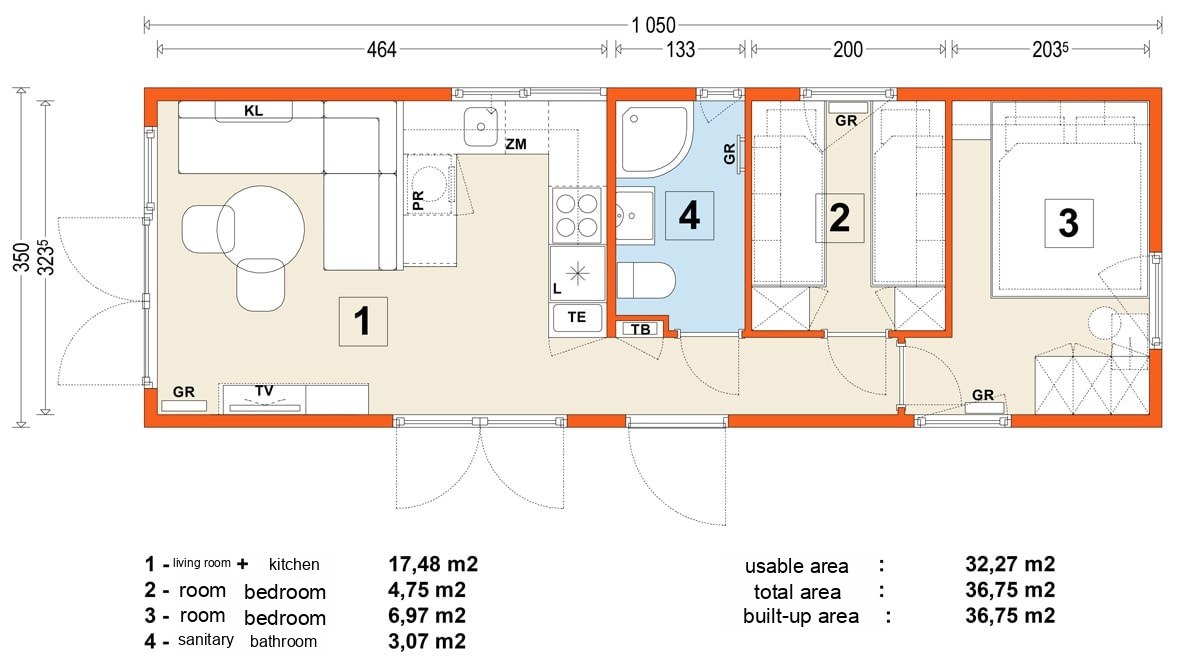

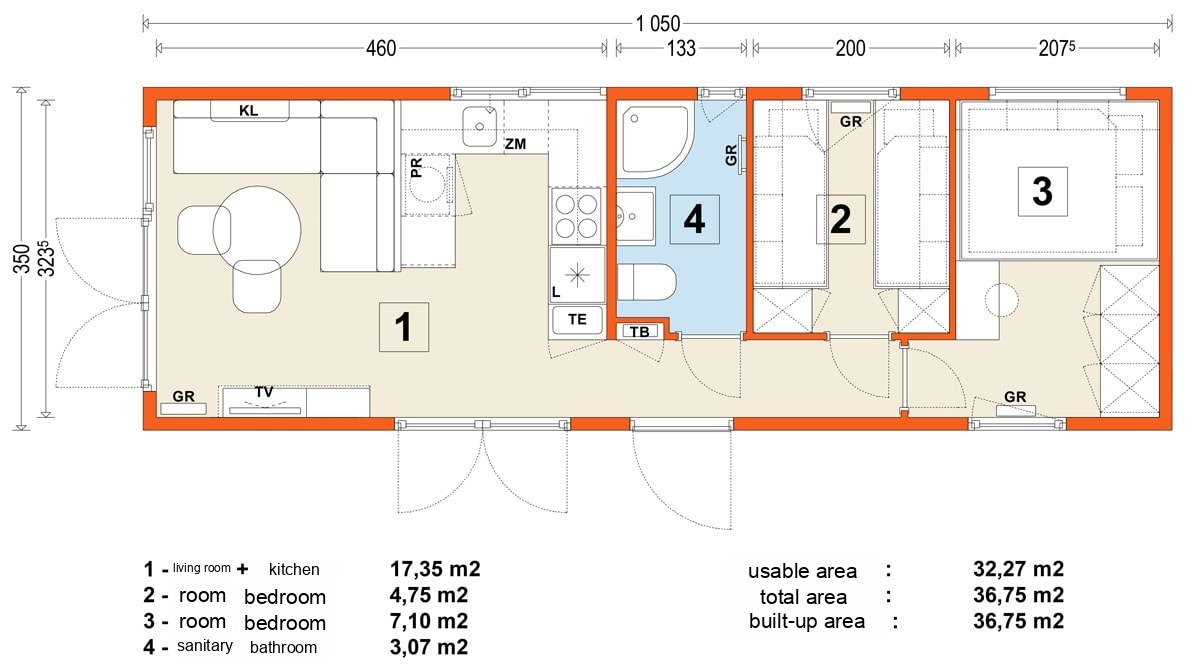

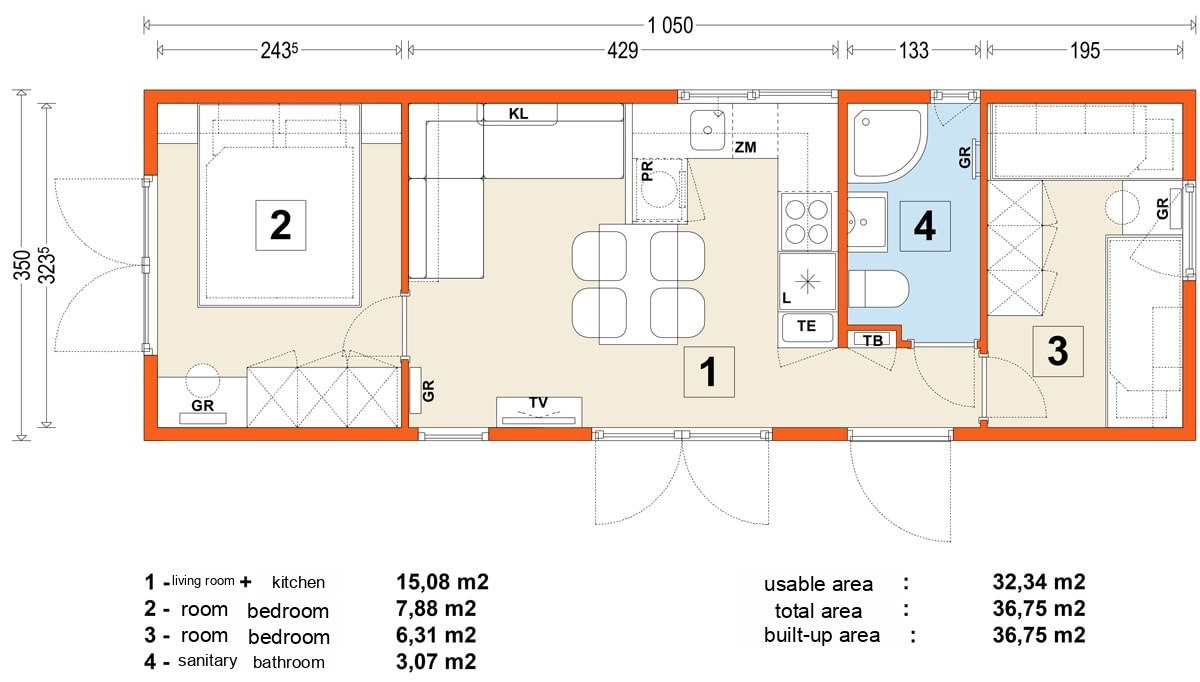

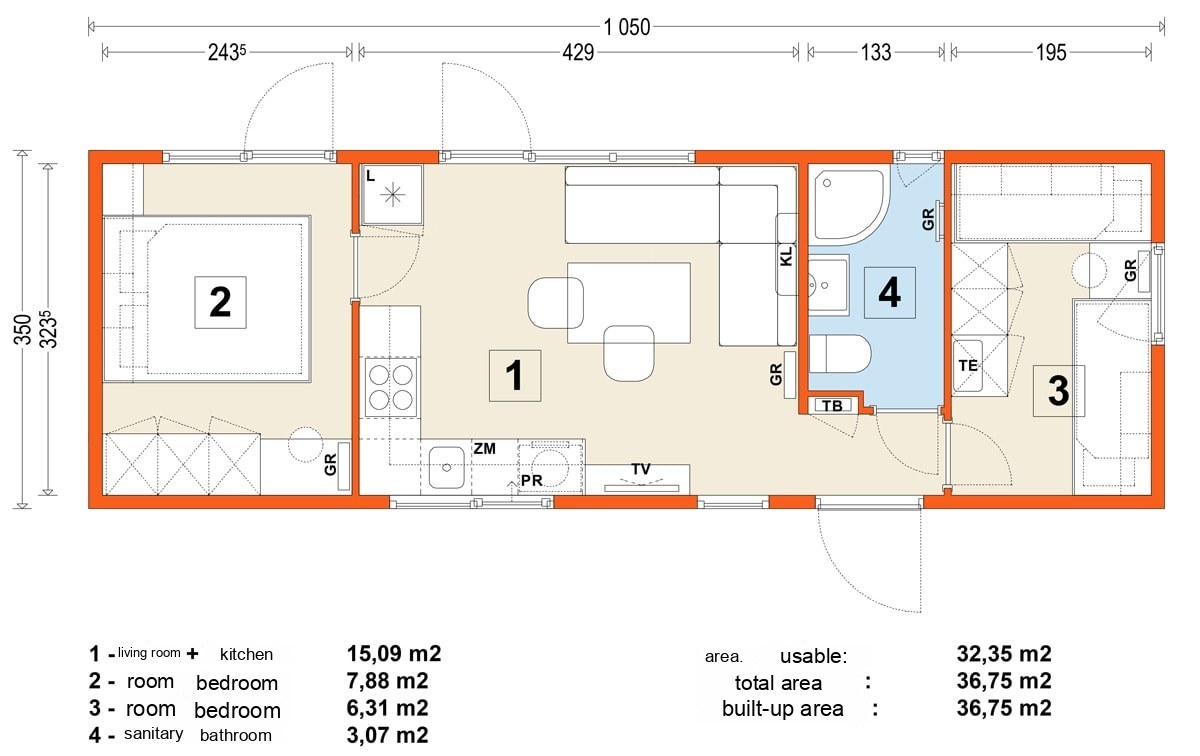

Floor plans
Equipment variants
We offer our mobile homes in three finish standards:
- Basic — the base variant with complete utilities, but no furniture.
- Comfort — a variant with a fitted bathroom and kitchen (kitchen units, sanitary ware, appliances), but no furniture in the rooms.
- Premium — a completely finished and furnished house — full furniture and appliances in every room.
BASIC
Basic house finish and equipment standard
- Steel-and-timber house structure — a welded, hot-dip galvanised steel floor frame; floor, walls and roof from kiln-dried Scandinavian C24 timber
- Two-layer MFP 22+15 mm tongue-and-groove floor

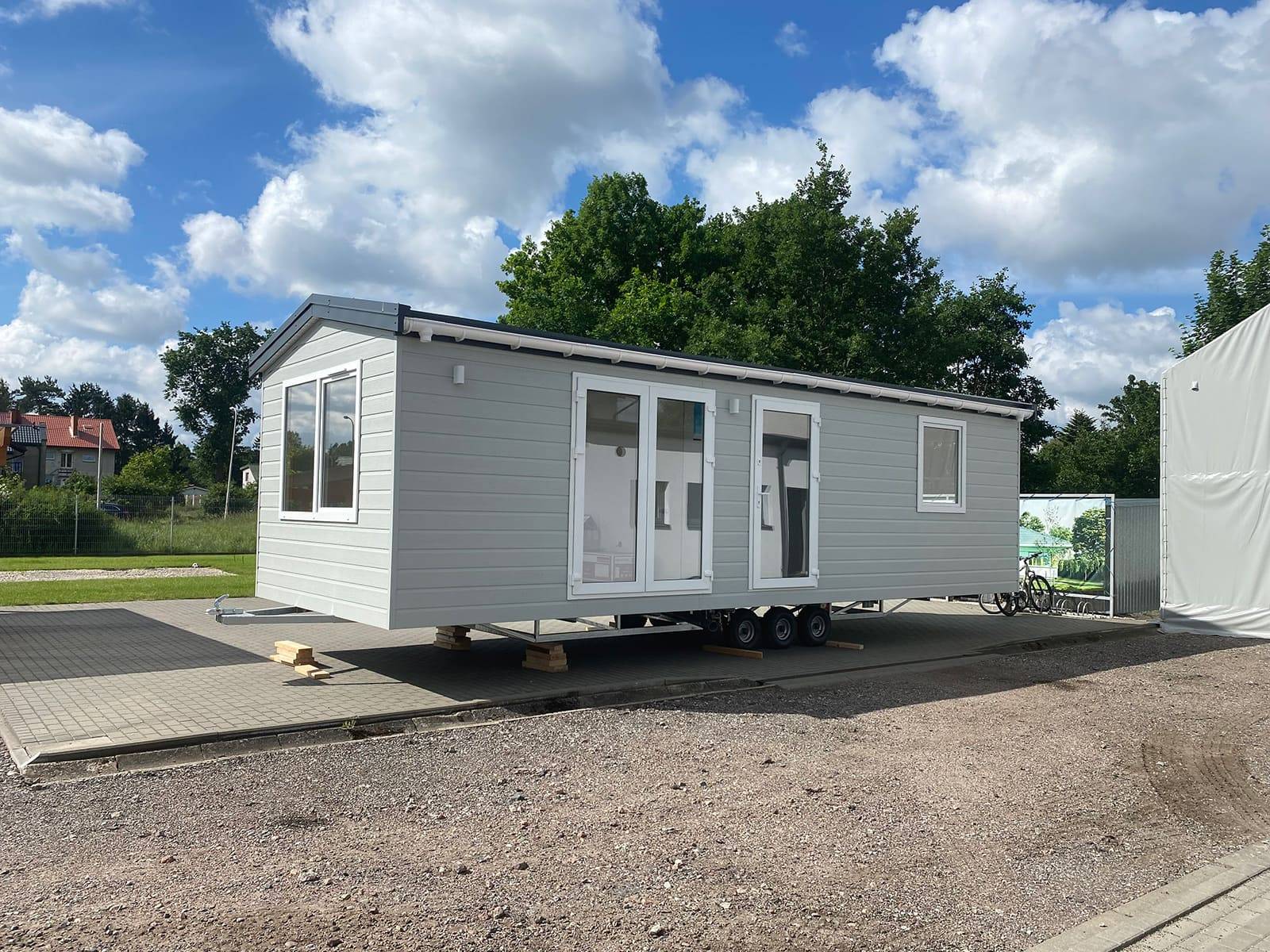

- Axle(s) and wheels for transport
- Waterproofing, vapour barrier and vapour-permeable membrane in the walls, roof and floor
- Thermal insulation: summer variant — 15 cm of mineral wool in floor and roof, 10 cm in walls; year-round variant — 20 cm in floor, 20/25 cm in roof, 20 cm in walls
- Roofing from metal tiles or standing-seam sheet (depending on model), sheet-metal trim from plastic-coated sheet, PVC gutters and downpipes
- Double-glazed PVC windows (optionally triple), 6-chamber frames, with micro-ventilation for air circulation
- Sliding terrace door with a mobile post
- Entrance door — glazed PVC with double locking or insulated steel with double locking
- Internal window and door trims with PVC strips
- Internal MDF veneer doors with an adjustable frame
- Highly abrasion-resistant vinyl flooring — contract grade (optionally vinyl planks)
- PVC skirting boards
- Ceiling cornices from lacquered MDF or timber
- Internal wall cladding with PVC panels (optionally Strama / Forestia)
- Exterior façade Vox Vifront siding (optionally Vinylit, Vox Kerafront, Cedral, timber or sheet-metal façade)
- Electrical preparation for electric radiators and an electric water heater
- Compact-type toilet (optionally wall-hung — Geberit), shower tray, connections for sanitary ware and fittings
- Distribution board with circuit breakers
- External inlets for water, sewerage and the house's electrical supply, with preparation for draining water
- Mechanical ventilation in the bathroom and kitchen — ducting and wiring
- Internal LED lighting
- Outlets for external wall lighting
- TV antenna cable led outside the house
- Preparation for connecting a heating cable for the water pipe
COMFORT
Basic standard plus:

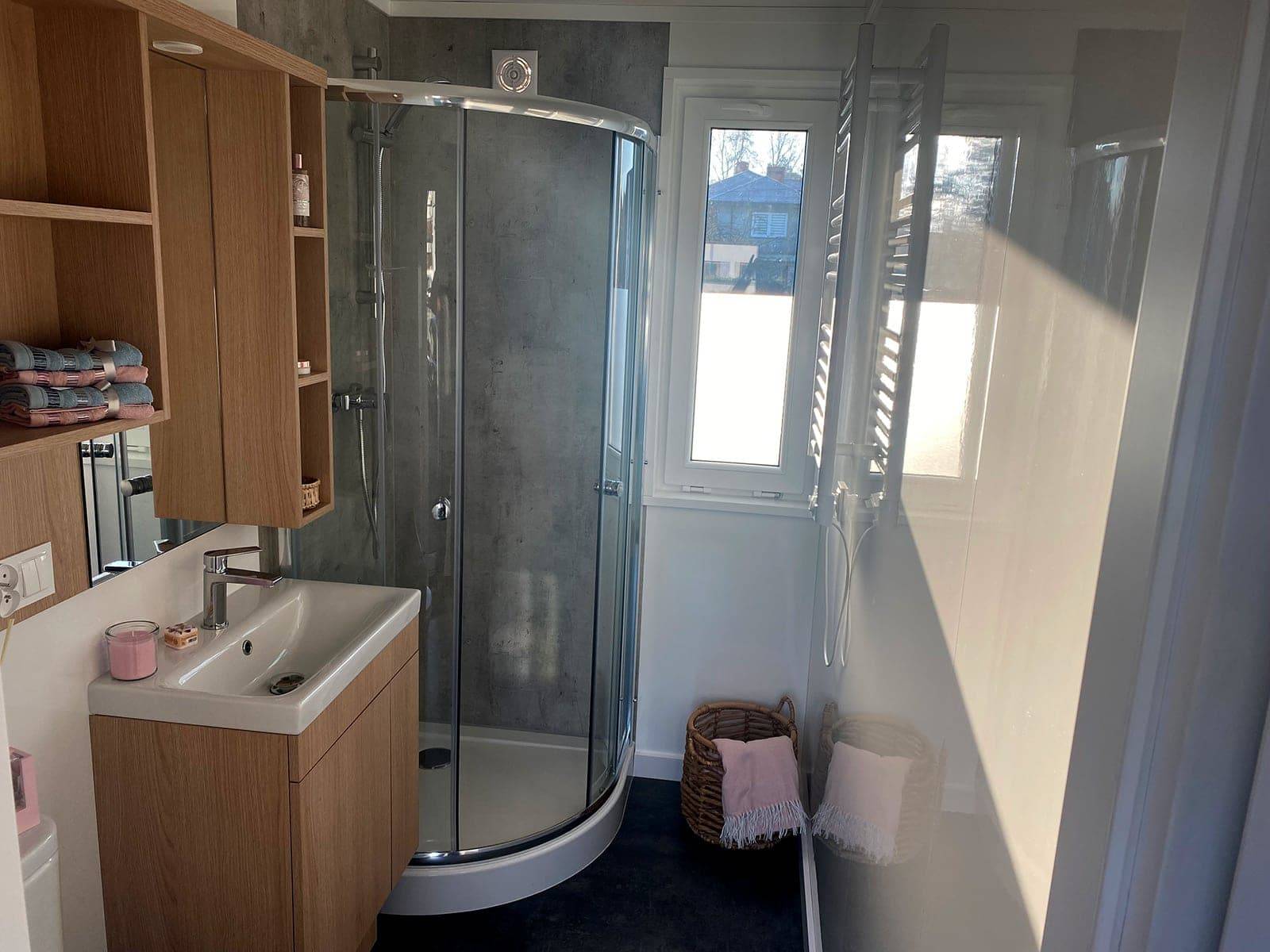

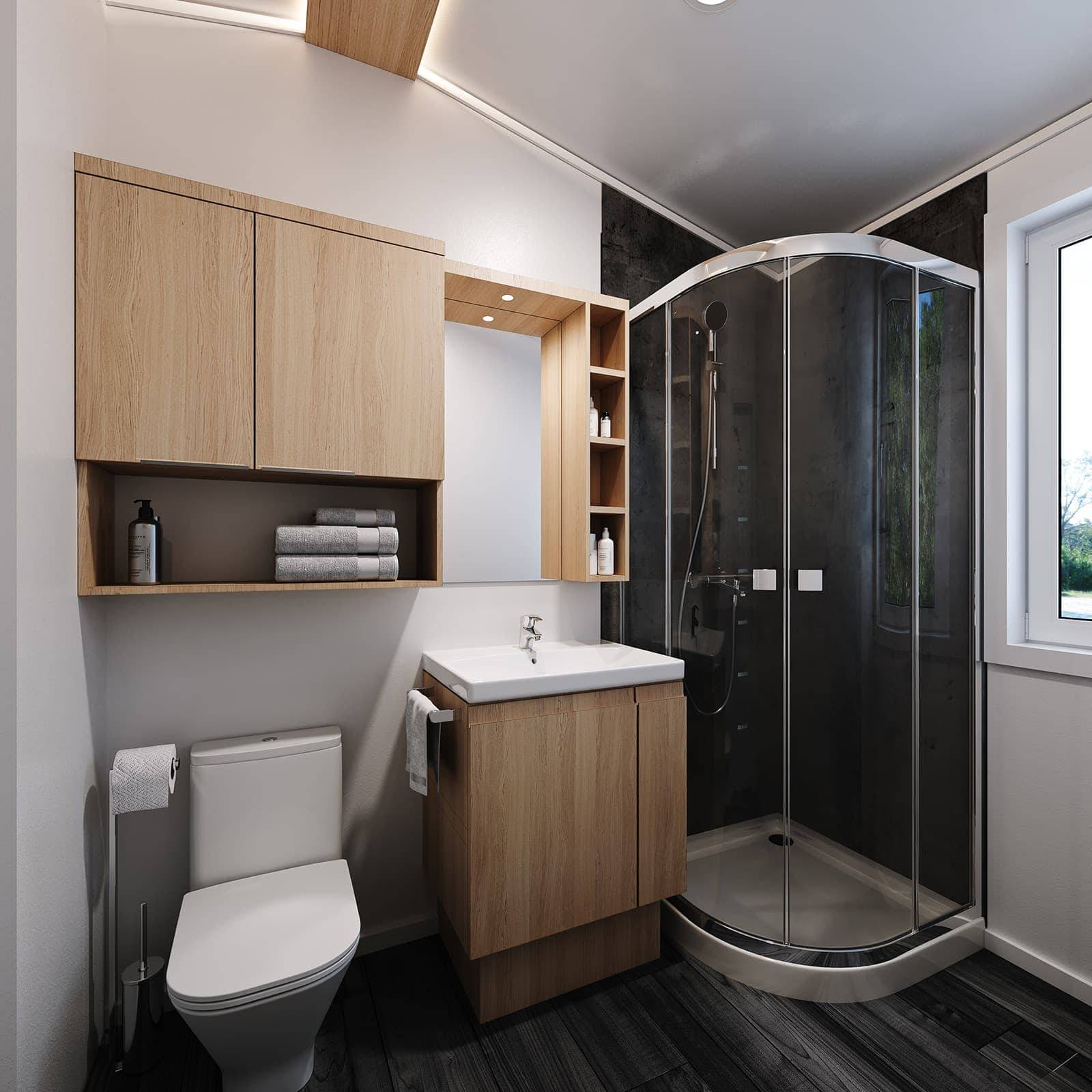

- Shower enclosure — size according to house model
- Washbasin with tap, lower cabinet, mirror and LED backlighting
- Extractor fan in the bathroom
- 50 l electric water heater in cabinet cladding (optionally 80/100 l)
- Electric ladder radiator / towel dryer in the bathroom

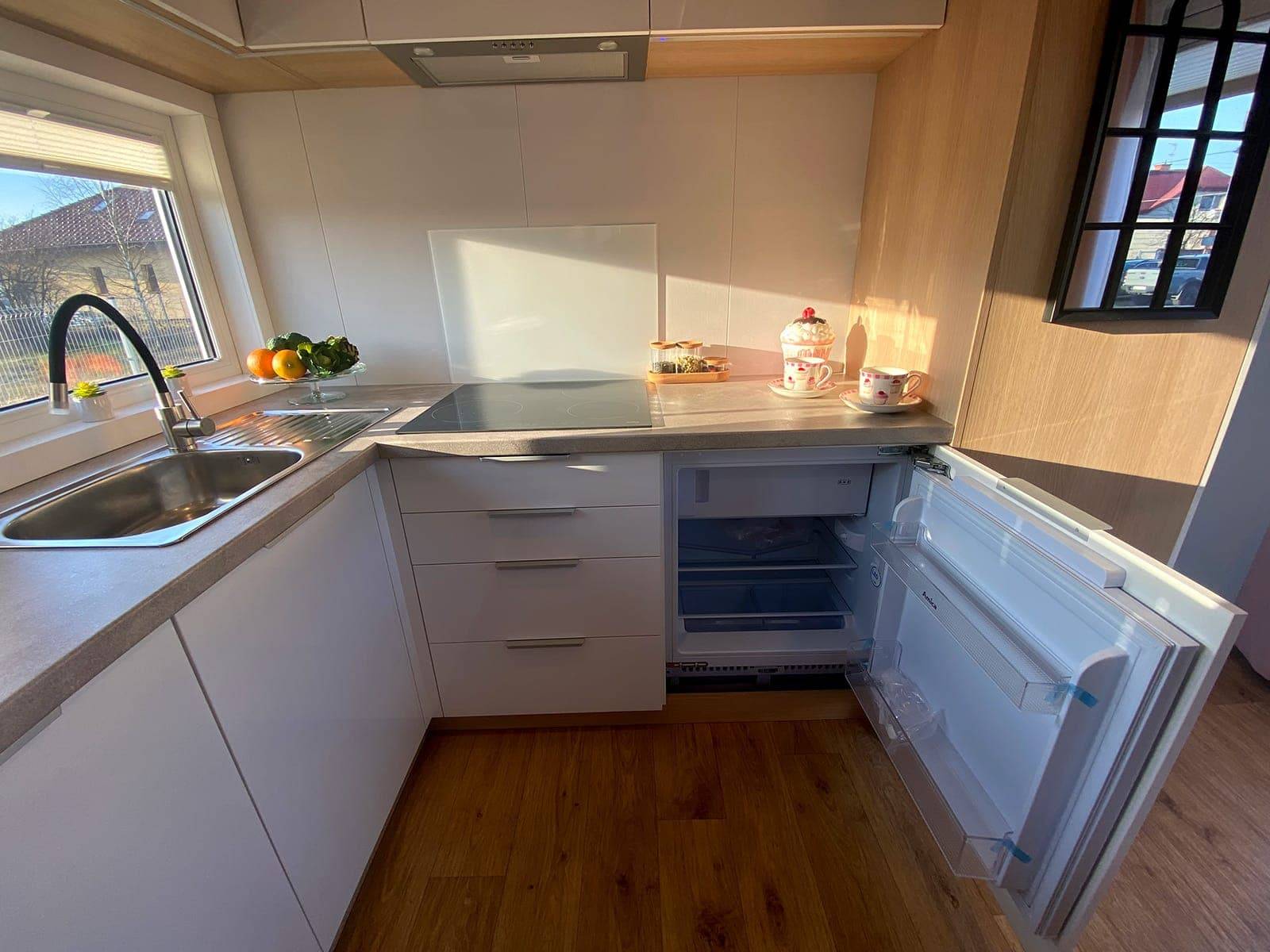

- Upper kitchen cabinets in standard veneer
- Kitchen sink with tap
- Built-in under-counter fridge with freezer
- Two-plate electric hob
- Built-in extractor hood in the upper cabinets
PREMIUM
Comfort standard plus:
- Dining table with chairs

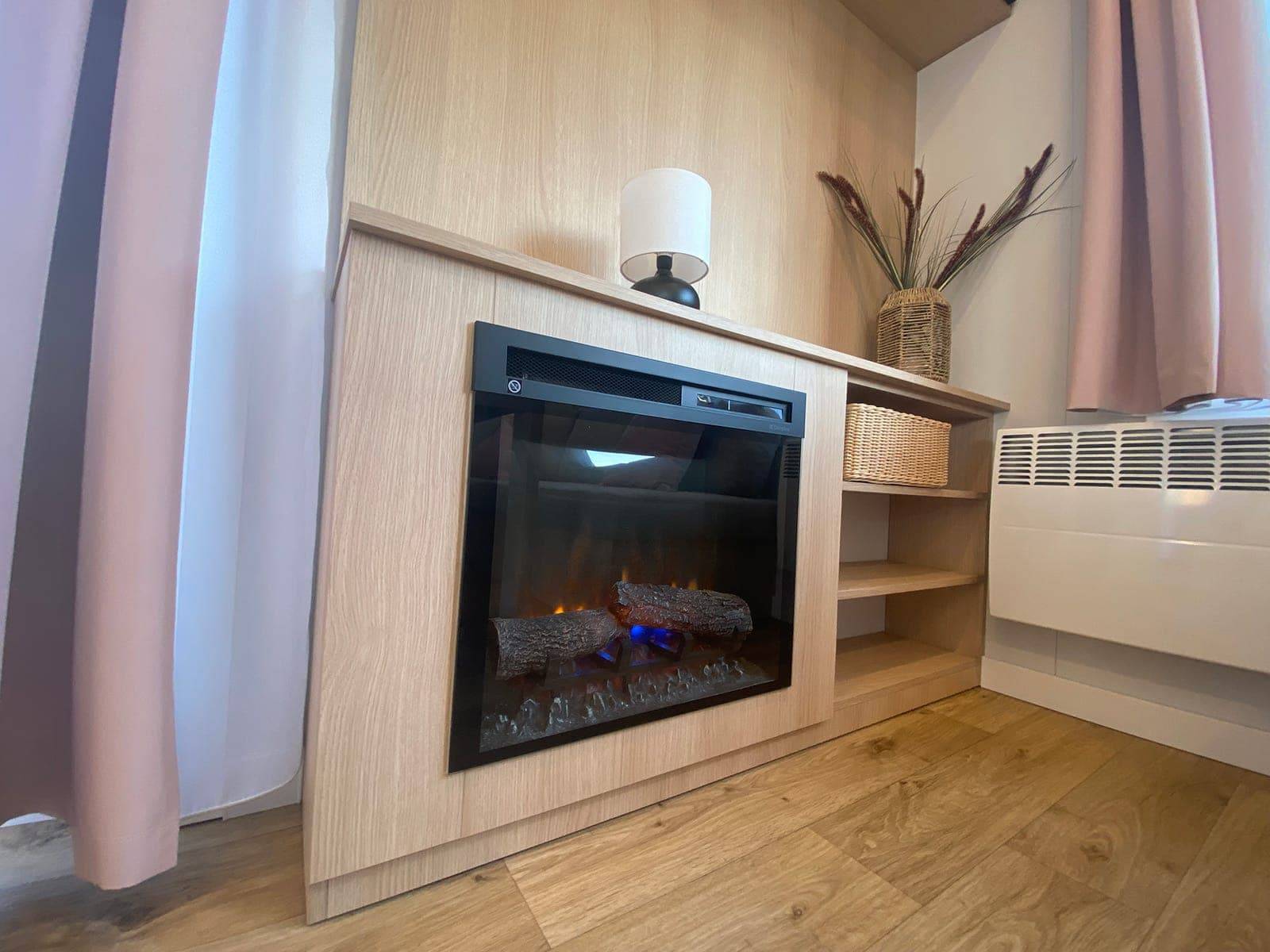

- TV cabinet in the living room
- Bed in the master bedroom with a mattress and a storage chest for bed linen

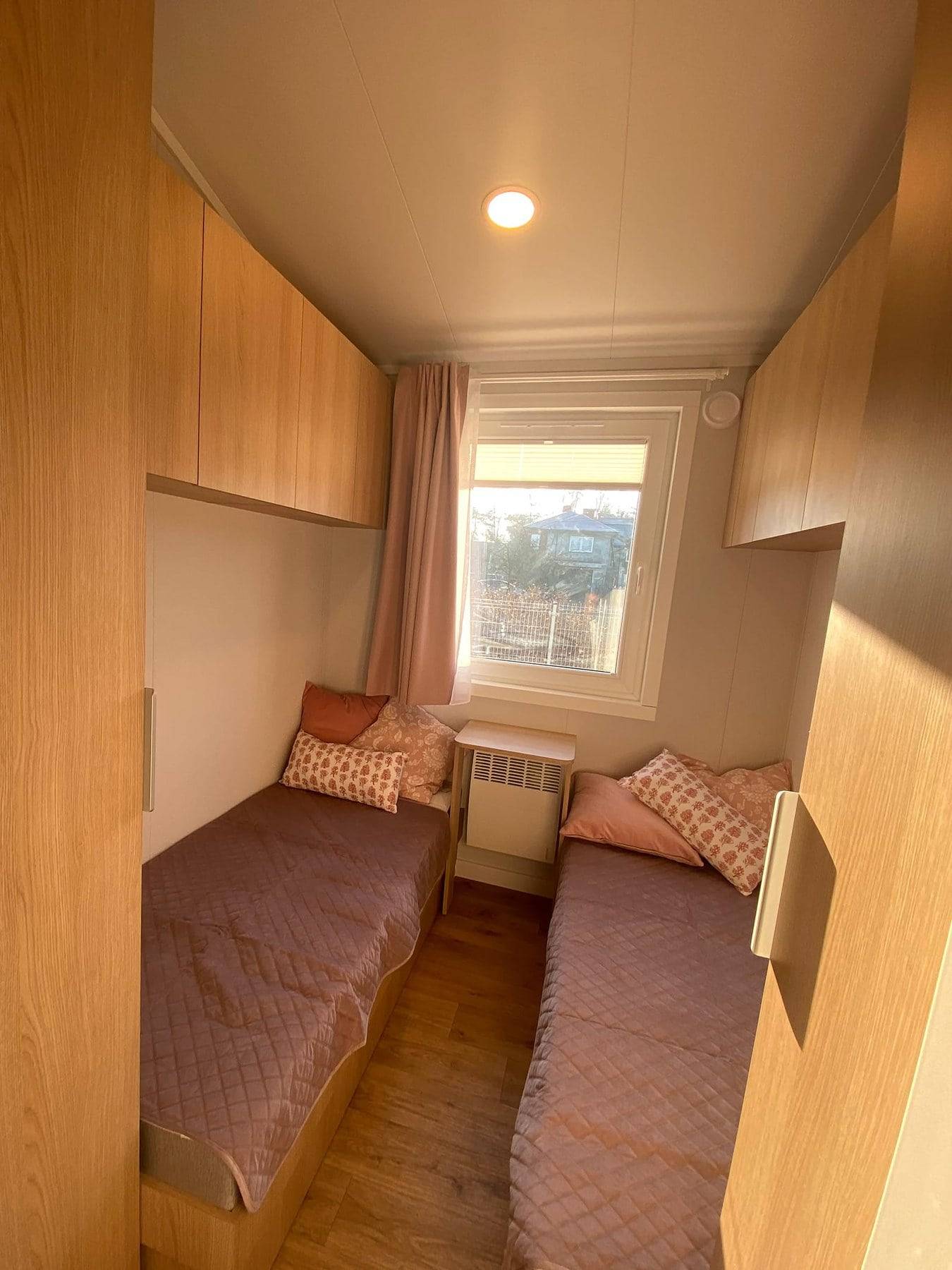

- Beds in the children's bedroom with mattresses

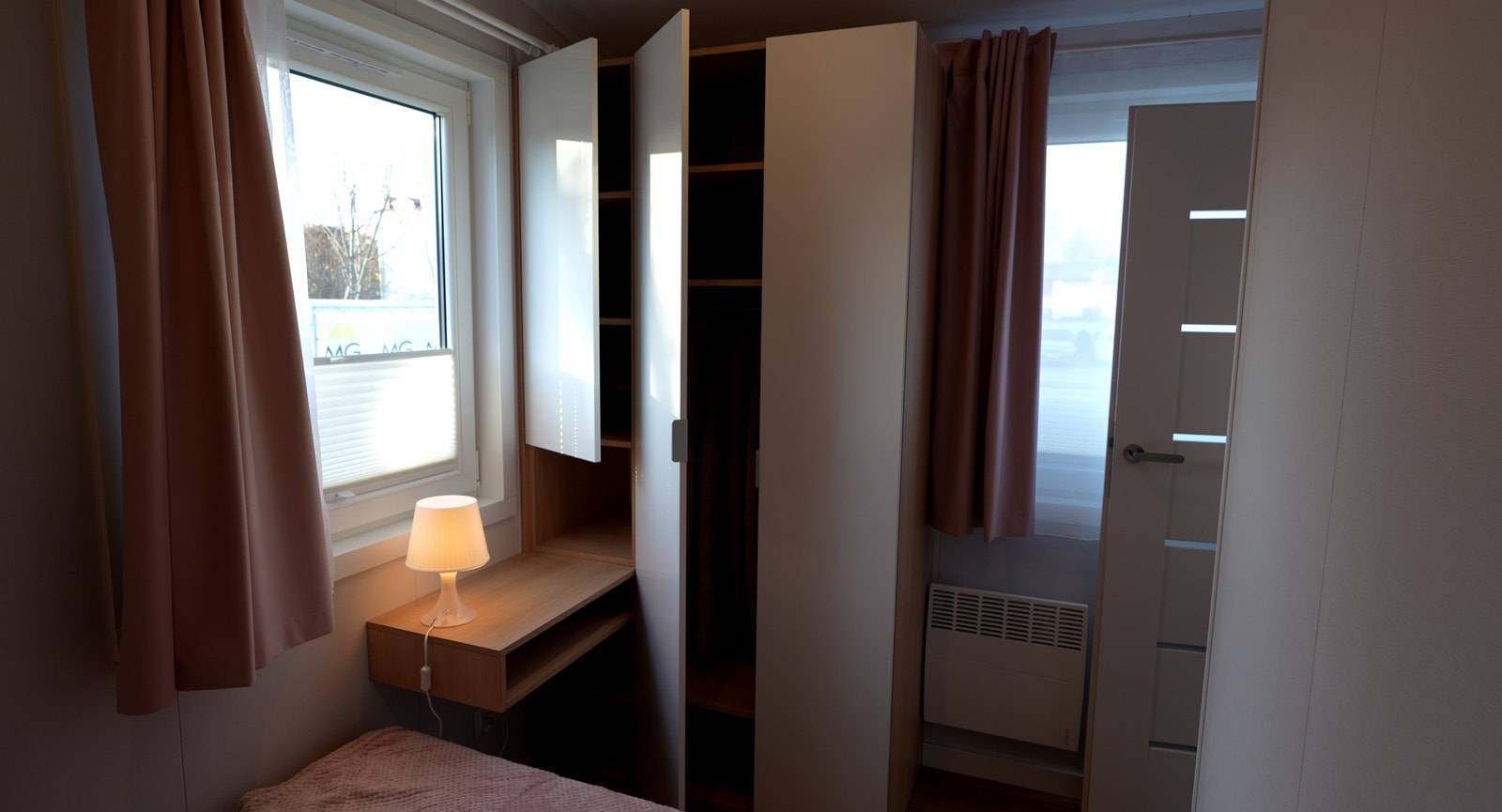

- Wardrobe in the master bedroom
- Wardrobe in the children's bedroom
- Bedside tables and chairs in the bedrooms
Additional equipment
- Changing the summer variant to year-round (thicker insulation)
- Changing the façade to Vinylit, Cedral or sheet-metal panels
- Changing the internal cladding to Strama or Fibo
- Changing the floor to vinyl or timber planks (engineered board)
- Changing windows to triple glazing
- Changing heating from electric radiators to underfloor infrared film
- Fireplace with a double stainless-steel Poujoulat flue
- Upgrading kitchen / bathroom equipment: dishwasher, larger fridge, oven, larger induction hob, washing machine
- Curtain rails, curtains, pleated blinds, insect screens
- Air conditioning with a heating function (air-to-air heat pump)
- Integration of the house with a photovoltaic power plant
- Mechanical ventilation with point heat recovery
- Corner sofa set in the living room (depending on house model)
- Many more accessories can be found on the Tatradomy website
Thanks to an extensive list of optional equipment you choose and design the house yourself in comfort — picking colours, materials and solutions to your own taste. Configuring the house is a simple and pleasant process that results in a tailor-made home. Our designers and advisors will guide you through the whole process and advise you.
Construction and installations
Floor construction
- Final floor: vinyl covering / vinyl panels / MDF-wood panels
- MFP structural board 22 mm + PE foil
- Wooden floor frame of C24 timber (2× 95×45 / 195×45 mm)
- Thermal insulation: mineral wool 20 cm
- Steel frame of closed profiles (if included)
- Steel anti-rodent protective mesh 6×6 mm + wind membrane
- Concrete point foundation + ventilated gap between floor and ground
Wall construction
- Interior lining: plasterboard / wooden cladding / Strama panels
- Vapour barrier, optionally an installation pre-wall, OSB board (if a substrate is needed)
- Thermal insulation mineral wool 20 cm
- Wooden double frame 2× 95×45 mm + steel frame (if present)
- Wind membrane, battens 5×5 cm, ventilated gap
- Exterior cladding: Rhombus wood / facade board / standing-seam sheet metal / Vinylit
Ceiling construction
- Final upper-floor flooring + MFP structural board 22 mm + PE foil
- Acoustic insulation mineral wool 120/150 mm
- Wooden C24 ceiling joists + steel module frame (if present)
- Decorative C24 ceiling beams, vapour barrier
- Ground-floor ceiling lining: wooden cladding
Roof construction
- Covering: standing-seam sheet metal / modular sheet metal
- Battens 5×5 cm, counter-battens 2.5×5 cm, wind membrane
- Thermal insulation mineral wool 20–25 cm
- Wooden C24 structure (2× 95×45 mm) + steel frame (if present)
- OSB board, vapour barrier
- Soffit lining: plasterboard / Fermacell / wooden cladding / Strama
Installations
- Complete electrical installation 230/380 V with a circuit-breaker distribution board, sockets, switches and ceiling lighting points
- Plumbing with supply and waste drainage under the floor, with water drain-down for winter (in the summer variant)
- Heating to choose from: electric convectors with thermostats, electric underfloor, a gas bottle boiler, or an air-to-water heat pump with radiators or underfloor heating
- Hot water: electric boiler 50/80 l, flow heating in a gas boiler, or a heat pump
- Ventilation: summer variant – venting via grilles + window intakes; year-round – mechanical ventilation with heat recovery (central or wall-mounted recuperators)
- Air conditioning: split with an indoor unit in the living room (optional)
- Smart home: alarm and control of heating, hot water and ventilation via a mobile app (optional)
Model variants
10 variants
10 functional layout variants in two dimensions (9.5 × 3.5 and 10.5 × 3.5 m).
FAQ
What area does mobile home C have?
Built-up area around 35 m², usable 33–36 m².
How many variants does it have?
10 functional layout variants.
